6.2 Requirements of arrangement space of the unit
1. To ensure adequate airflow entering the condenser,
the influence of descending airflow caused by the
high-rise buildings around upon the unit should be taken
into account when installing the unit.
2. If the unit is installed where the flowing speed of air is
high, such as on the exposed roof, the measures
including sunk fence and Persian blinds can be taken, to
prevent the turbulent flow from disturbing the air entering
the unit. If the unit needs to be provided with sunk fence,
the height of the latter should not be more than that of
the former; if Persian blinds are required, the total loss of
static pressure should be less than the static pressure
outside the fan. The space between the unit and sunk
fence or Persian blinds should also meet the requirement
of the minimum installation space of the unit.
3. If the unit needs to operate in winter, and the
installation site may be covered by snow, the unit should
Installation space (mm)
A
B
C
D
E
≥800
≥2000
≥2000
≥800
≥300
Table 6-2
NOTE
After installing the spring damper, the total height of the unit will
increase by 135mm or so.
Front view
A
B
C
Left view
A
B
C
D
E
F
G
H
I
Model
ECH060N
2220
1055
1325
234
210
470
1105
958
425
ECH030N
1870
1000
1175
204
200
470
788
880
530
ECH090N
3220
1095
1513
286
210
470
2116
1008
F
D
E
Front view
Left view
Top view
C
A
B
6.1.3 ECH090N
G
GI
GI
F
G
Top view

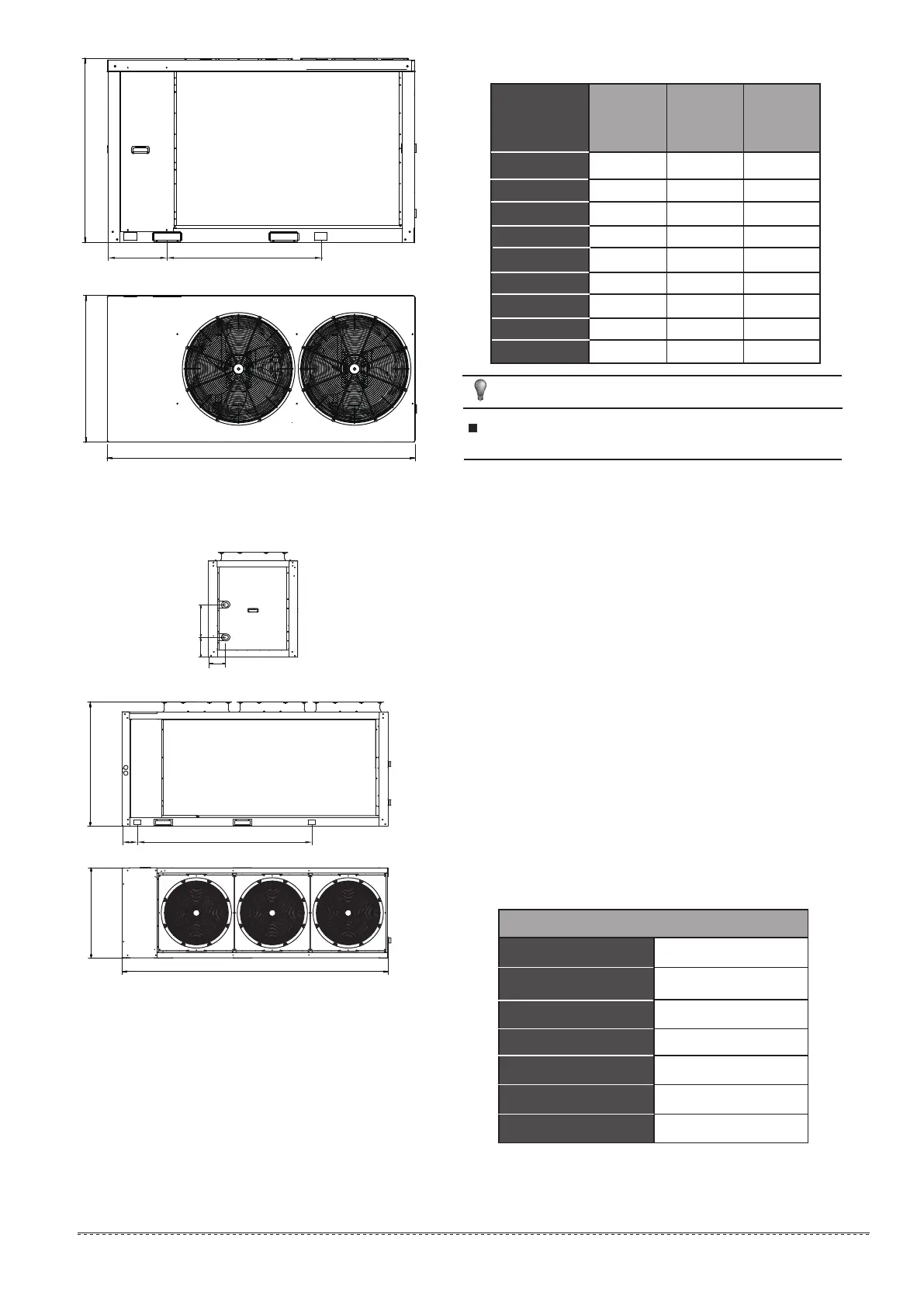

Fig. 6-2 outline dimensional of ECH060N
Fig. 6-3 outline dimensional of ECH090N
≥600
≥6000
180
5
