ESAB Digimig Dual User Manual

25
SECTION 6 REPLACEMENT PARTS
KNOCKOUT OPTIONAL
WATER CONNECTIONS (See Fig. 10)
REAR CONTROL SUPPORT
678802
(2) SPINDLE ASSY.
948259 (See Fig. 9)
POWER CABLE ADAPTOR BLOCK -
674156
1/2-IN.-13 STL. NUT
1/2-IN. LOCKWASHER
(2) 1/2-IN. FLATWASHER
(2) REEL SUPPORT - 634288
Not Illustrated — Accy. Support
INSULATOR RING - 60N90
Key - 28N33
THUMBSCREW - 61351087
FLATWASHER - 64309431
BELLEVILLE WASHER - 950783
* Replace decal if it becomes excessively
worn or lost when replacing panel(s)
 Recommended Spare Parts
Replacement key for Run-Set SW - 32778
(J1) RECEPTACLE - 950762 (19-pin)
C20 CAPACITOR - .1uf, 500 V
(CB) CIRCUIT BREAKER -
950874 
(MSL) POWER ON-OFF SW
634517 
STRAIN RELIEF - 96W76
RUN-SET SW - 950956
(2) GAS INLET CONNECTION - 74S76
(2) GAS SOLENOID VALVE - 2062305 
(2) GAS BULKHEAD ADAPTOR - 58V58
(VR) VOLTAGE REGULATOR includes:
VOLTAGE REGULATOR - 950159
TRANSISTOR SOCKET - 950158
(C4) CAPACITOR - 995544
(SW) TRIGGER-LOCK - 950492

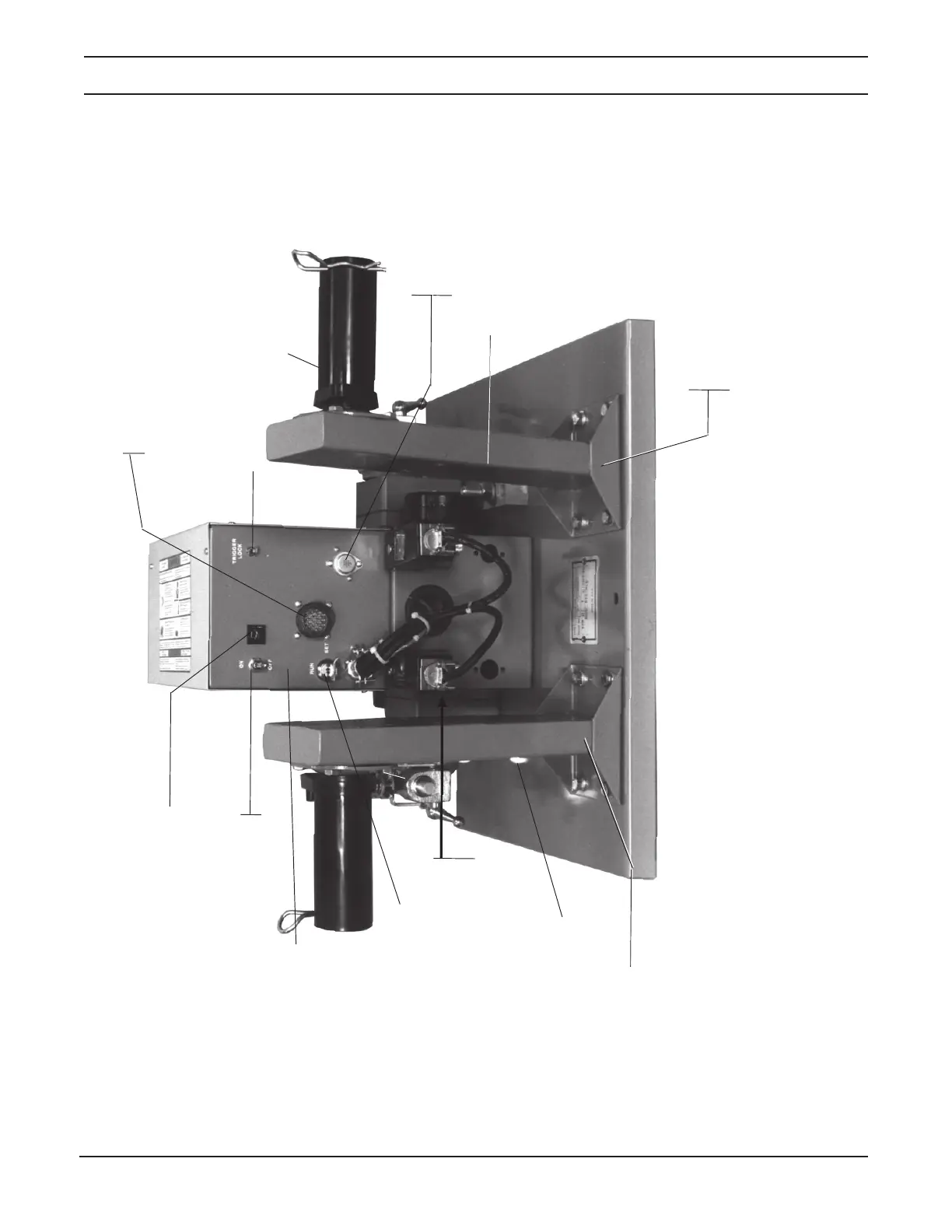

Fig. 6-1. DigiMig Dual Wire Feeder, P/N 30912
