1
2
3
4
87
6
5
To replace rear cover
lens, place a small
screwdriver in groove
and pull out lens.
To adjust angle of
helmet, turn
Eccentric knob.
Loosen locking-nuts and
adjust distance from eyes.
Adjust both sides at the same
time. Make sure helmet
remains straight.
To remove front lens frame
grasp bottom and pull upward; to
replace, reverse process.
F15-495 10/02 Printed in U.S.A.

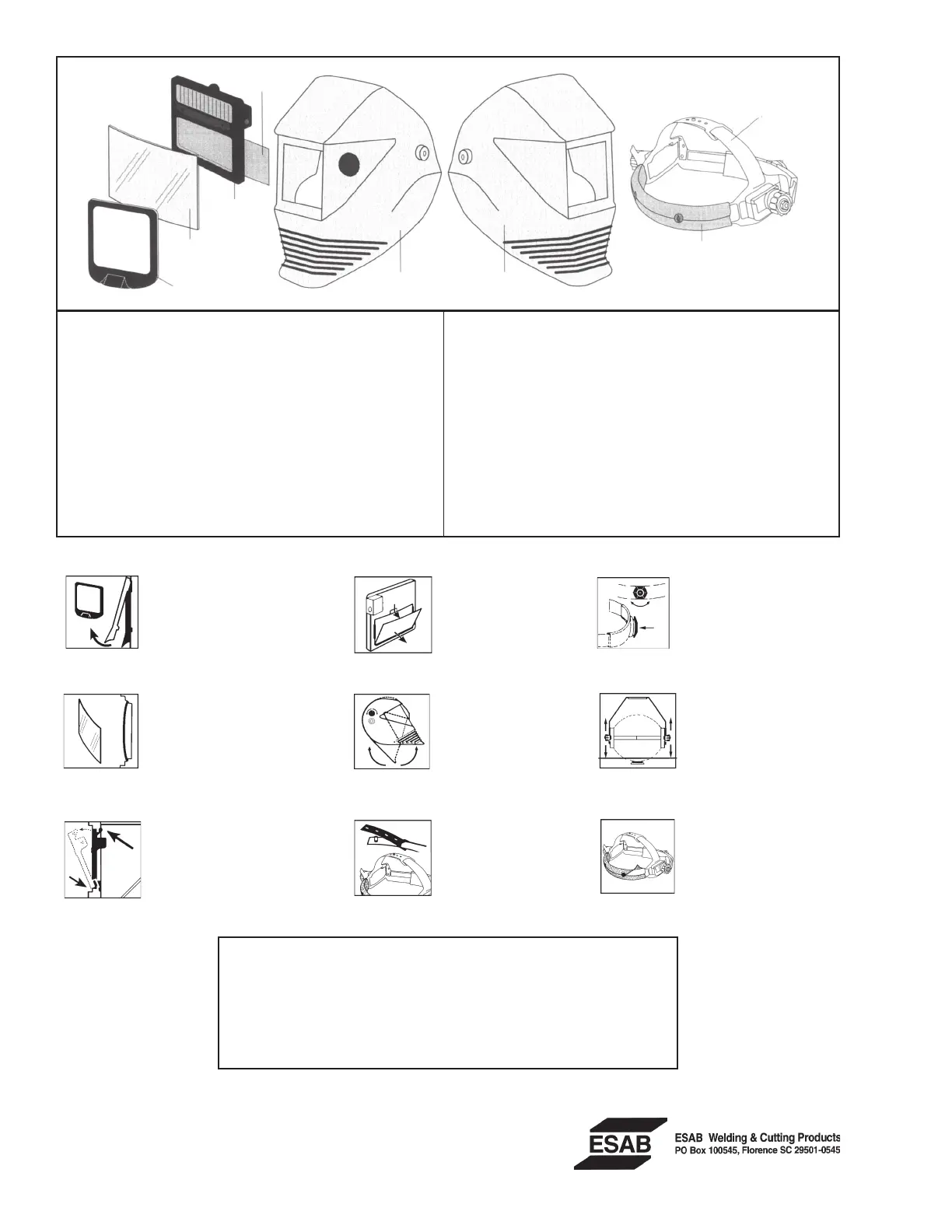

SPARE PARTS LIST
Item P/N
1 - Front Lens Frame ..................................... 15F05
2 - Front Cover Lens (10 pcs) ......................... 15F09
3 - Shade Cartridge ........................................ 15F23
4 - Rear Cover Lens ........................................ 15F10
5 - Head Band ................................................ 15F03
6 - Sweat Band .............................................. 15F04
7 - Helmet (without shade cartridge) ............... 15F01
8 - Helmet Complete ...................................... 15F22
ACCESSORIES
Magnifying Lens P/N
- Diopter +0 ........................................................ 15F11
- Diopter +1.5 ..................................................... 15F12
- Diopter +2.0 ..................................................... 15F13
- Diopter +2.5 ..................................................... 15F14
After removing frames, insert front
cover lens into frame.
Use only P/N 15F09 front cover
lens. Replace front lens frame.
To replace shade cartridge, push
shade cartridge outwards from
the upper inside rim. To put back,
reverse process.
To adjust headband, set
upper adjusting strap as
low as possible.
The sweatband for the
forehead is removable
and washable.
Push in knob (at back of
headband) and turn. It
will then click into
position.
Warranty
A two-year warranty from the date of manufacture is given against
defects arising from faulty workmanship or materials. No war-
ranty is given against defects arising from misuse, unauthorized
interference with parts or use of the appliance which was not
intended by the manufacturer.
