ESAB LPH 80 - Secondary Connections

- 48 -
4.7 SECONDARY CONNECTIONS
! WARNING !
Before making any connections make sure unit is disconnected from mains (by unplugging power
cable, opening switchboard switch or opening disconnect switch).
1. Connect air supply line to inlet of regulator.
2. Clamp work cable to workpiece. Make sure the workpiece is connected to ground with properly sized
cable.

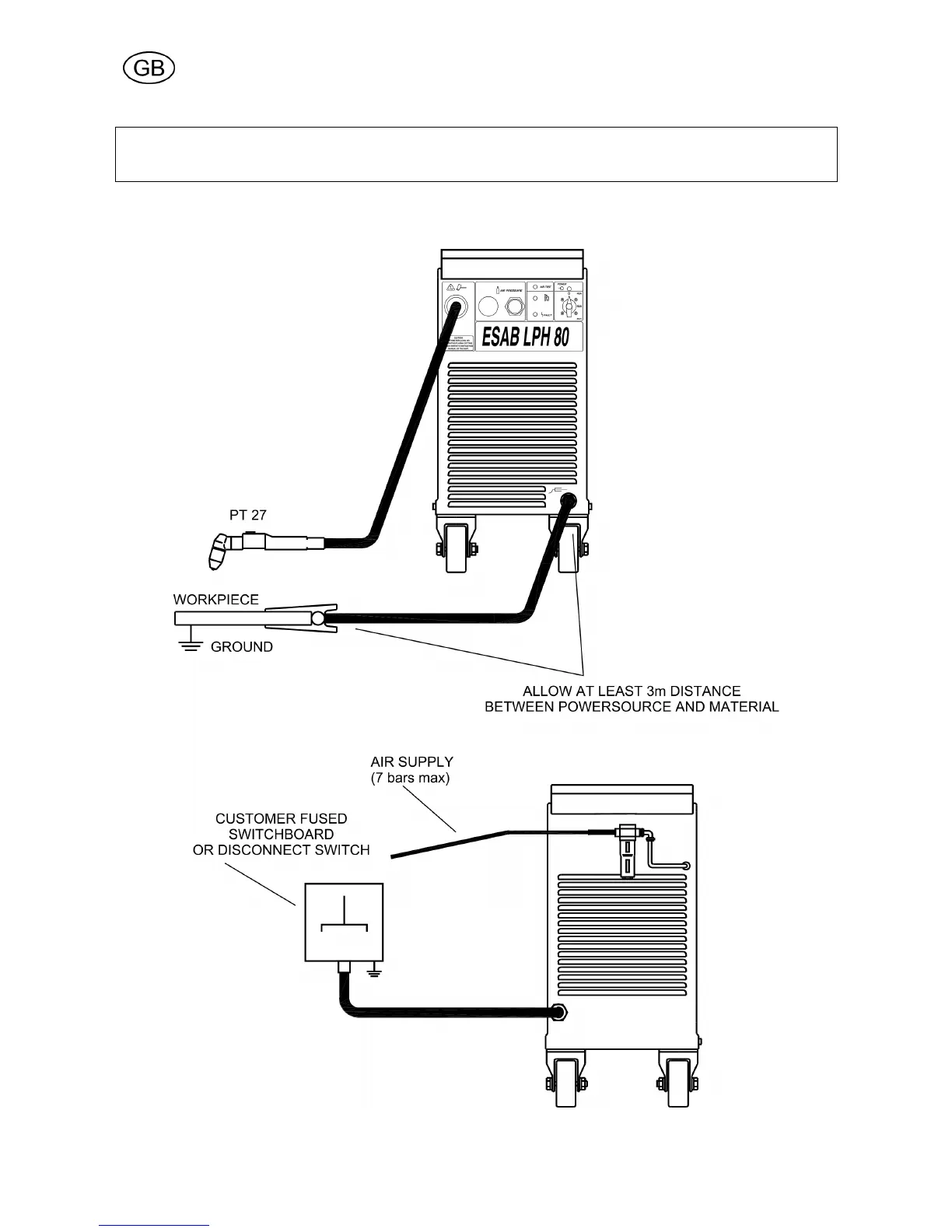

Fig. 4-1. LPH 80 connection diagram.
