Installation Instructions
It’s important to carefully read the following installation instructions before beginning the installation of
your dishwasher.
Important! The installation of the pipes and electrical outlets should be completed by suitably
licensed and qualied persons.
POSITIONING
→ The installation position of the dishwasher should be near the existing inlet, drainage
wastepipe and power outlet.
→ Choose a position near your sink to facilitate the installation of inlet and drain hoses
(refer to gure one).
→ If the dishwasher is installed in the corner of your kitchen cabinetry, make sure an
allowance is made to ensure your dishwasher door can freely open without obstruction
from other cabinetry/door handles.

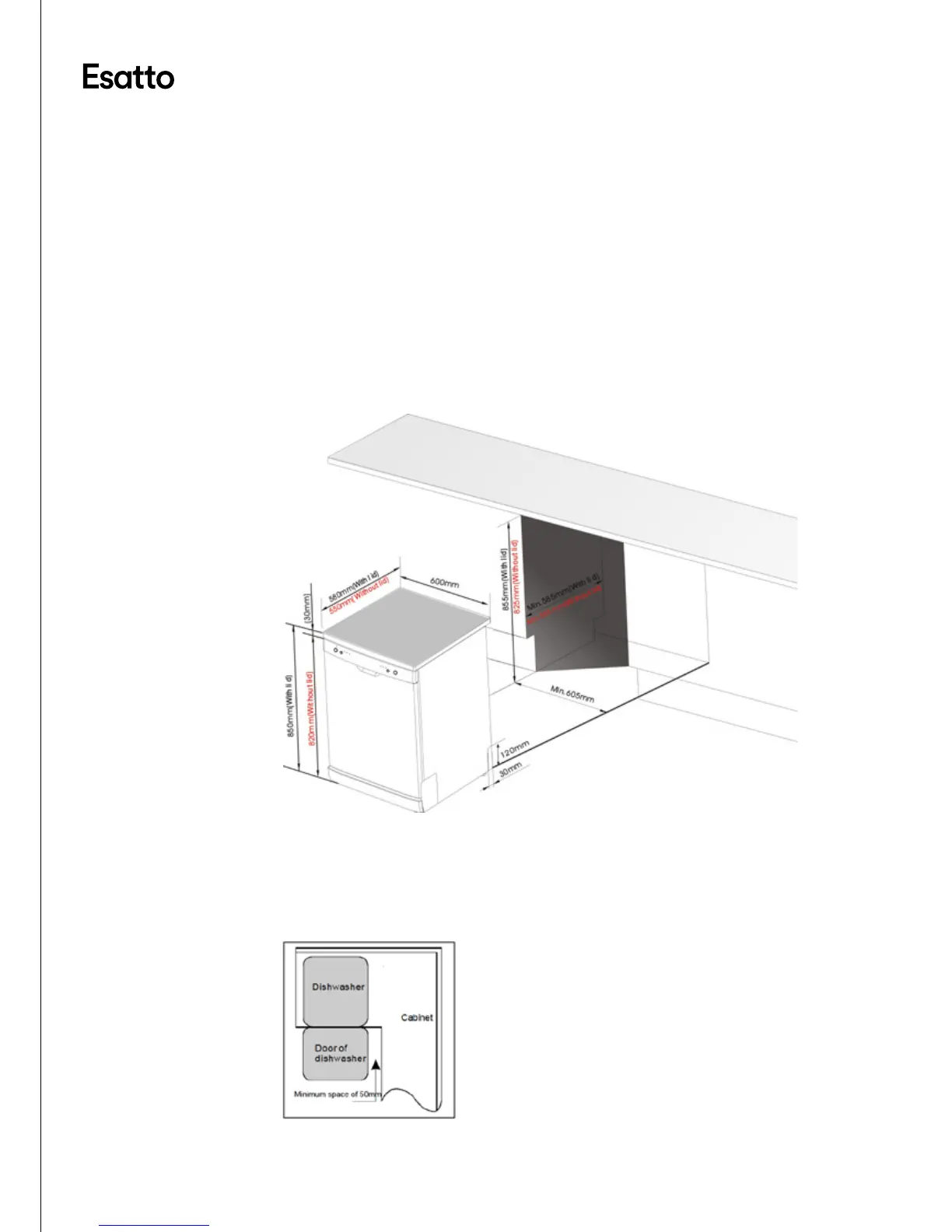

Figure 1. Cabinet dimensions:
Less than 5mm between the top of dishwasher and cabinet and the outer
door aligned to cabinet.
Figure 2. Minimum space when the door is opened.
1
2
