ESCALADE Atomic G01344W - Electrical Connections Diagram; Wiring Diagram Details

©
2017 Escalade Sports
For Customer Service Call 1-888-996-2729
10
All Rights Reserved.
A4- A/C Adapter
C3- LED Rail Lights-A C7- LED Rail Lights-B
C3- LED Rail Lights-A wire
C4- Scoring Sensor-A
C9- Scoring Sensor-B
C9- Scoring Sensor-B
C5- Electronic Scorer
（Already connected）
（Already connected）
（Already connected）
C2- LED Goal Trim-A
C1- Junction Box
C1- Junction Box
C6- Connecting Module`
C8- LED Goal Trim-B
C8- LED Goal Trim-B

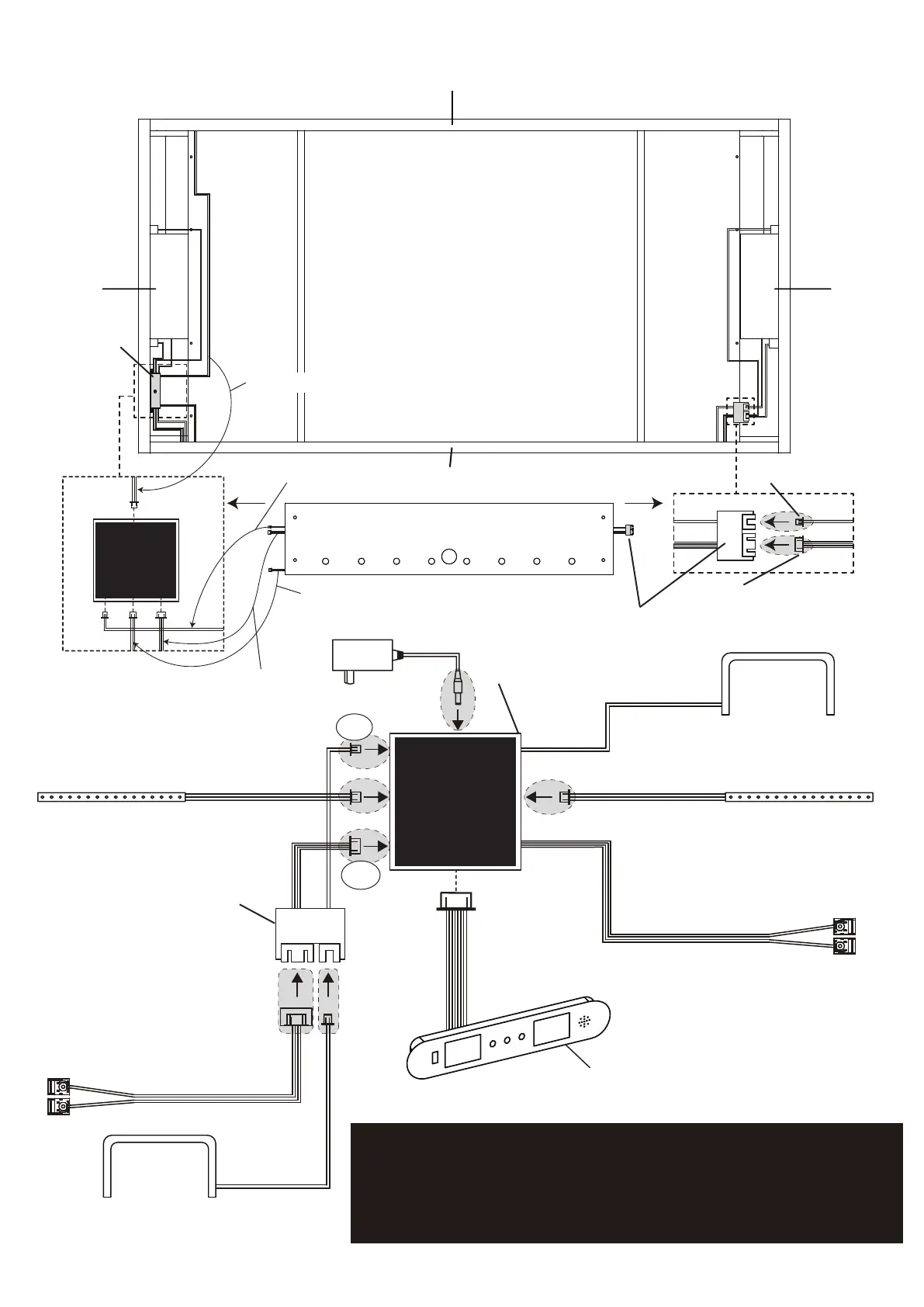

ELECTRICAL CONNECTIONS & SPARE PARTS DRAWINGS
NOTE: lightly push in on all connections to insure good connections.
All male to female connectors will only connect one way depending
on the tabs and slots of each.
Please closely inspect both the male and female connectors
to determine how to correctly plug the two together
POWER
G01344
C2C7C4
C5
C6-AC6-B C3
POWER
G01344
C2C7C4
C5
C6-AC6-B C3
P3R
P1R
Outside of P1R Side Apron
P2R
P4R
C6- Connecting Module
C6-B
C6-A
C7 Wire
1 2
2 4
4
3
3
1
C6-B Wire
C6-A Wire
