STEP 4
Attach P7 Playfield Support Braces onto P1R and P2R Side Aprons using pilot holes with H3 Screws
as shown in FIGURE 4.
Tighten, but do not strip out H3 Screws.
STEP 5
Connect LED Goal Trim, LED Rail Light, Scoring Sensor to Junction box and Connecting Wire
as per the ELECTRICAL CONNECTIONS & SPARE PARTS DRAWINGS on the next page.
PARTS REQUIRED:
2 pcs - P7 Playfield Support Brace
8 pcs - H3 3.5 mm x 14 mm Phillips Round Head Screw

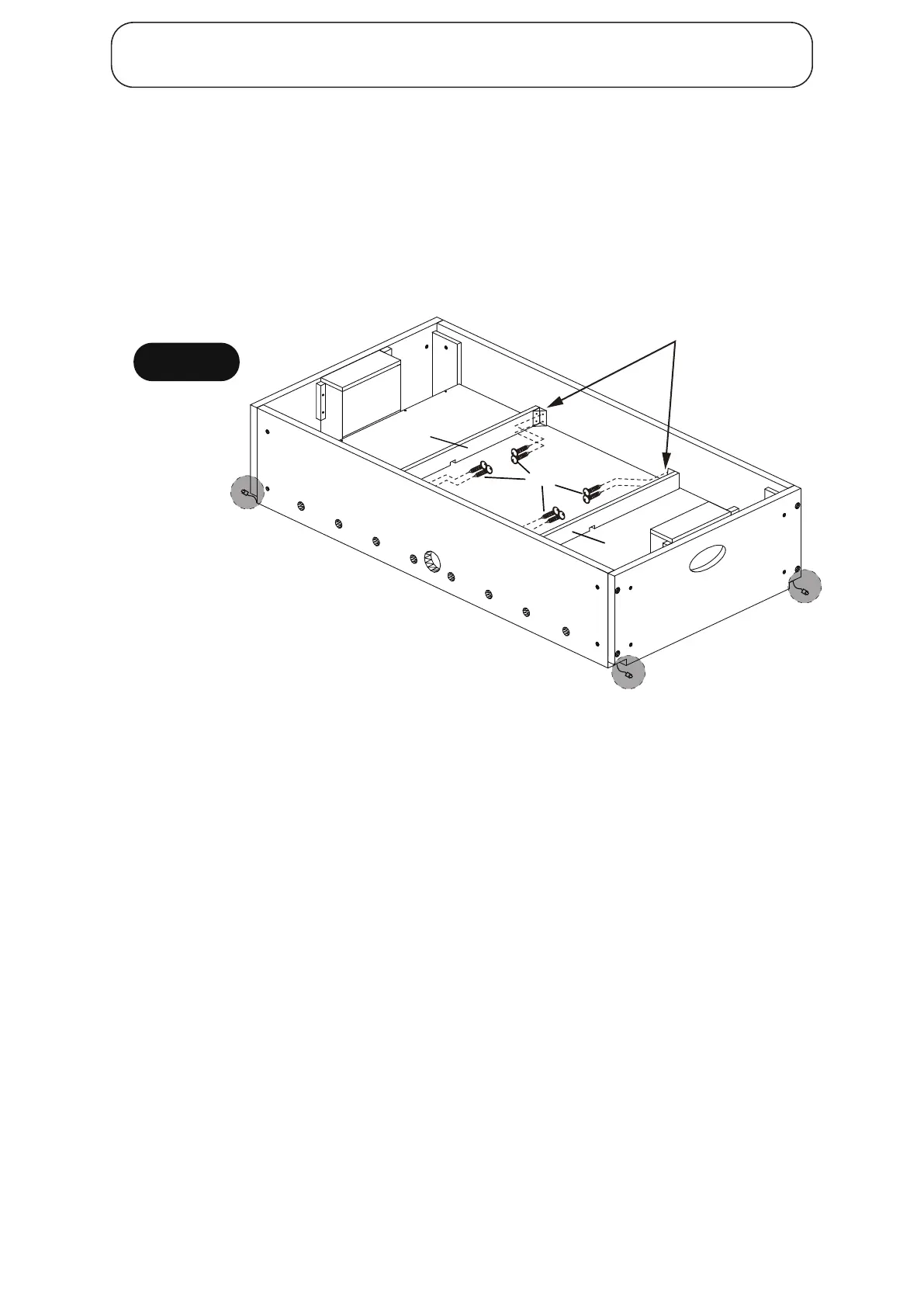

FIGURE 4
Pilot holes
P1R
P2R
H3
P7
P7
Outside
Outside
Outside
To Next Page
