STEP 8
Slide P10 2-Player Rod, P11 3-Player Rods and P12 5-Player Rod through Rod Bushings of P2 Side Apron-B,
P14 Rod Bumper, P13 Plastic Rod Washer, P18 Blue Players or P19 Ivory Players, P13 Rod Washer, P14
Rubber Rod Bumper and P1 Side Apron-A as shown in FIGURE 8, DETAIL B and DETAIL C.
NOTE: Please note the location of the hole or indentation that is near one end of each rod. This is the
handle end of the rod.
Secure P18 Blue Players and P19 Ivory Players onto rods using H10 Bolts and H11 Locknuts as shown.
Attach P15 Manual Scorers using H2 Screws as shown in FIGURE 8.
Tighten, but do not strip out H2 Screws.

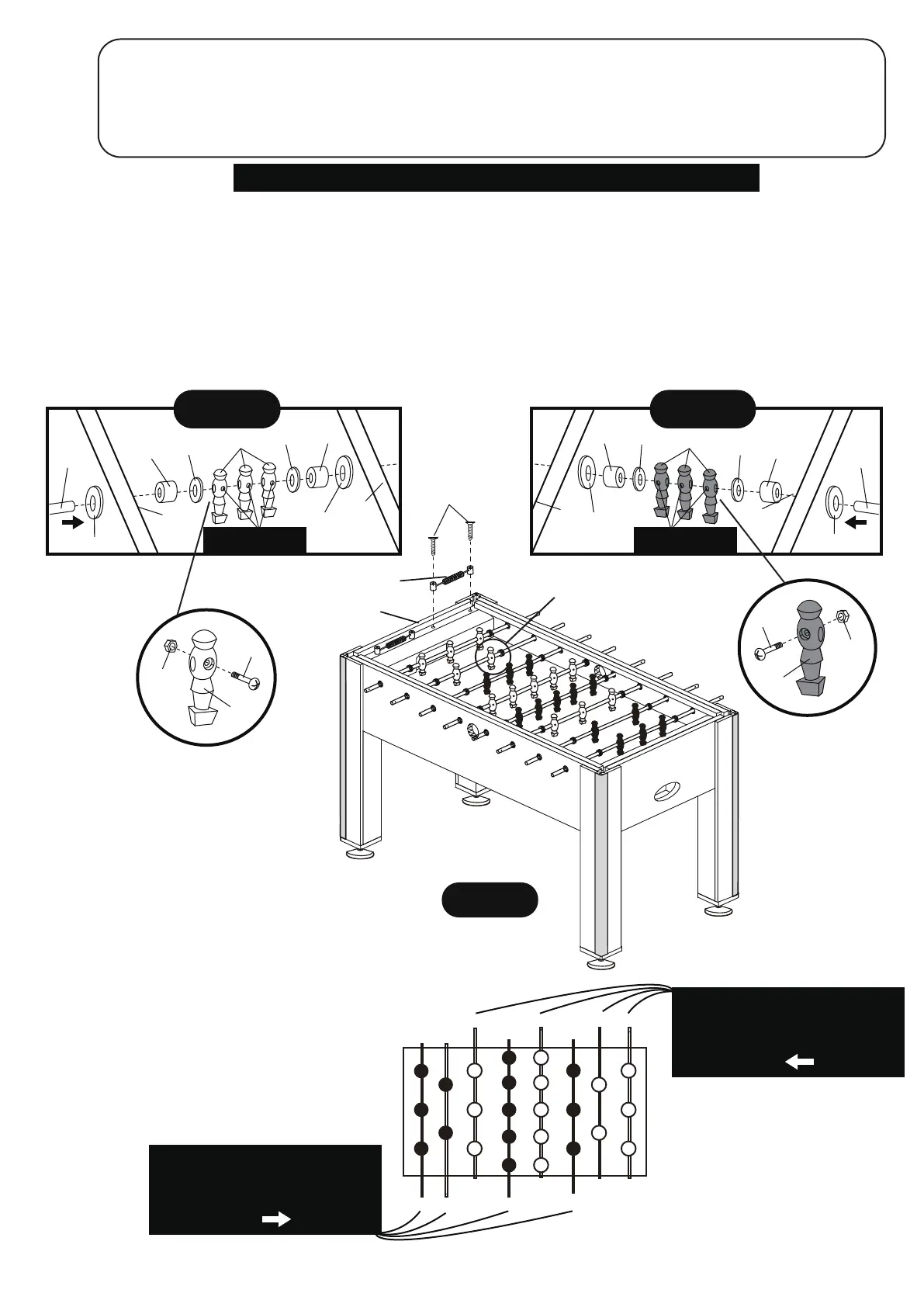

FIGURE 8
H2
P15
P4R
P3R
DETAIL C
NOTE: Round for Bolt
Head face this side.
P14
P14
P18
Rod
Bushing
Rod Bushing
P11
DETAIL B
NOTE: Round for Bolt
Head face this side.
P14
P14
P19
Rod
Bushing
Rod Bushing
P11
P13
P13
P13
P13
P10 P11
P11P11 P10
P11 P12
P12
HOLE OR DIMPLE AT THE END OF ROD
DESIGNATES HANDLE LOCATION.
INSTALL PLAYERS SO H10 BOLT
HEADS ALL FACE
HOLE OR DIMPLE AT THE END OF ROD
DESIGNATES HANDLE LOCATION.
INSTALL PLAYERS SO H10 BOLT
HEADS ALL FACE
PARTS REQUIRED:
26 pcs - H10 M4 x 27 mm Bolt
2 pcs - P12 5-Player Rod
2 pcs - P15 Manual Scorer
26 pcs - H11 M4 Nylock Locknut
13 pcs - P18 Blue Player
4 pcs - P11 3-Player Rod
13 pcs - P19 Ivory Player
2 pcs - P10 2-Player Rod
16 pcs - P14 Rubber Rod Bumper
16 pcs - P13 Plastic Rod Washer 4 pcs - H2
3.5 mm x 18 mm Phillips Flat Head Screw
NOTE: STUDY DIAGRAM CLOSELY FOR CORRECT PLAYER PLACEMENT
H11
H10
P18
H11
H10
P19
P2
P1
P2
P1
