ESCALADE Atomic - Assembly Steps; Step 1: Attach Legs

4
P3
P3
P2
H1
H2
H5
P2
1 pc -
P1 Air Hockey Table Cabinet
P2 Left Leg2 pcs - P3 Right Leg2 pcs -
T1 Allen Wrench1 pc -

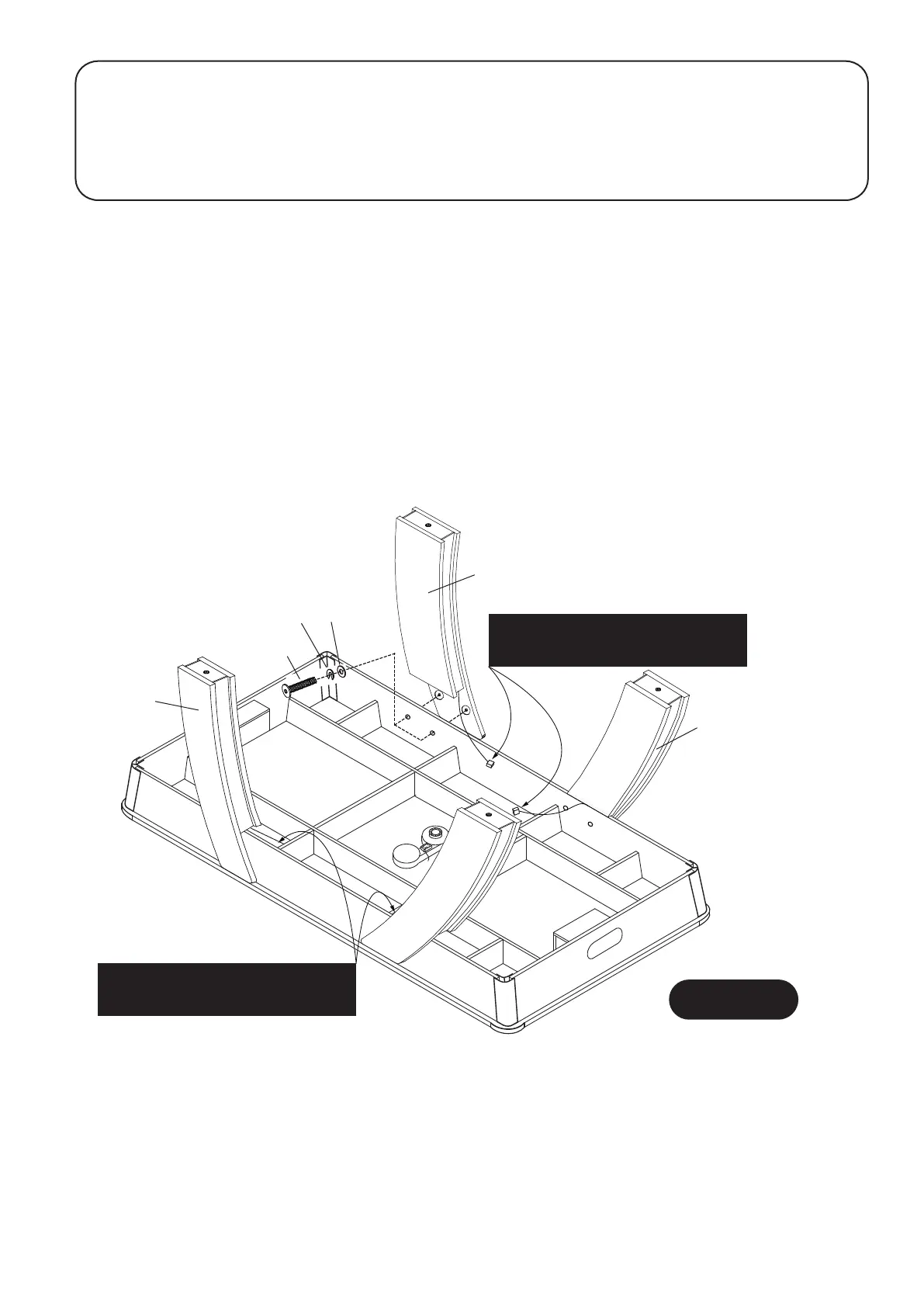

FIGURE 1
STEP:1
Leave Air Hockey Table Cabinet (P1) face down in the carton to assemble.
Install Left Legs (P2) and Right Legs (P3) onto Air Hockey Table Cabinet (P1) with Allen
Head Bolts (H1), Lock Washers (H5) and Flat Washers (H2) using Allen Wrench (T1) as
shown in FIGURE 1.
Do not tighten Bolts (H1) at this time.
PARTS REQUIRED:
H1 8 x 35mm Allen Head Bolt 8 pcs -
H5 M8 Lock Washer 8 pcs -
H2 8.5 x 22mm Flat Washer8 pcs -
NOTE: Keep leg wires inside table.
Do Not trap or crush wires
NOTE: Keep leg wires inside table.
Do Not trap or crush wires
