ESCALADE Silverback B5400 - Lower Arm Assembly; Attaching Lower Arms to Pole; Securing Actuator to Lower Arms

IMPORTANT! Nylon washers (#5) adequately space
painted parts at all pivot points. Neglecting the use of
these washers will result in rusted parts.
NOTE: All board arms are made of rectangular tubing.
Tightening hardware too tight may damage tubing
and make adjustment of system difficult.
Figure 10

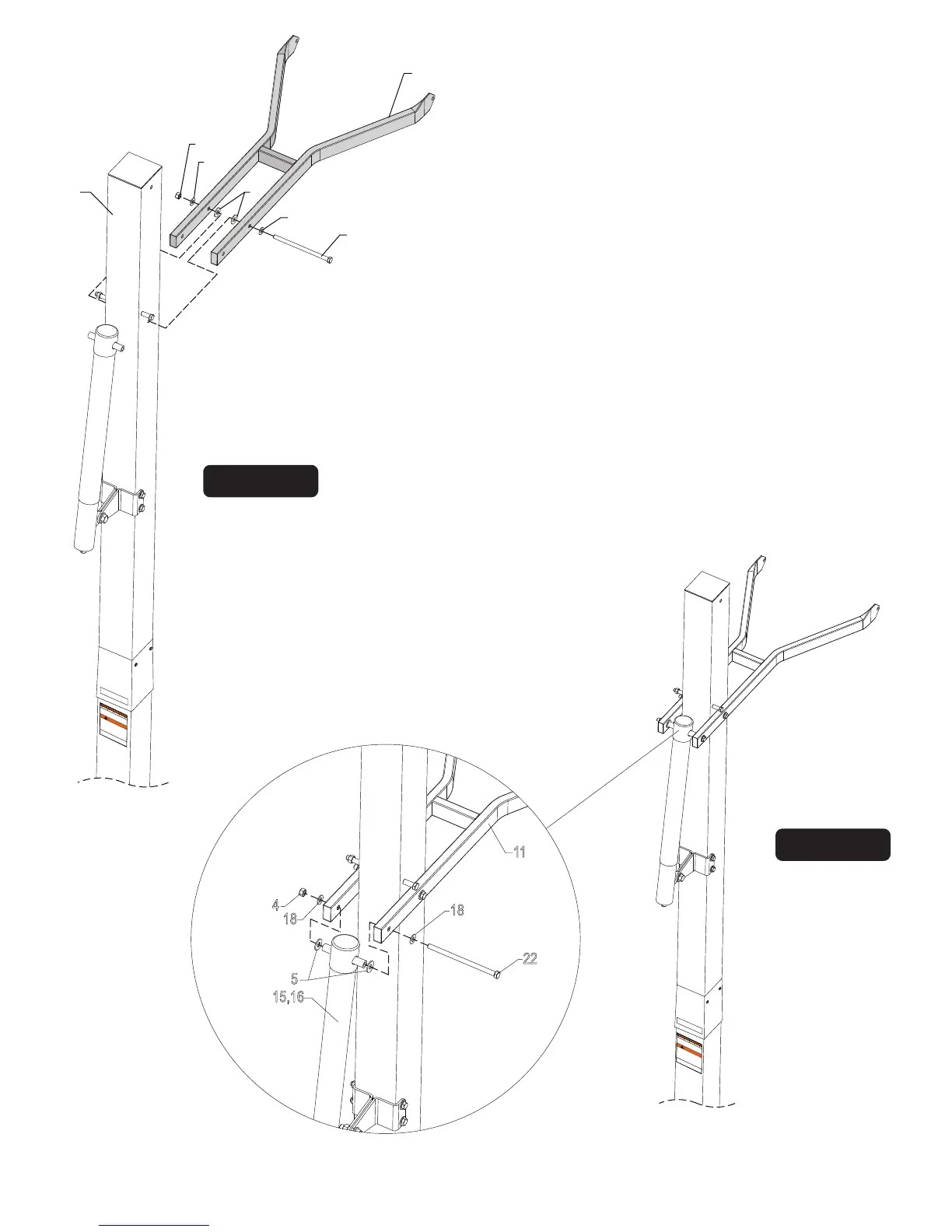

13. Attach lower arms (#11) to Top Pole (#3), as shown in
Figure 9, using a hex bolt (#22), two flat washers (#18),
two plastic washers (#5) and lock nut (#4).
Figure 9
22
18
5
18
4
3
11
22
18
5
18
4
11
15,16
Detail 3
14. Secure Actuator (#16) to Lower Arms (#11) using one bolt
(#22), two flat washers (#18), two plastic washers (#5) and
one lock nut (#4). See Figure 10 and Detail 3. Tighten both
bolts (#22) snug but, do not over tighten. Board Arms
must pivot freely.
FAILURE TO FULL
Y ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper
pole
must cover
the
above
orange
portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
BACK SIDE
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESUL
T IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole
must
cover the
above
orange
portion
of
this sticker
(6” mark).
WARNING
!
4L-8151-00
BACK SIDE
Note: make sure lettering is right side up. Do NOT tighten
bolt (#22) at this time.
Note: Small amounts of clear tape can be used to adhere
Plastic Washers (#5) to Pole. This will make assembly easier.
11
