Escea DF Series - Page 2

Escea DF Series Gas Fire with
Slim Fascia shown
non-combustible hearth
over timber floor
standard wall lining
Notes:
· All dimensions are in mm.
· This detail is to assist in the installation of a DF700, DF960 or DF990 Gas Fireplace with a combustible or heat sensitive floor
or finish in front of the fireplace.
· In this scenario a non-combustible hearth is required when the base of the fire is within 100mm from a combustible floor.
the hearth needs to be 200mm deep and as wide as the appliance.
· Powdercoated fascia's can be easily damaged - handle with care.
· Give consideration to the overhang of the fascia when setting up the fire - base of the appliance must be at least 30mm
above the any adjacent horizontal non-combustible and heat resistant surface.
· This technical sheet must be read in conjunction with the Escea DF Series Installation Manual, the latest version can be
found on our website at www.escea.com.

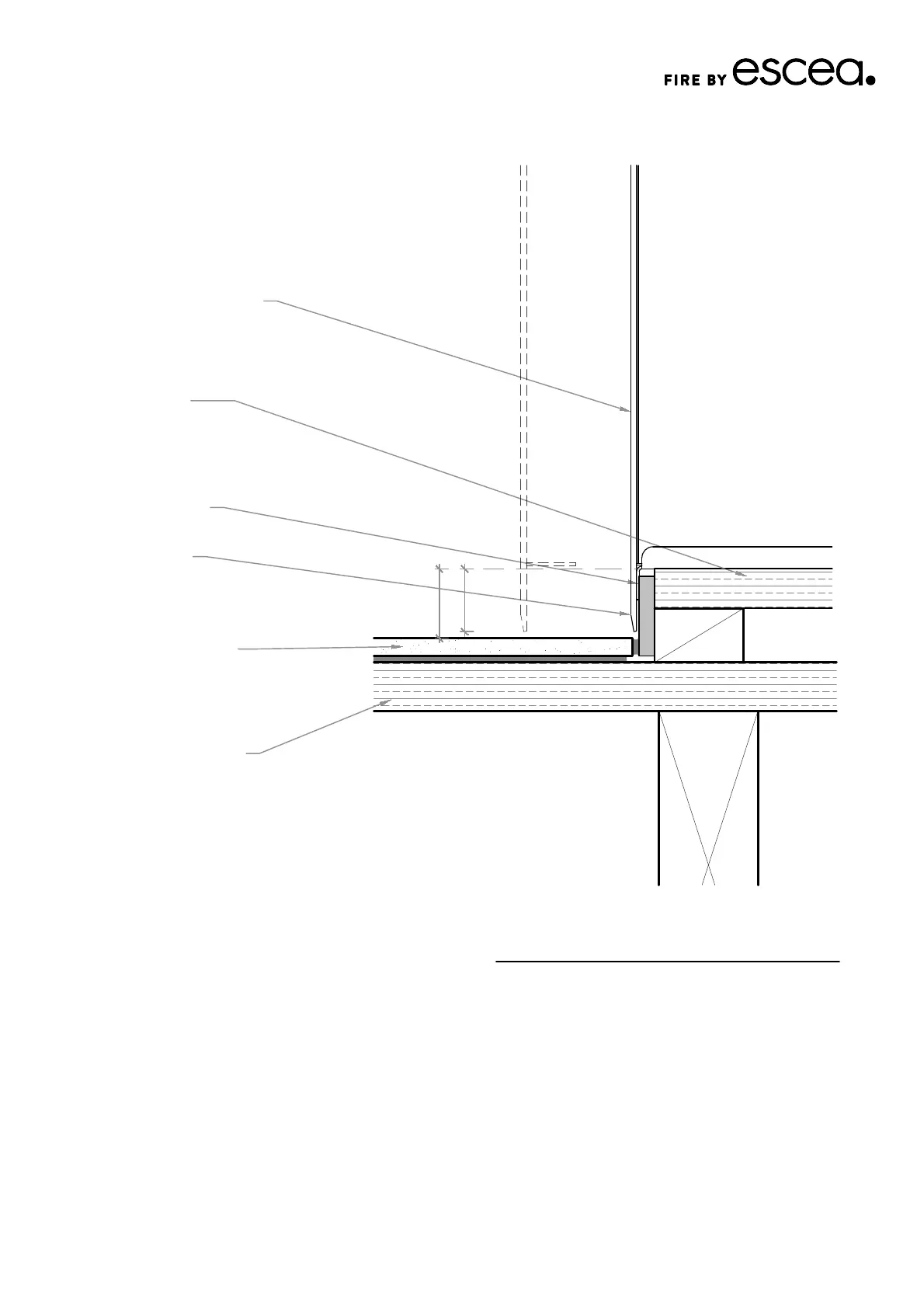

Combustible Floor Detail scale 1:2
existing combustible floor
solid continuous
base - can be a
combustible material
fascia overhang
29
32 min.
Non-Combustible Hearth Dimensions
(minimum dimensions with slim fascia)
DF700 723mm W x 200mm D
DF960 973mm W x 200mm D
DF990 973mm W x 200mm D
Some design scenarios may expose materials to 80° C or above. Unprotected exposure to heat may be detrimental to the appearance or
long term performance of a material. Specifier's and installers must ensure that materials used are suitable for the intended project.
GENERAL CONSTRUCTION AND FINISHES SHOWN INDICATIVE ONLY
Contact the ESCEA Architectural Advisory Team for assistance with the specification of this fire - aa@escea.com
16.11.2022
Escea_DF_Finish_Hearth.dwg
DF Series Combustible Floor Detail
