7
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
Operator’s Manual
ESKIMO
®
WIDE1
™
Inferno
ENGLISH
SEAT FABRIC HIDDEN FOR ASSEMBLY CLARIETY

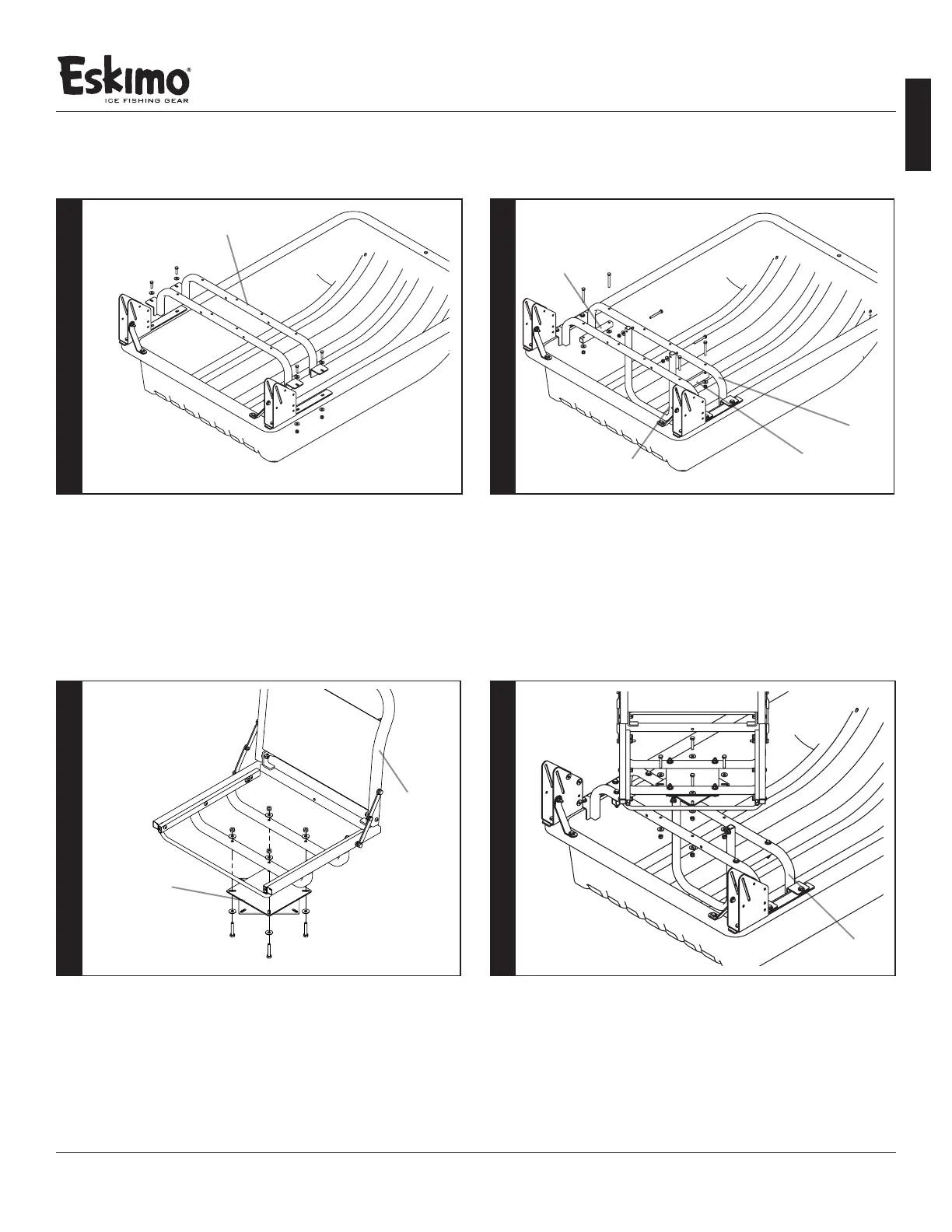

FIGURE 3
Attach (2) seat rails (#15033) using (4) 1 inch
bolts, (8) washers, and (4) nuts as shown in
FIGURE 3.
#15033
3
#15004
#15016
(A) Locate the included Versa seat (#15004),
small parts bag (#15752), and swivel (#15016).
(B) Attach the swivel (#15016) to the Versa
Seat (#15004) using (4) 1½ inch bolts, (4)
washers, and (4) nuts, as shown in FIGURE 5.
5
FIGURE 5
FIGURE 6
6
Attach the seat/swivel assembly from step 5 to
the seat rails (#15033), with (4) 1½ inch bolts,
(8) washers, and (4) nuts from the small parts
bag, as shown in FIGURE 6.
FIGURE 4
(A) Attach (2) seat rail braces (#15640) to the
seat rails (#15033) using (4) 2-1/4 inch bolts, (4)
washers, and (4) nuts, as shown in FIGURE 4.
(B) Attach seat support brace (#11305) to the
front seat rail (#15033) with (2) 2 inch bolts, (2)
washers, and (2) nuts, as shown in FIGURE 4.
NOTE: Tighten all hardware used up to this point.
4
#15640
#15640
#15033
#11305
#15033
NOTE:
(Seat fabric
hidden for
assembly clarity)
NOTE:
(Seat fabric
hidden for
assembly clarity)
To Next Page
