WORD
SYNC
OUT
Amplifier
D-01 (FRONT L channel)
SACD/CD Drive Unit (P-01)
D-01 (other than FRONT L channel)
or a Clock Generator (G-0/G-0s)
AUDIO IN
(FRONT L)
Connect either cable.
Connect either cable.
XLR pin assignment
D
E
C
C A A
BB
6

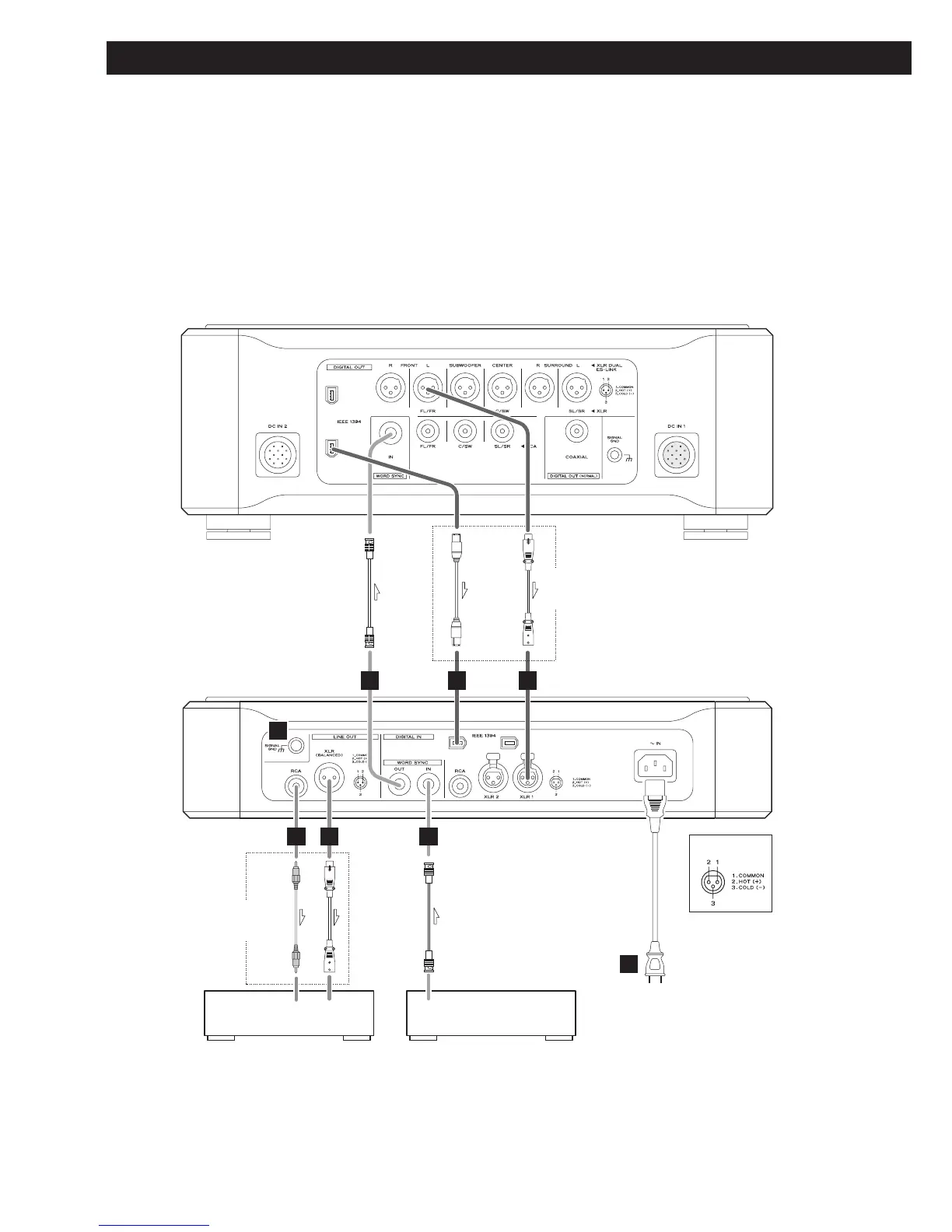

Connections
CAUTION:
<
Switch off the power to all equipment before making connections.
<
Read the instructions of each component you intend to use with this unit.
<
Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the
signal interconnection cables together with the AC power cord or speaker cables.
Supplied power cord
BNC coaxial cable (75Ω)
BNC coaxial cable (75Ω)
If you are using the G-0/G-0s,
make a direct connection
between its WORD CLOCK
OUT and the P-01’s WORD
SYNC IN.
IEEE 1394 cable
XLR digital cable
XLR cable
RCA cable
To Next Page
