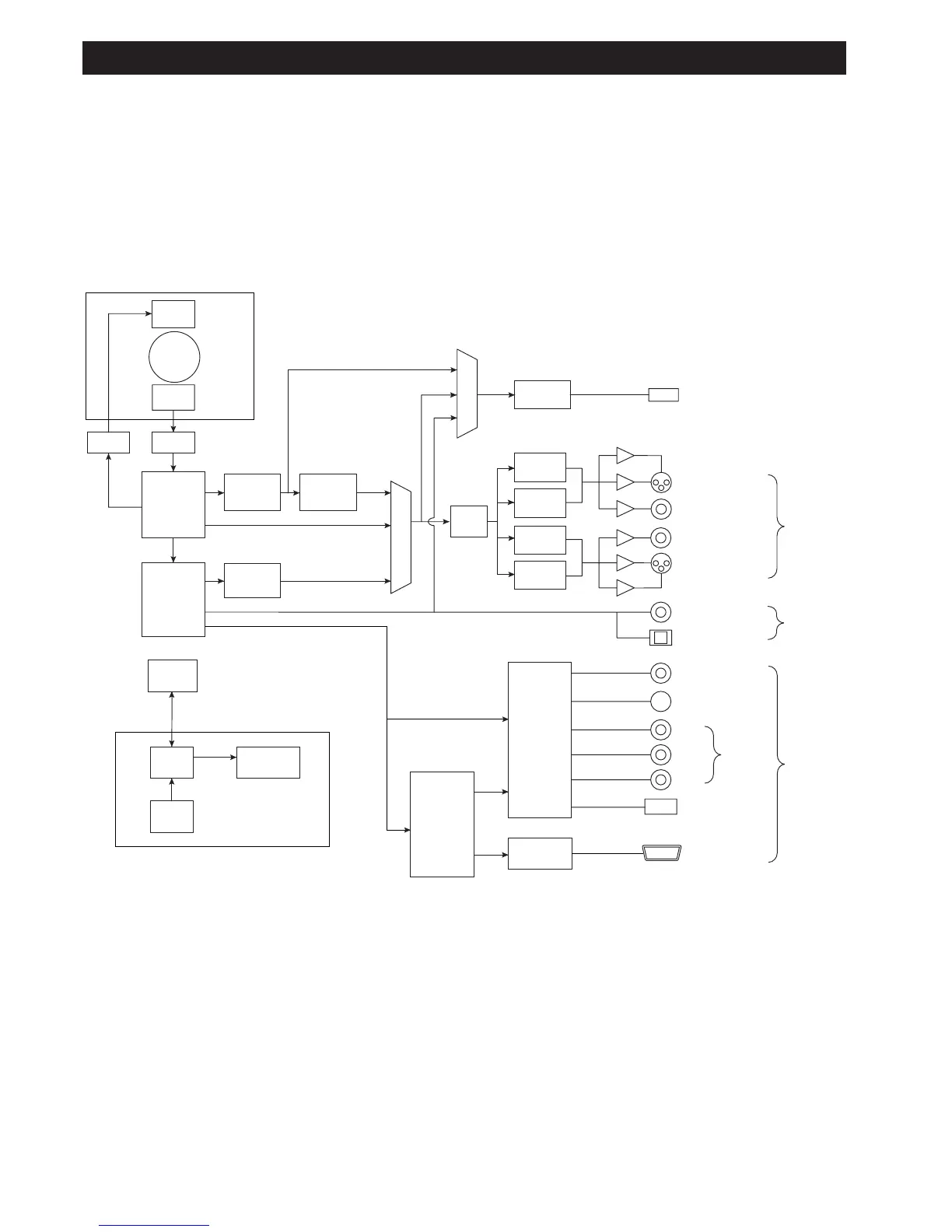

Block Diagram
SA-CD
CD
･VCD
DVD
SA-CD
VRDS UNIT
FRONT PANEL
CD
DVD
Spindle
Motor
Front End
DSP
SA-CD
Decoder
PCM
Converter
Digital
Filter
D/A
Converter
–
–
+
+
Balanced
Front L ch
Balanced
Front R ch
Front L ch
i.LINK(AUDIO) (IEEE1394)
AUDIO OUT
(2ch)
VIDEO OUT
Component
Video
DIGIT
AL OUT
Front R ch
Coaxial
Optical
Composite
Video
S-Video
Y
C
B
/P
B
C
R
/P
R
D1/D2
DVI-D
(HDCP)
D/A
Converter
D/A
Converter
D/A
Converter
DVI
T
ransmitter
MPEG-2
Decoder
Video
Encoder
I/P
Converter
Driver
Optical
Pickup
RF Amp
Back End
MPU
I/F
MPU
FL
Display
Key
SW
Audio
DSP
1394
T
ransmitter
46
48
Table of Contents
Important Safety Instructions
2
Table of Contents
4
Contents
4
Features
5
Before Use
6
Restoring Factory Settings
7
Discs
8
Connection to a TV
10
Connections to an Amplifier, Etc
12
Front Panel Features
14
Front Panel Display
15
Understanding the Remote Control Unit
16
Playback
18
Stopping Playback
19
Resume Mode
19
Selecting a Chapter or Track
20
Skipping Playback
20
Selecting the Playback Area
20
Selecting Groups and Titles
20
Repeat Mode
21
Fast Scanning
21
Programmed Playback
22
Changing Camera Angle
23
Selecting Audio
24
Slow Motion/Frame Advance
24
Display Dimming
25
Lip Sync
25
Selecting Subtitles
25
DVI Output
26
Clock Mode
27
Analog Sound Output
27
Turning Video on and off
27
Changing the Display Mode
28
Settings (Introduction)
30
CD Playback Mode
31
Digital Output Settings
31
Analog Output Settings
31
Audio DRC (Dynamic Range Controlling)
32
Downmix
32
Group Playback Mode (DVD Audio)
32
Progressive Scan Setting
33
Video Adjustment
33
On-Screen Display Language
34
Displaying Subtitles
34
Subtitle Language Selection
34
Audio Language Selection
34
Language Code List
35
Speaker Setup
36
Digital Output Formats
37
Test Tone Length
37
Speaker Levels
37
S-Video Output
38
TV Screen
38
Still Mode
39
Component Video Output
39
PAL-NTSC Conversion
39
Closed Captioning
39
On-Screen Display
40
Angle Indication
40
Background Color
40
Parental Control
40
Country Code
41
I.link (AUDIO) Output Setting
42
I.link
43
Troubleshooting
44
Beware of Condensation
45
Specifications
46
Block Diagram
47
