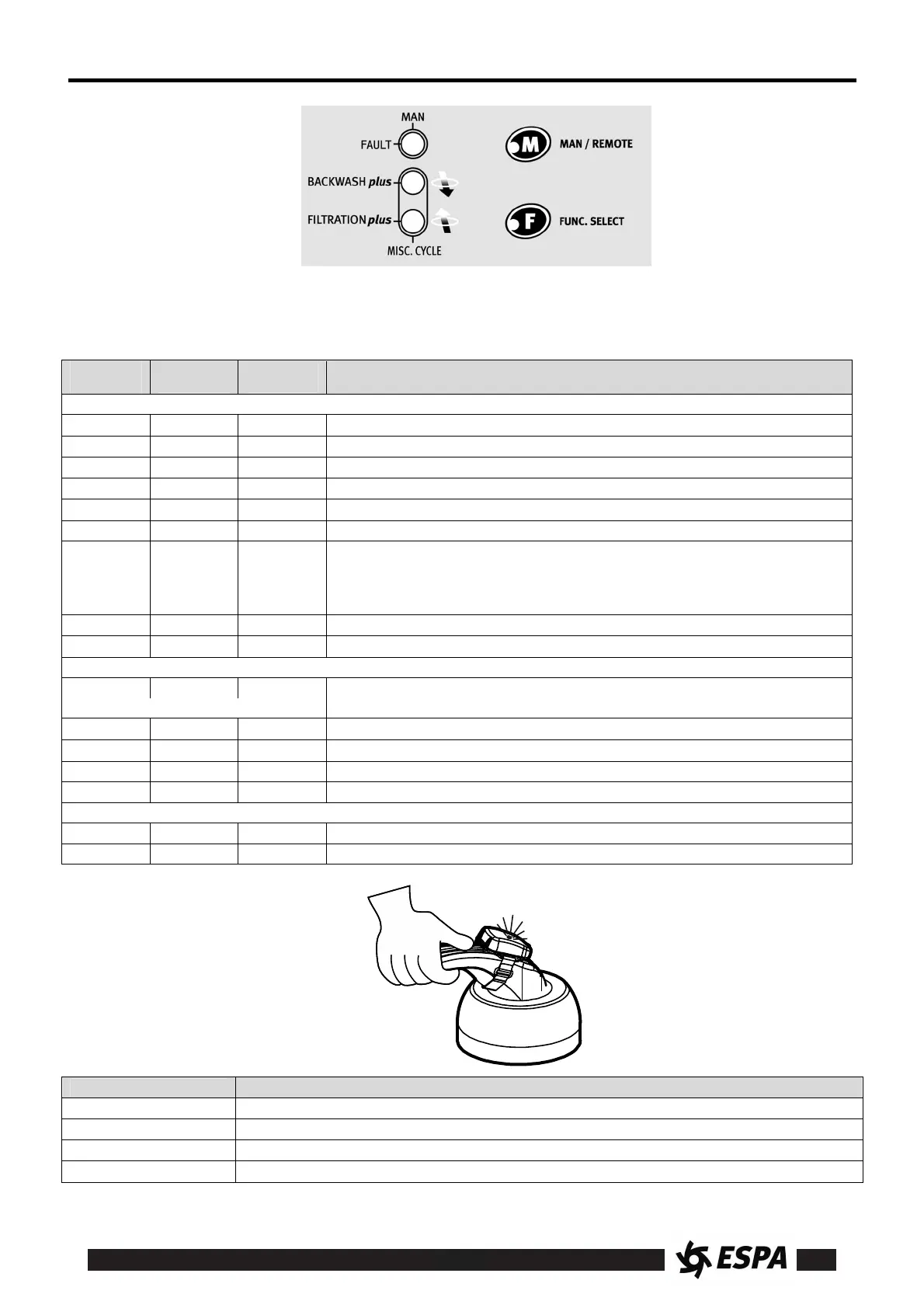

11. LED INDICATORS
In
SilenPlus
pump
:
::
:
The possible LED combinations and their meanings are:
0 = LED OFF
1 = LED ON
2 = LED flashing slowly
3 = LED flashing quickly
MAN/
FAULT
BACKWASH
Plus
PlusPlus
Plus
FILTRATION
Plus
PlusPlus
Plus
Equipment status
Functions
0 0 1
Filtration Plus
function in Remote mode.
0 1 0
Backwash
Plus
function in Remote mode.
0 1 1 Mixed Cycle function in Remote mode. Motor at 100%.
1 0 1
Filtration
Plus
function in Manual mode.
1 1 0
Backwash
Plus
function in Manual mode.
1 1 1 Mixed Cycle function in Manual mode.
2 0 0
“Standby" mode. The equipment has power, motor stopped.
a) Valve in intermediate positions or position 6 in Remote mode.
b) Stop function in Manual mode.
c) Timer OFF position.
0 0 2
Filterwatch
function active.
0 3 2
With
Filterwatch
active: Filter saturated, please clean it.
Configur
ation
3 3 3
Initial configuration: standing by for link with ControlSystem
(...
together
...
)
3 0 1
Filtration Plus
speed setting.
3 1 0
Backwash
P
lus
speed setting.
3 1 1 Mixed Cycle speed setting.
0 0 3 (3 times)
Activation/deactivation of the
Filte
rwatch
function
Errors
2 1 2 No water error. Start-up retry attempted.
2 1 1 No water error. Full shut-down.
When moving the control
of the ControlSystem:
Number of flashes
ControlSystem
status
3 The
ControlSystem
is not linked to any
SilenPlus.
2 Communication error. Call for service.
1 The
ControlSystem
works correctly.
0
Replace the
ControlSystem
battery
