Fig. 1 - 500 Series
TECHNICAL INFORMATION

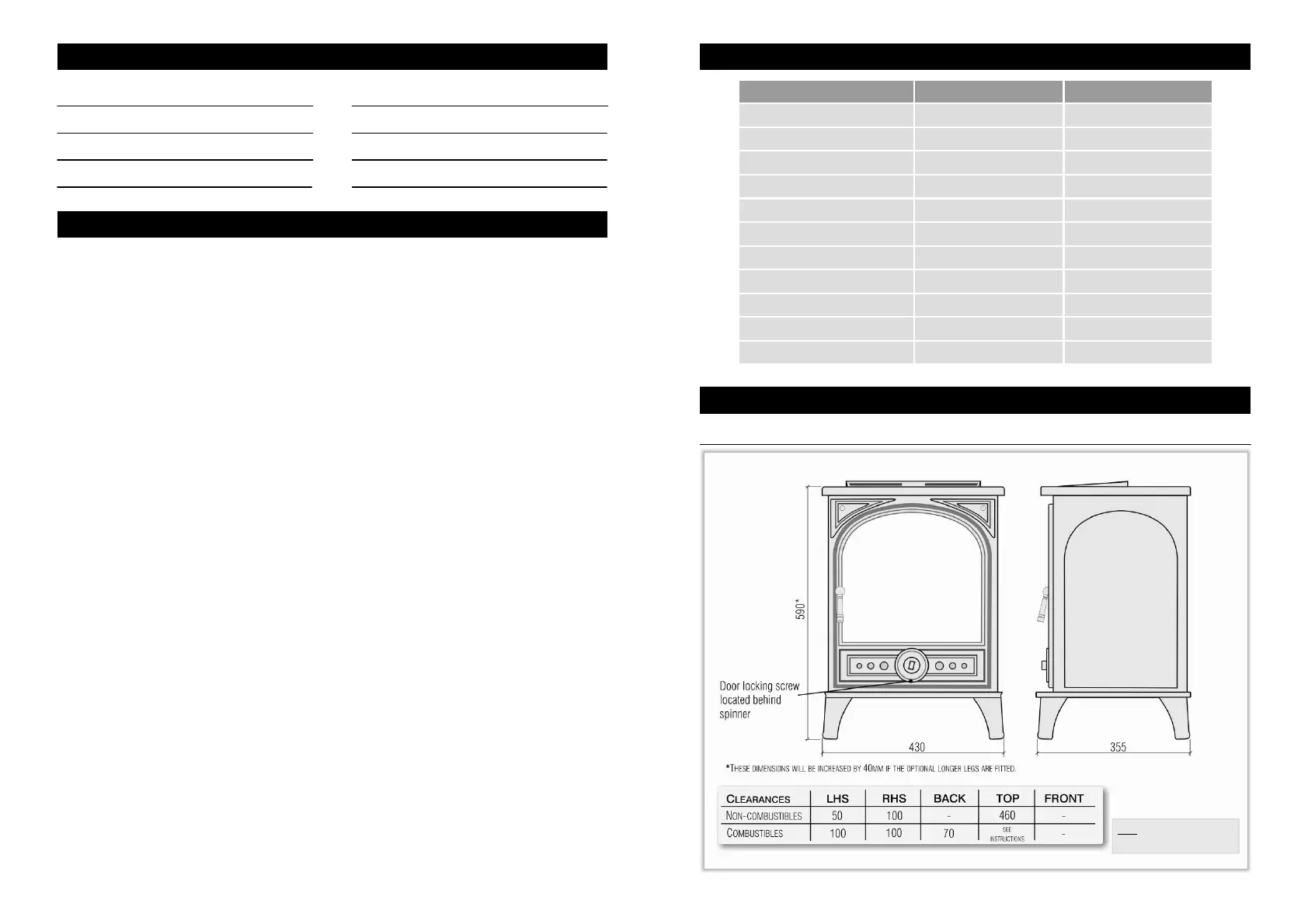

DIMENSIONS
GAS NATURAL GAS PROPANE
Category I
2
H I
3
P
Heat input (gross) MAX 3.3kW 3.0kW
Heat input (gross) MIN 1.6kW 1.6kW
Supply pressure 20mbar 37mbar
Burner pressure - HIGH 19.5mbar ± 0.5mbar 36.8mbar ± 0.5mbar
Burner pressure - LOW 4.6mbar ± 1mbar 10.0mbar ± 1mbar
Injector size 82/200 92/95
Gas connection 8mm O.D. tube 8mm O.D. tube
Gas consumption (high) 0.28m
3
/h 0.114m
3
/h
Oxypilot Seagas NG P441 Seagas LPG P451
Control Valve S.I.T. 0.630.700 S.I.T. 0.630.700
NOTE
All dimensions are in millimetres
IMPORTANT NOTES
2
This is a High Efficiency, Flueless Catalytic, Live Fuel Effect Stove. It provides radiant and
convected warmth both efficiently and safely utilising the latest type catalytic convector
burner technology. It is recommended that it is only used as a secondary heat source.
Before installation, ensure that the local distribution conditions (identification of the type of
gas and pressure) and the adjustment of the appliance are compatible. Refer to the data
label.
The stove incorporates a thermostatically controlled gas valve, which can be adjusted by
the control knob on the front of the gas valve, located on the lower right hand side of the
stove. The stove is designed to reduce its heat output as the temperature of the room in
which it is installed rises. The main burner will automatically switch from low to off as the
room temperature continues to rise. As the room temperature cools the main burner will
switch from off to low and then adjust its input as required. There is a thermostat manual
override lever also fitted.
This stove incorporates a combustion monitoring system (ODS). It must not be adjusted or
put out of operation. If replaced then manufacturers original parts must be used.
The stove is designed to fit various types of situations as listed in the Installation Requirements.
The stove must be installed in accordance with these instructions and with the rules in force and
only used in a sufficiently ventilated space. A minimum of 100cm
2
purpose provided ventilation
is required for this appliance. An openable window or louvre is also required. This appliance is
factory set for operation on the gas type, and at the pressure stated on the appliance data plate.
The room size should be a minimum of 40m
3
(1412ft
3
) to allow adequate circulation of air and
ensure the correct operation of the stove. This volume may include adjacent spaces but these
spaces must not be separated by a door.
The stove must not be installed in a bedroom, bathroom or any sleeping area. The appliance
does not require a flue system of any type as the catalytic converter cleans the flue
products to provide a complete combustion system.
The stove must be installed by a competent person in accordance with Gas Safety
(Installation and Use) Regulations 1998 or rules in force. It is strongly recommended that a
GAS SAFE registered engineer is used for this purpose, as they are the only persons
approved by the HSE under the above regulations.
On initial light up of a new appliance, the 'newness' will burn off within the first few hours of
operation. During this period some smoke may be emitted from outlet grille, this should be
no cause for concern. Accordingly, the room should be well ventilated with all windows and
doors open during this period. All surfaces except the controls are considered to be
working surfaces.
CONTENTS
Important Notes Page 2 Positioning the Logs Page 7
Technical Information Page 3 Commissioning the Stove Page 7
Dimensions Page 3 Customer Briefing Page 10
Installation Page 4 Servicing Instructions Page 10
