Essence ESS45 - Minimum Clearances & Non Combustible Material Requirements

Page 16 of 55

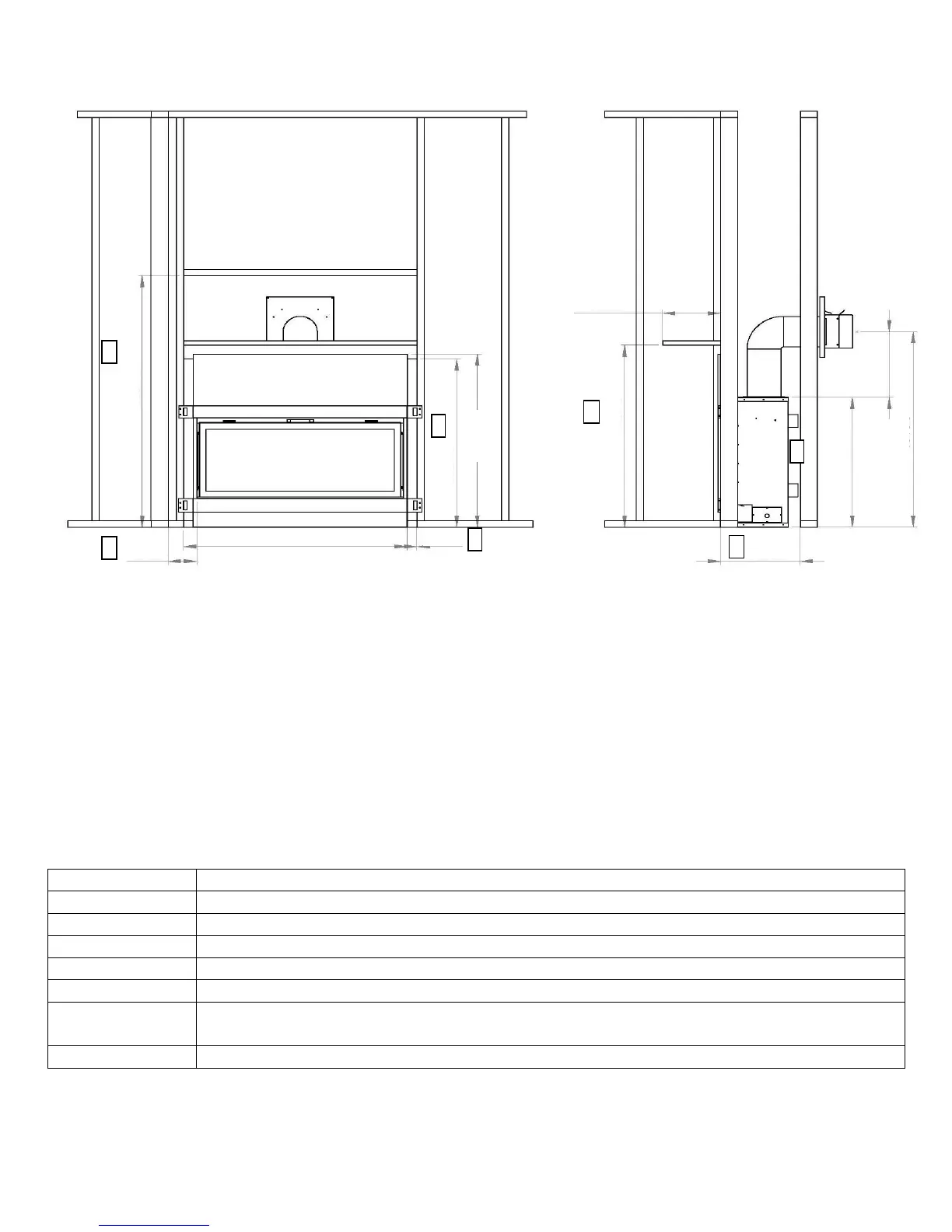

3.3.1 MINIMUM CLEARANCES / DÉGAGEMENTS
NON-COMBUSTIBLE BOARD – 11.75" (298.5mm) x 44.3125" (1125.5mm) WILL BE
SUPPLIED BY MANUFACTURER AND MUST BE ATTACHED TO TOP OF FIREPLACE
SEE DIAGRAM PAGE 18
MINIMUM CLEARANCES TO COMBUSTIBLES
A = 58”
TO INTERNAL CEILING
B = 2”
TO INTERNAL BACK COMBUSTIBLES
C = 16.5”
TO BACK WALL FROM FRONT OF UNIT
D = 6”
FROM EDGE OF FIREPLACE TO SIDE WALL
E = 38.75”
FROM BOTTOM OF FIREPLACE TO STUD
F = 2”
TO INTERNAL SIDE COMBUSTIBLES
G=42”
MINIMUM FROM BOTTOM OF FIREPLACE TO MANTLE
(SEE DIAGRAM NEXT PAGE)
0”
BASE OF UNIT TO FLOOR
58.00”
15.00”
6.00”
38.75”
2.00”
48.25”
40.00”
30.00”
16.50”
42.00”
12.00”
45.00”
A
B
C
D
E
B
G
