(Fig.C)
(Fig.3)
(D)
(A)
(B)
—
)

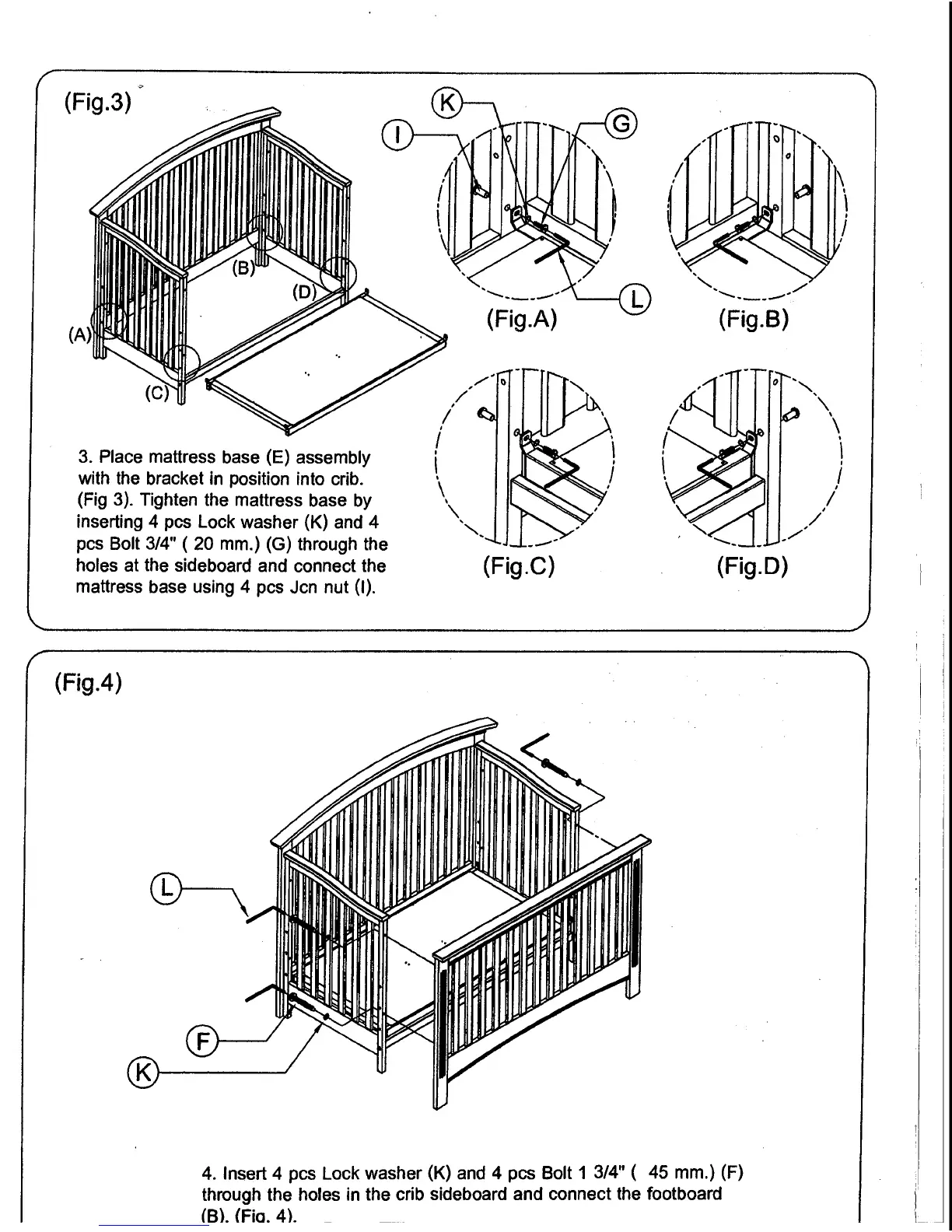

3. Place mattress base (E) assembly
with the bracket in position into crib.
(Fig 3). Tighten the mattress base by
inserting 4 pcs Lock washer (K) and 4
pcs Bolt
3/4"
( 20 mm.) (G) through the
holes at the sideboard and connect the
mattress base using 4 pcs Jcn nut (I).
(Fig.4)
4. Insert 4 pcs Lock washer (K) and 4 pcs Bolt
1
3/4" ( 45 mm.) (F)
through the holes in the crib sideboard and connect the footboard
(B). (Fia. 4).
