Essentielb ELT 813-1b - Installation; Preparation and Trims; Water Supply and Drain Connections

27
EN
2. INSTALLATION


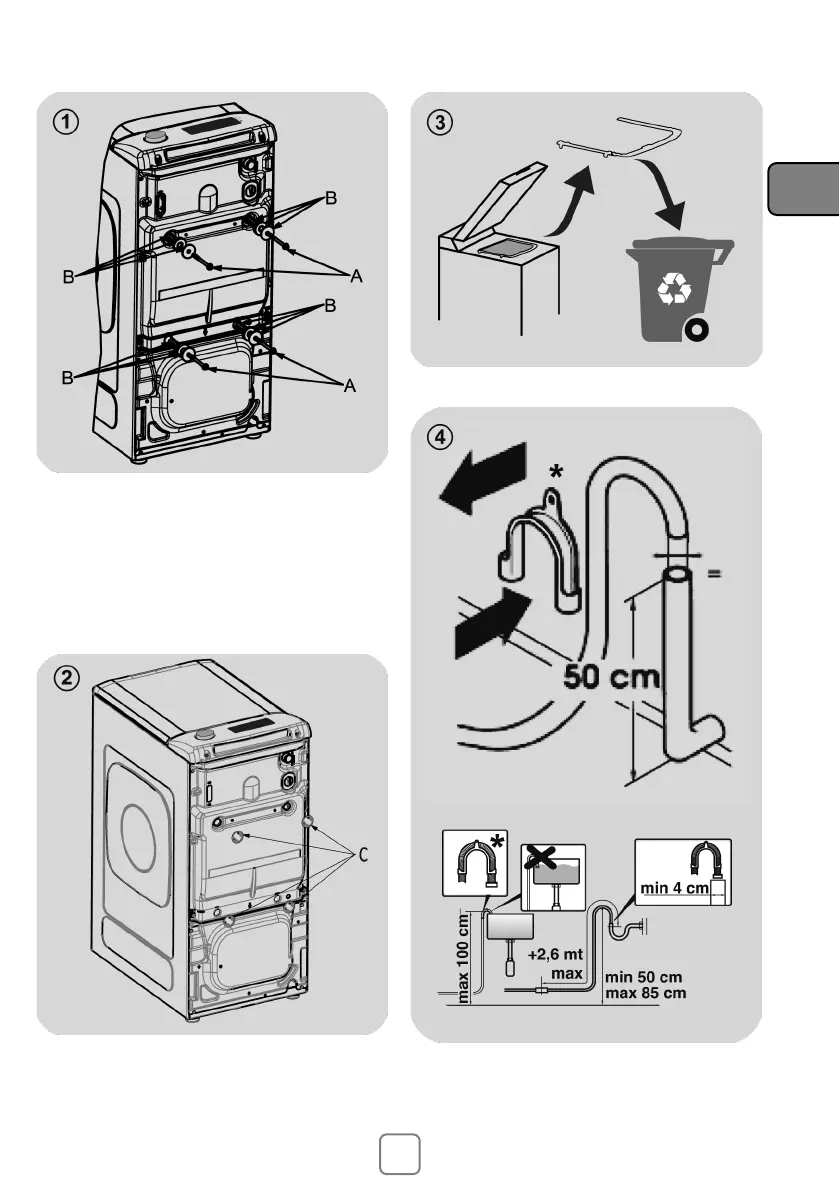

Remove the 2 or 4
transportation
screws (A)
on the back and
remove the 2 or 4
flat washers,
rubber bungs and plastic spacer
tubes (B) as illustrated in figure 1
.

Fit the trims provided " C " ( fig. 2 ).
*
ACCESSORY SOLD SEPARATELY
