4
ASSEMBLY

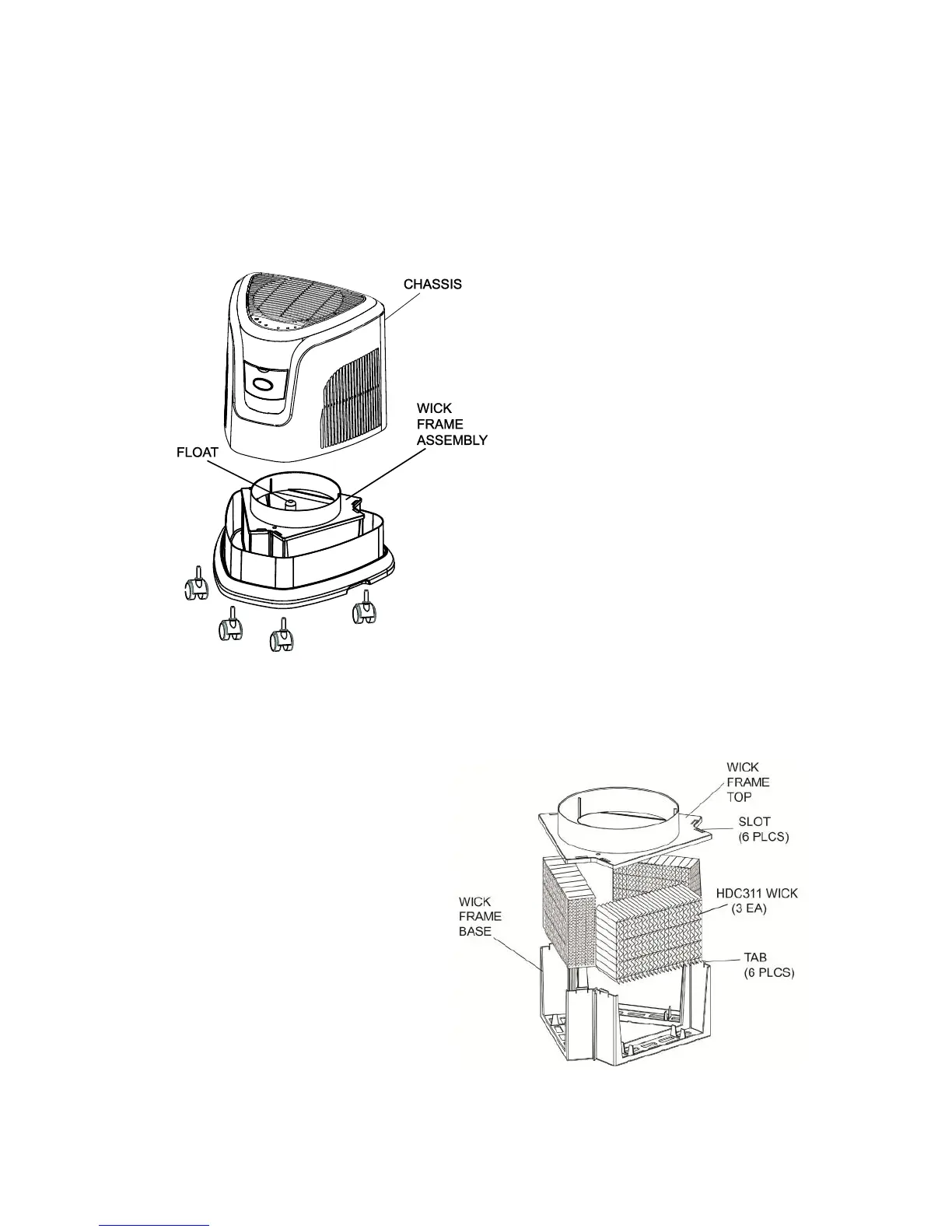

UNPACKING AND SETTING UP THE UNIT
1. Open the carton and lift out the humidifier.
2. Lift the humidifier chassis (top part) off the base to locate the accessory kit
inside, including:
CASTERS
3. Remove wick frame and float
assembly from base.
4. Turn the base upside down.
Insert each caster stem into a
caster hole on each corner of
the humidifier bottom. The
casters should fit snugly and
be inserted until the stem
shoulder reaches the cabinet
surface. Turn the base right
side up. Replace float back in
its place.
EVAPORATIVE WICKS
5. Three (3) HDC311 wicks
(provided) fit into the wick
frame.
6. To replace wicks separate the
wick frame top from the wick
frame base and slide wicks
into each of the three
sections. Secure wick frame
top to the base by positioning
the slots on the top onto the
tabs on the base.
7. Ensure the float is in position,
place the chassis onto the base
and the unit is ready for filling.
