Etec EKEPC3 - Single Phase 230 V AC Wiring Example

7
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile

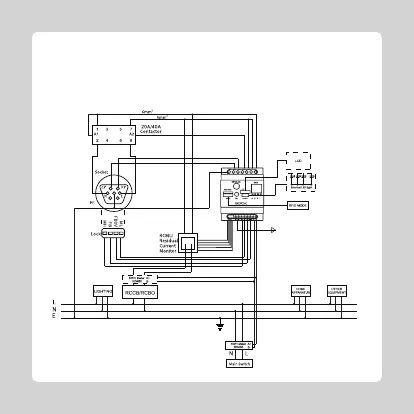

SinglePhase
Wiringexample230VAC
Modbus-RTU
9600，n，8，1
Address：02H
Modbus-RTU
9600，n，8，1
Address：01H
Out:DC 5V/100mA
Iftheconnectionisfor
cabletype,thePPline
isnoneedtoconnecttohere.
