Etec EKEPC3 - Three Phase 400 V AC Wiring Example

8
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile

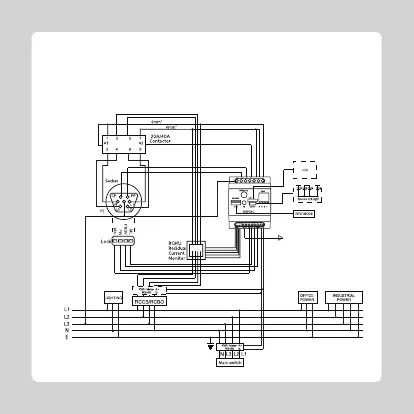

ThreePhase
Wiringexample400VAC
Modbus-RTU
9600，n，8，1
Address：01H
Modbus-RTU
9600，n，8，1
Address：02H
Out:DC 5V/100mA
Iftheconnectionisfor
cabletype,thePPline
isnoneedtoconnecttohere.
