Step 4. Hang the Television Display
A large television requires two people to lift. Schoenfeld International Inc. and ETEC are not
responsible for equipment damage or personal injury due to mishandling.

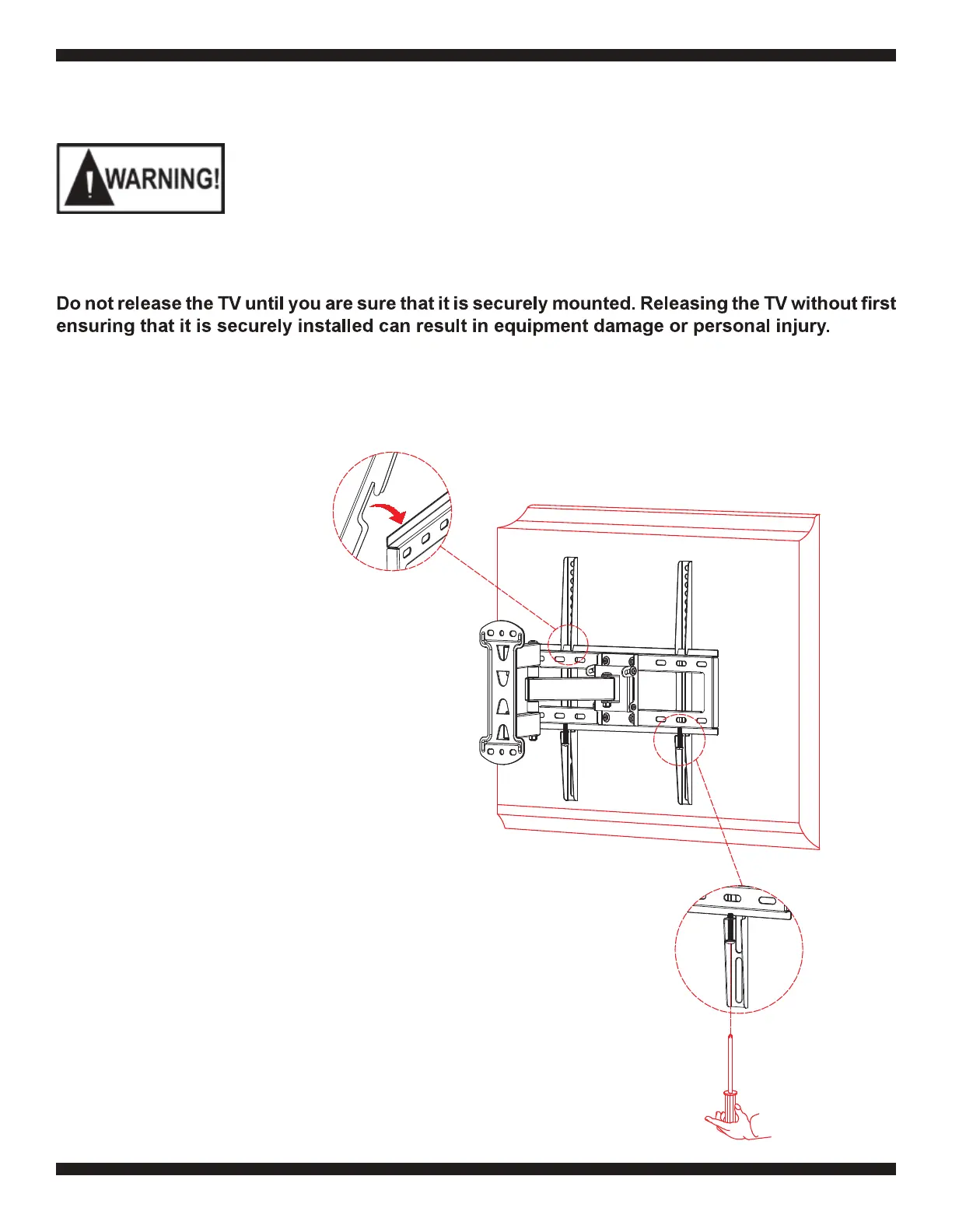

1. Lift the Television display with the brackets attached and carefully hook the Brackets (2) over the
top flange of the Wall Plate (1) as shown in (Fig. 4a) and carefully swing the display down so the
lower part of the Brackets (2) fit over the lower bar of the Wall Plate (1) .
Figure 4a
2. Tighten the safety screw on the bottom of each Bracket (2)
using a screwdriver. This will secure the TV to the mount arm
on the Wall Plate (1). Fig 4b
Figure 4b
Figure 4
