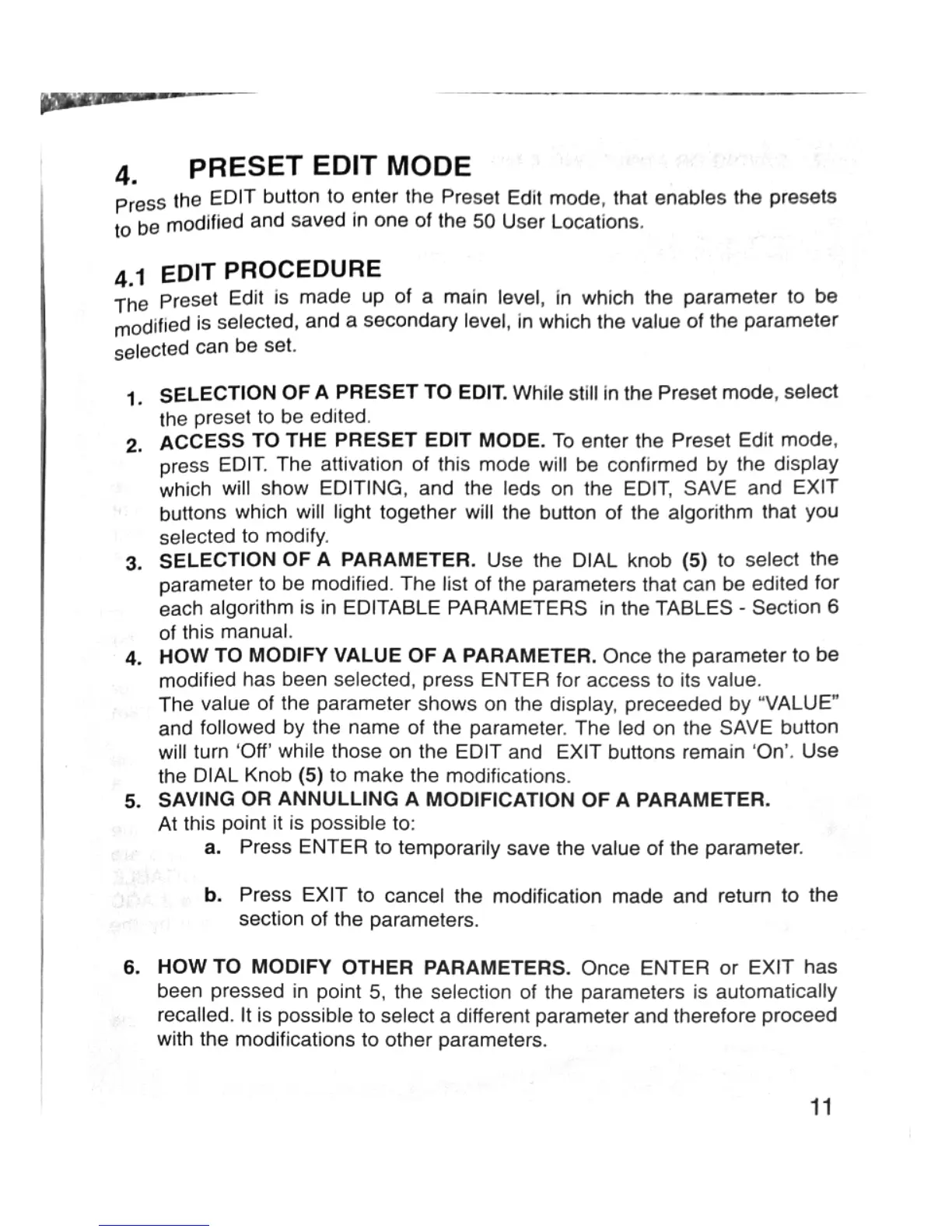

PRESET

EDIT

MODE

Press

me

EDIT

button

to

enter

the

Preset

Edit

mode,

that

enables

the

presets

tn

be

modified

and

saved

in

one

of

the

50

User

Locations.

4,1

eorr

PROCEDURE

-mg

Preset

Edit

is

made

up

of

a

main

level,

in

which

the

parameter

to

be

medified

is

selected,

and

a

secondary

level,

in

which

the

value

of the

parameter

selected

can

be

set.

1

SELECTION

OF

A

PFIESET

TO

EDIT.

While

still

in

the

Preset

mode,

select

the

preset

to

be

edited.

2,

ACCESS

TO

THE

PRESET

EDIT

MODE.

To

enter

the

Preset

Edit

mode,

press

EDIT.

The

attivation

of

this

mode

will

be

confirmed

by

the

display

which

will

show

EDITING,

and

the

Ieds

on

the

EDIT,

SAVE

and

EXIT

buttons

which

will

light

together

will

the

button

of

the

algorithm

that

you

selected

to

modify.

3.

SELECTION

OFA

PARAMETER.

Use

the

DIAL

knob

(5)

to

select

the

parameter

to

be

modified.

The

list

of

the

parameters

that

can

be

edited

for

each

algorithm

is

in

EDITABLE

PARAMETERS

in

the

TABLES

-

Section

6

of

this

manual.

4.

HOW

TO

MODIFY

VALUE

OF

A

PARAMETER.

Once

the

parameter

to

be

modified

has

been

selected,

press

ENTER

for

access

to

its

value.

The

value

of

the

parameter

shows

on

the

display,

preceeded

by

“VALUE”

and

followed

by

the

name

of

the

parameter.

The

led

on

the

SAVE

button

will

turn

‘Off’

while

those

on

the

EDIT

and

EXIT

buttons

remain

‘On’.

Use

the

DIAL

Knob

(5)

to

make

the

modifications.

5.

SAVING

OR

ANNULLING

A

MODIFICATION

OF

A

PARAMETER.

At

this

point

it

is

possible

to:

a.

Press

ENTER

to

temporarily

save

the

value

of

the

parameter.

b.

Press

E)-(IT

to

cancel

the

modification

made

and

return

to

the

f

section

of

the

parameters.

6.

HOW

TO

MODIFY

OTHER

PARAMETERS.

Once

ENTER

or

EXIT

has

I

been

pressed

in

point

5,

the

selection

of

the

parameters

is

automatically

i

recalled.

It

is

possible

to

select

a

different

parameter

and

therefore

proceed

with

the

modifications

to

other

parameters.
