ETNA T300 - Building in

103 INSTALLATION
Building in

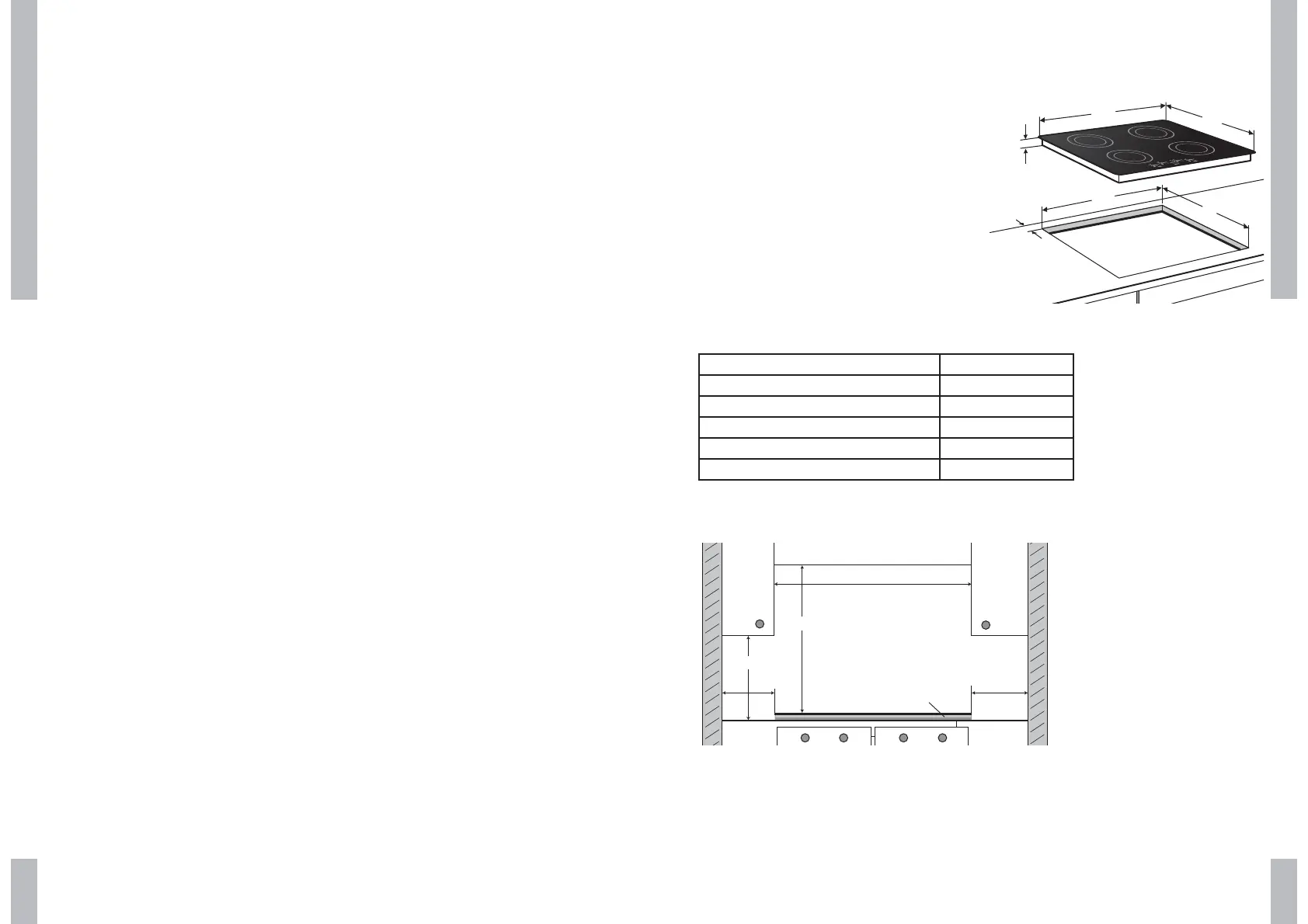

Cut opening in worktop
Saw the opening in the worktop. This should
be done very accurately (see table).
Also saw out any partitions that may be
present.
The distance from the saw line to the rear wall
and/or side wall is indicated in the table.
Table:
Space to be left free around the appliance:
604
512
51
560
490
min.50
Type of hob T300
Appliance width x depth 604 x 512 mm
Installation height from top of worktop 51 mm
Cut out dimensions width x depth 560 x 490 mm
Distance from saw line to rear wall 50 mm minimum
Distance from saw line to side wall 50 mm minimum
min. 600 mm
min. 650 mm
min. 450 mm
min. 40 mm
cooker hood
cabinet
side wall
Ceramic hob
min. 40 mm
Safety prescriptions
For the appliance to work well, it is important:
■ That there is sufficient ventilation to allow
the hob to cool down, in accordance with
the possibilities specified in this chapter.
■ The ventilation air drawn in by the hob
must not be warmer than 35 °C. Bear this in
mind if the oven is to be built in under the
hob.
■ That the connecting cable hangs freely and
is not caught by a drawer.
■ The worktop should be a minimum of 2.8 cm
and a maximum of 5 cm thick.
■ The worktop is flat.
