Master
amplifier
Slave
amplifier
AUTOBODY
REMOTE FROM RADIO
BATTERY FUSE
Master
amplifier
Slave
amplifier
Recommendation: For competition use only!
Use a connection wire between the loudspeaker
negatives (-) of master and slave amplifier.
Make sure to have the minimum cross-section 10mm.
You can also use both MINUS connections

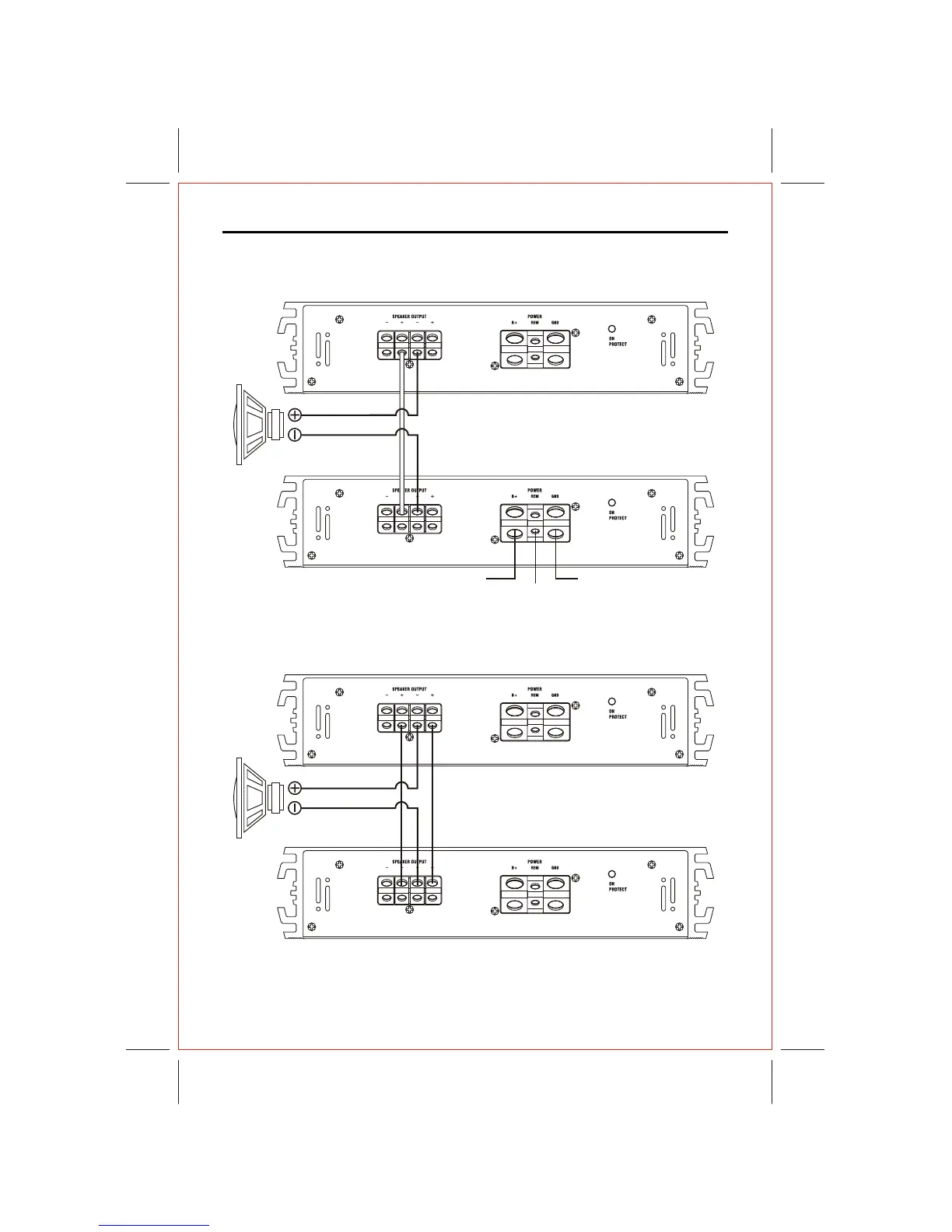

(OPTION) two amplifier/one subwoofer (single voice coil)
Speaker Wiring
MASTER/SLAVE MODE (FA 3000)
