OWNER’S
MANUAL

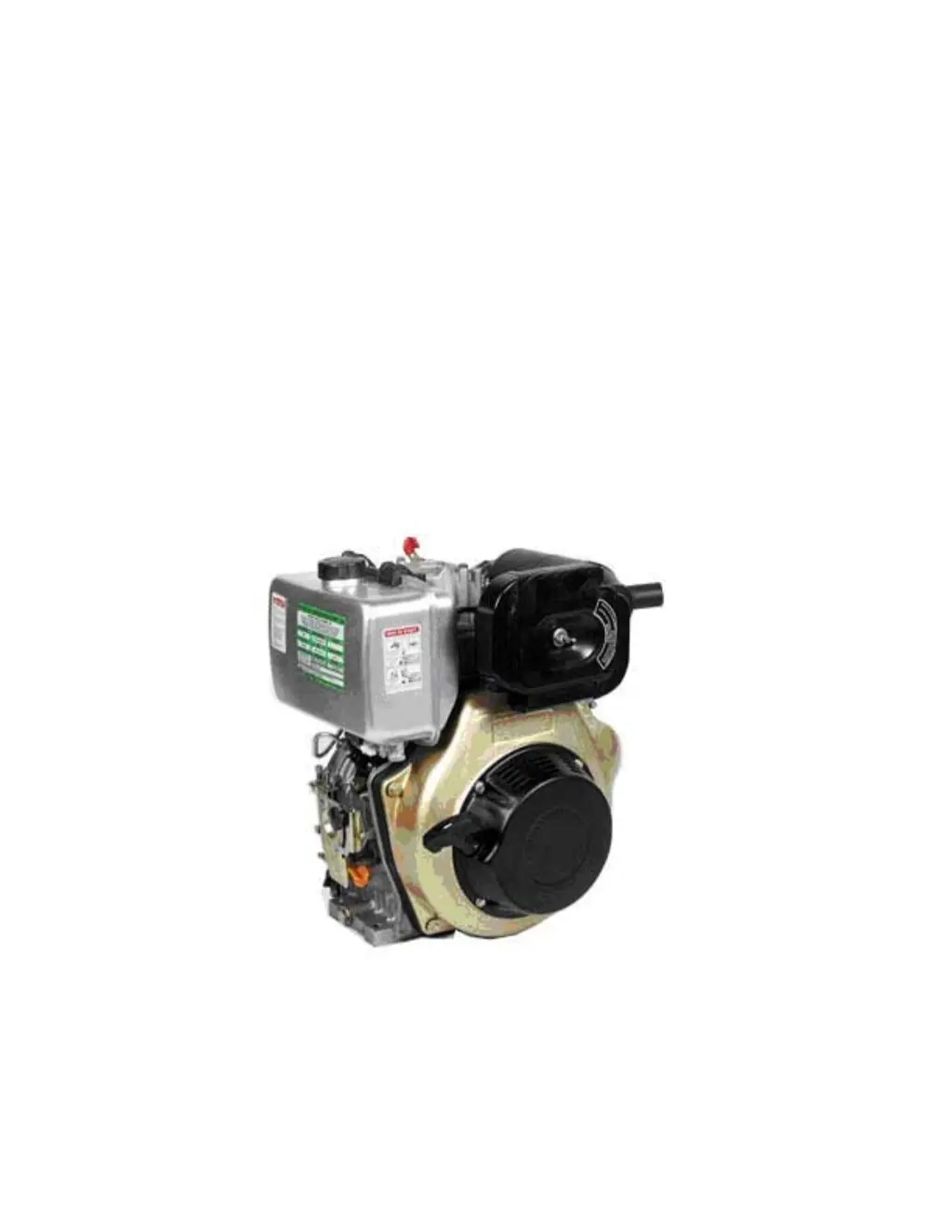

AIR-COOLED DIESEL ENGINE
170F / FE / FS / FSE
178F / FE / FS / FSE
186F / FE / FS / FSE
1

Table of Contents

Questions and Answers

  • N
    Nancy LeonardAug 11, 2025
    What to do if my ETQ 186F Engine stops automatically?
    • J
      Julia MurphyAug 11, 2025
      If your ETQ Engine stops automatically, consider these possible causes: a lack of fuel in the system (add fuel to the tank), a clogged fuel line (clean it out), air in the fuel system (clean the system and replace the fuel), an adhered needle valve of the nozzle (clean or grind the nozzle, replacing it if necessary), a clogged air filter (clean it), or a sudden increase in load (decrease the load).
  • R
    Ryan HoffmanAug 20, 2025
    How to fix very black exhaust from my ETQ 186F?
    • E
      Elizabeth HowardAug 21, 2025
      If your ETQ Engine's exhaust is very black, it could be due to an overloaded engine. Try decreasing the load, or if the driven machine isn't properly fitted, consider changing the engine. Alternatively, there might be a problem with fuel injection; check the injection pressure and spraying conditions, correcting or replacing the nozzle as needed. Insufficient intake air or air leaks could also be the cause; clean the air filter and identify and fix any leaks.
  • J
    Jennifer CurtisAug 26, 2025
    Why is the exhaust from my ETQ 186F very blue?
    • B
      Brian HernandezAug 27, 2025
      A blue exhaust from your ETQ Engine often indicates engine oil is entering the cylinder. Check the oil level and drain any excess. It could also mean the piston rings are worn or their gaps are aligned, allowing oil into the combustion chamber; inspect or replace the piston rings, ensuring the gaps are not aligned. Worn pistons or cylinders, or worn valves or valve guides can also lead to blue exhaust; replace these components as necessary.
  • J
    James OsborneAug 31, 2025
    What does white exhaust from my ETQ 186F mean?
    • Y
      ybryantAug 31, 2025
      White exhaust from your ETQ Engine indicates water in the diesel fuel. Clean the fuel tank and diesel filter, and replace the diesel fuel.
  • M
    Michael NavarroNov 5, 2025
    How to start an ETQ 186F that is not starting?
    • Q
      qmahoneyNov 5, 2025
      If your ETQ Engine isn't starting, several factors could be at play. If the weather is cold, the engine oil may be too thick; preheat the oil before putting it into the crankcase and inlet manifold. Disconnect the belts and run the engine under no load until it heats up, then reconnect the belts. Alternatively, the fuel system might be contaminated with water, in which case you should clean the fuel filter and pipe, replacing the old fuel with new fuel. Other potential issues include thickened fuel (use the correct specific fuel), air in the fuel system (drain the air and fuel, then tighten the fuel pipe connectors), or insufficient fuel being injected (check the speed governor handle and clean the fuel injector spray nozzle, and if needed, replace the fuel pump or nozzle). Incomplete comb...
  • R
    Russell HornNov 15, 2025
    Why does my ETQ Engine lack power?
    • T
      Tracy SweeneyNov 15, 2025
      If your ETQ Engine lacks power, the issue might stem from several causes. A clogged fuel system, due to a clogged fuel line or filter, could be the culprit; clean the fuel filter and pipe, and ensure the fuel switch is fully open. A bad fuel pump may also be responsible; service or replace any damaged parts. Other potential problems include an incorrectly operating nozzle or incorrect injection pressure (adjust the injection pressure), carbon deposits in the spray hole (clean it out), an adhered needle valve (clean or change it), or a loose fitting between the needle valve and its body (replace either the valve or the body). A dirty air filter (disassemble and clean it) or an engine running too slowly (check the tachometer speed and adjust the high speed limiting screw) could also contribu...

Summary

PREFACE

Engine Features and Highlights

Overview of key features of the diesel engine, including its design and capabilities.

SAFETY PRECAUTIONS

EXHAUST PRECAUTIONS

Guidelines for safe handling of engine exhaust gases to prevent health hazards.

REFUELING PRECAUTIONS

Instructions for safe refueling procedures to prevent spills and fires.

FIRE PREVENTION

PROTECTIVE COVER

Importance of using protective covers for rotating parts and caution regarding hot engine components.

SURROUNDINGS

PRE-OPERATION CHECKS

Essential checks to perform before starting the engine for safe operation.

Chapter 1 Technical Specifications and Data

1-1 Technical specifications in English Units

Detailed technical specifications for the engine models in English units.

Technical specifications in SI units

Detailed technical specifications for the engine models in SI units.

1-2 Overall engine dimensions

Visual representation and dimensions of the engine models.

1-2.1 Allowed clearance between belt wheel and engine

Specifications for optimal belt pulley wheel to engine clearance.

1-2.2 Crankshaft driving angles

Guidelines on allowed crankshaft driving and tilt angles for safe operation.

1-2.3 Electric circuits information

Information regarding electric circuits and recommended accumulator ratings.

1-2 Diesel Engine shaft specifications

Detailed specifications for various types of engine shafts.

1-4 Names of Diesel Engine Parts

Identification of key components of the diesel engine.

1-5 Valve timing and clearances

Data on valve timing, fuel delivery angle, and valve clearances.

1-6 Temperature and pressure specifications

Temperature ranges and injection pressure specifications for engine operation.

1-7 Torque specifications

Torque specifications for various engine nuts and bolts.

CHAPTER 2 DIESEL ENGINE OPERATION

Safe operation guidelines

Essential safety points for operating the diesel engine.

Fuel choices and treatment

Guidance on selecting and treating diesel fuel for optimal engine performance.

Starting the Diesel Engine

Procedures for starting the diesel engine using recoil or electric systems.

Running and stopping the engine

Instructions for running the engine and proper procedures for stopping it.

CHAPTER 3 TECHNICAL MAINTENANCE

Daily checks and maintenance

Routine checks to perform daily for engine upkeep.

Regularly checks and maintenance

Scheduled maintenance tasks to ensure engine longevity and performance.

Storing the engine for long periods

Procedures for properly storing the engine when not in use.

CHAPTER 4 PART LISTINGS

Engine Block Parts

Detailed list and diagrams of engine block components.

Cylinder head Assembly Parts

List and diagrams of parts for the cylinder head assembly.

Piston, connecting rod, crankshaft parts

Components related to the piston, connecting rod, and crankshaft assembly.

Fuel System Parts

Identification of all parts belonging to the fuel system.

Oil and speed control system parts

Components for the engine's oil and speed control systems.

Cooling and recoil starting system parts

Parts list for the engine's cooling and recoil starting mechanisms.

Air cleaner and silencer system parts

Components of the air cleaner and silencer system.

CHAPTER 5 ENGINE TROUBLESHOOTING

Engine not starting

Common causes and remedies for an engine that fails to start.

Engine lacks power

Diagnosing and fixing issues related to reduced engine power.

Engine stops automatically

Troubleshooting steps for an engine that stops unexpectedly during operation.

Engine exhaust very black

Identifying causes for black exhaust smoke and corrective actions.

Engine exhaust very blue

Diagnosing issues causing blue exhaust smoke and recommended fixes.

PREFACE

Features of Air-Cooled Diesel Generators

Overview of the key features and benefits of the generator set.

CHAPTER 1. TECHNICAL SPECIFICATIONS AND DATA

Technical specifications in SI units

Performance and dimensional data of generator models in SI units.

Technical specifications in English units

Performance and dimensional data of generator models in English units.

1-2 Basic operating parameters

Key parameters for generator operation under various conditions.

1-3 General dimensions and overview

General physical dimensions and layout of the generator units.

1-4 Electric wiring diagrams

Schematics showing electrical connections for generator models.

CHAPTER 2 OPERATING THE DIESEL GENERATOR

2-1 General main points of safety during operation

Comprehensive safety guidelines including fire, exhaust, electrical hazards, and battery handling.

2-2 Preparation before operation

Steps for preparing the generator, including fuel, oil, air filter checks, and engine break-in.

2-3 Checking the operation of the diesel engine

Procedures for verifying the diesel engine's operational status.

2-4 Starting the generator set

Step-by-step instructions for starting the generator using manual or electric methods.

2-4.3 Battery maintenance

Guidelines for maintaining the generator's battery for optimal performance.

2-6 Proper operation of the generator set

Detailed instructions on operating the generator, including checks and adjustments.

2-7 Loading the generator

Guidance on applying loads and managing electrical output.

2-7.3 Charging the battery

Procedures for charging the generator's battery.

2-8 Stopping the generator

Correct methods for safely stopping the generator.

CHAPTER 3 MAINTENANCE

3-1 Maintenance schedules

Recommended maintenance intervals and tasks for the generator.

3-2 Storing for long periods

Procedures for preparing and storing the generator for extended periods.

CHAPTER 4 TROUBLESHOOTING

4-1 Troubleshooting procedures

Common issues and their solutions for generator malfunctions.

4-2 Questions and doubts

Information to have ready when contacting support for issues.

CHAPTER 5 GENERATOR PARTS DIAGRAMS AND LISTINGS

LIMITED WARRANTY

About Your Product Warranty

Overview of warranty terms, coverage, and limitations.

PRODUCT REGISTRATION CARD

Information and form for product warranty registration.

Appendix

Attached list of tools, fittings, and subassemblies

List of included tools, fittings, and subassemblies with the generator.

Attached technical documents

List of supplementary technical documents provided with the generator.
