32

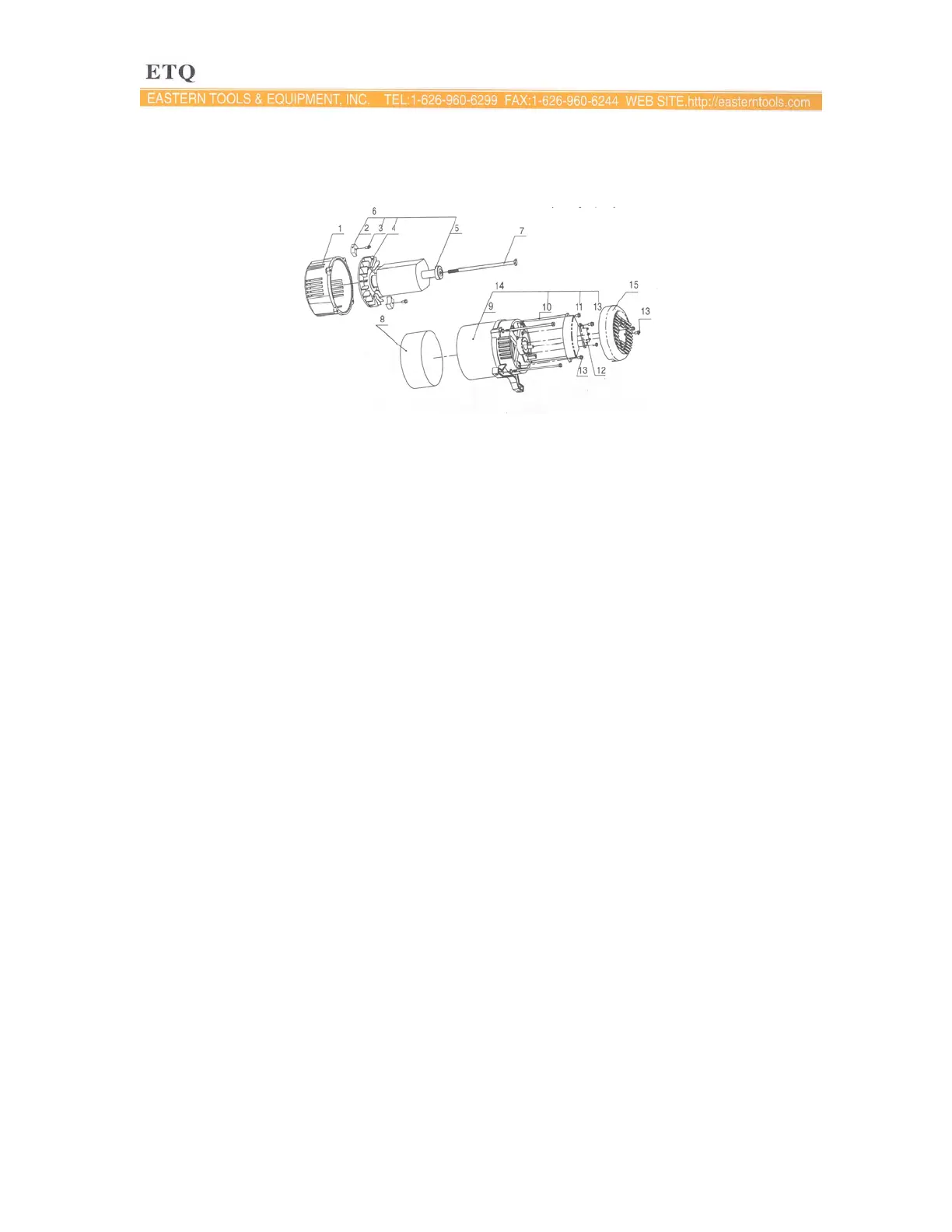

Figure 5-5. Generator head assembly
Table 5-4. Please refer to figure 5-5
Number Part Description Quantity Part Number (4LE / 6LE)
1 Front end cover 1 ETQ4LE96 / ETQ6LE96
2 Diode 2 ETQ4LE97 / ETQ6LE97
3 M4 x 8 Bolt 2 ETQ4LE98 / ETQ6LE98
4 Fan Blade 1 ETQ4LE99 / ETQ6LE99
5 Bearing 1 ETQ4LE100 / ETQ6LE100
6 Rotor Unit 1 ETQ4LE101 / ETQ6LE101
7 Center bolt 1 ETQ4LE102 / ETQ6LE102
8 Motor cover 1 ETQ4LE103 / ETQ6LE103
9 Stator 1 ETQ4LE104 / ETQ6LE104
10 Long bolt 4 ETQ4LE105 / ETQ6LE105
11 Capacitor 1 ETQ4LE106 / ETQ6LE106
12 Wiring Seat 1 ETQ4LE107 / ETQ6LE107
13 M5 x 15 Bolt 6 ETQ4LE108 / ETQ6LE108
14 Stator Unit 1 ETQ4LE109 / ETQ6LE109
15 Dust Cover 1 ETQ4LE110 / ETQ6LE110
