6
Installation - Assembly Procedures
26487-02A

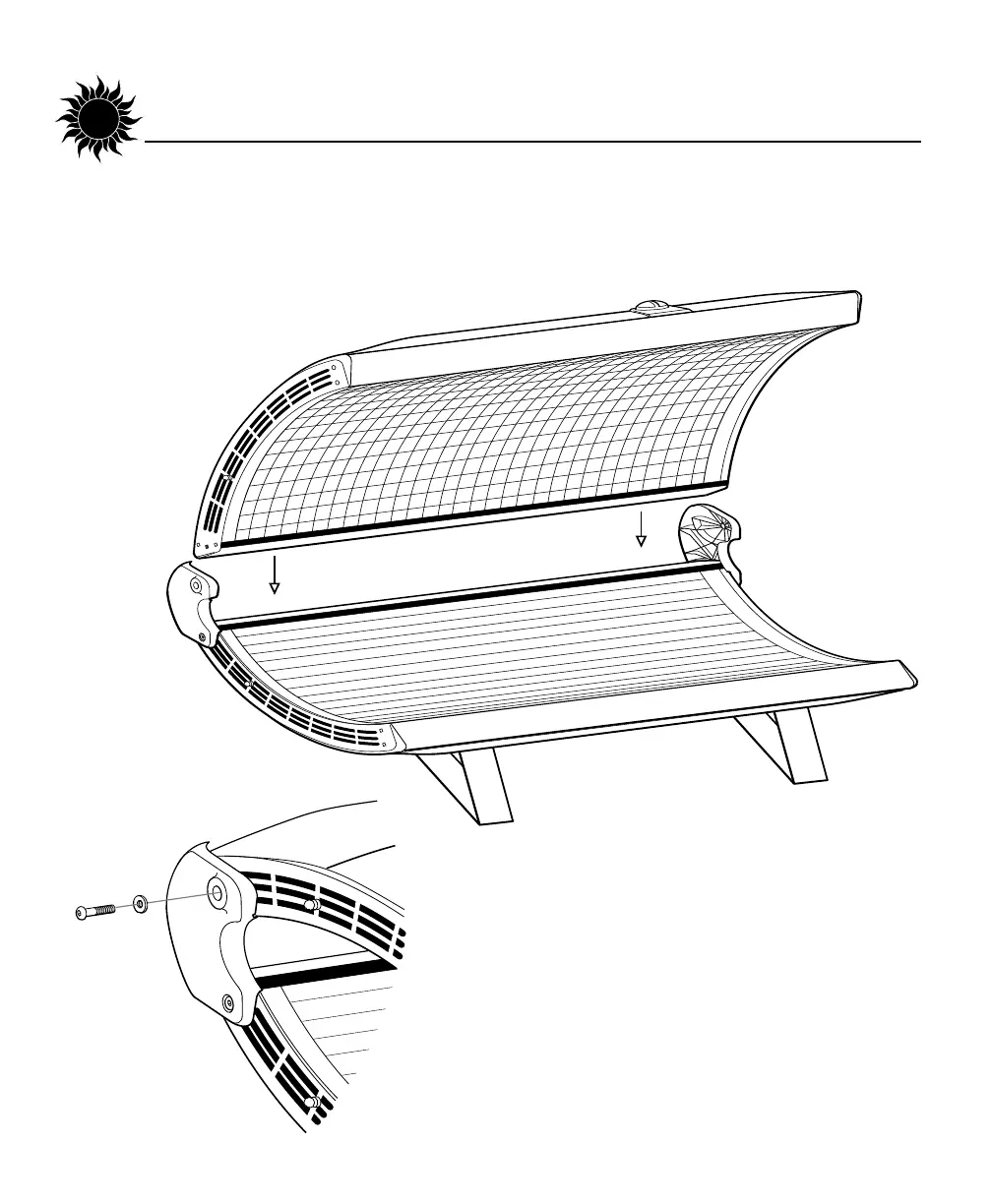

Attaching Canopy to Bench
1. Lift the canopy and hold it between
the hinge brackets. You may want to
use some of the cardboard packing,
laid across the bench, to support the
canopy.
2. Insert the 5/16” x 1 1/2” bolts with
the nylon washers into both hinge
brackets. Tighten bolts into the end-
cap threaded inserts until snug, then
an additional half turn. Do not over-
tighten to avoid damaging threaded
inserts.
