EUFAB 11446 User Manual

4
GB Expansion set for a third bicycle, suitable for CARLO PLUS, Article No. 11439
Article Number 11446
Overview
• Intended use • Scope of delivery • Specications • Safety notes • Operating instructions • Care and maintenance • Contact information
WARNING
Read the operating instructions through carefully prior to initial use and observe all of the safety notes!
Not observing such may lead to personal injury, damages to the device or your property!
Store the original packaging, the receipt and these instructions so that they may be consulted at a later date!
Prior to initial use check the contents of the packaging to ensure that they are in perfect condition and complete!
Intended use
This retrotting set is used to extend the EUFAB trailer coupling rack CARLO PLUS, Article No. 11439, to include an additional space for a third
bicycle.
Scope of delivery
• 2 wheel rails
• 1 frame holder
• 2 wheel stoppers
• 4 end caps
• 3 small tensioning belts
• 1 tension relief strap with clamp lock and rubberised hook
• 4 carriage bolts with washers and self-tapping nuts
• Operating instructions
• Only for the EUFAB CARLO PLUS bicycle rack, article number 11439
• Weight: 1.195 kg
• Colour: Silver
Specications
Safety notes
1. Keep children away and do not allow children to operate this device!
2. Only use this product as intended!
3. Do not manipulate or dismantle the device!
4. For your own safety, only use accessories and spare parts that are stated in these Instructions or are recommended by the manufacturer!
Operating instructions
Installation of the expansion unit to the existing bicycle rack

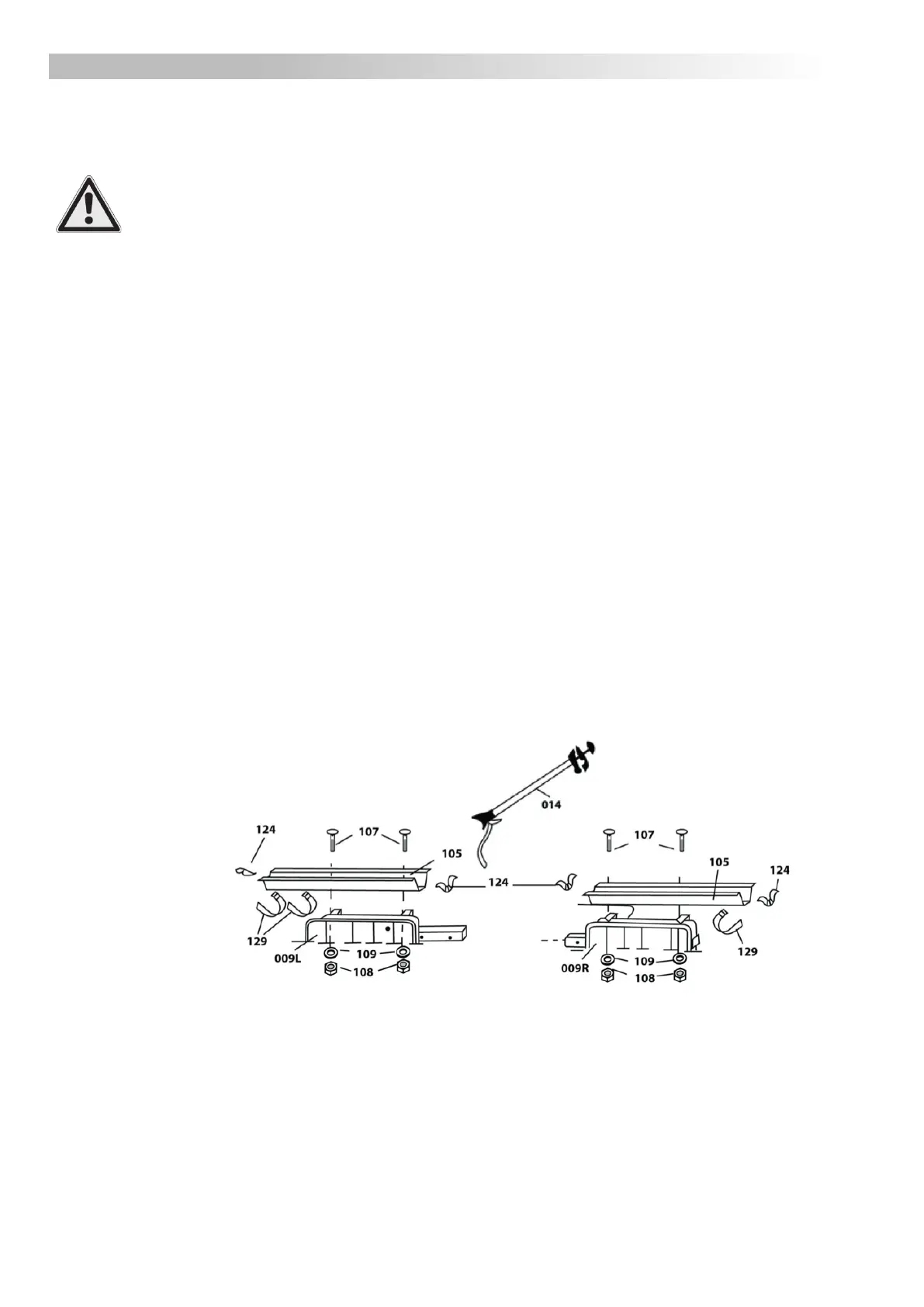

Figure 1
Secure the wheel rails (105) using the carriage bolts (107), the washers (109) and the self-tapping nuts (108) to the lamp holders (009L) and
(009R) of your EUFAB CARLO PLUS bicycle rack. Fit the end caps (124) onto the ends of the rails.
Clip one wheel stopper to a wheel rail in such way that the high side of the wheel stopper faces the middle of the rack. Feed one short tensioning
strap (129) through the middle, side openings of the wheel stopper, from the top under the wheel rail and on the other side, from below through
the openings of the wheel stopper. The remaining strap is used later to correctly secure the front wheel of the third bicycle.
Securing the third bicycle
Secure the frame holder (014) to the frame of the second bicycle. Place the third bicycle in the wheel rail and secure it at the free end of the frame
holder. Slide the wheel stopper from the middle of the bike rack up to the bike tyre and secure the rear wheel with a short tensioning strap (129)
and the front wheel with two short tensioning straps (129) (see Figure 2). Now secure the bicycles with the long safety strap (included in the
scope of delivery of the bicycle rack). Wrap the safety strap through the bicycle frames and around the U-shaped bar and tighten (see Figure 3).

EUFAB 11446 Specifications

General

Brand	EUFAB
Model	11446
Category	Bicycle Accessories
Language	English
