11

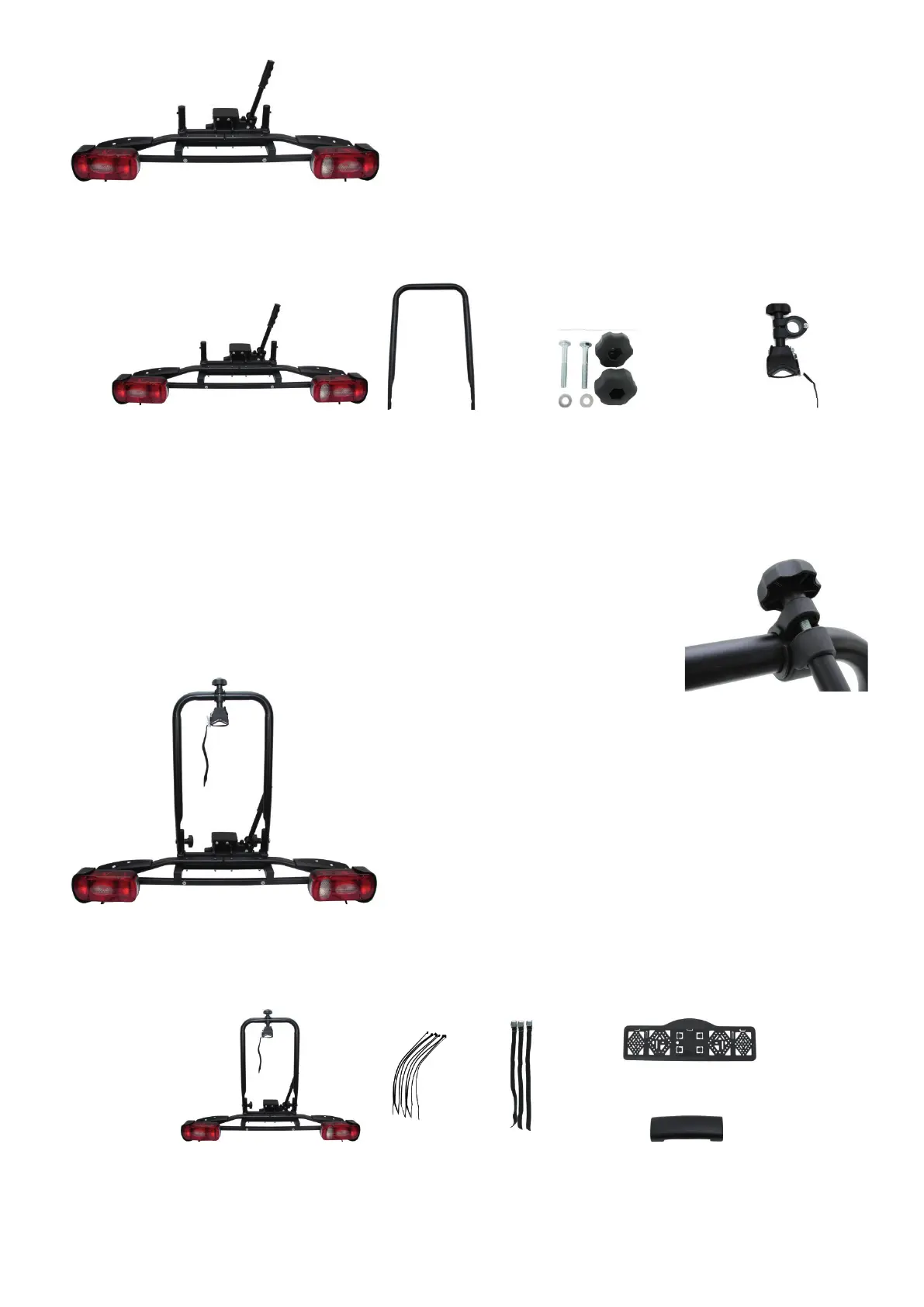

Result of Step 1
Step 2
Components:
6.1.3 Mounting the U-bracket
Place the U-bracket on the U-bracket mount of the base frame. Secure the U-bracket with the supplied lock screws (M8 x 60), washers and knob
nuts M8. The knob nuts must be mounted on the inside.
Caution: You must tighten both knob nuts very rmly to ensure that the U-bracket is ush against the U-bracket mount.
6.1.4 Mounting the frame holder
Undo the handle screw of the frame holder and rotate out fully. Open the cu of the frame holder and place
the inserts around the U-bracket at a position suitable for your bicycle. Place the cu around the inserts and
push rmly together. Close the frame holder using the handle screw (but do not tighten).
Result of Step 2
Step 3
Components
6.1.5 Mounting the license plate holder
Remove the screws from the lamp mount before installing the license plate holder and then mount the license plate holder. The license plate
holder must be at the same height as the lights.
To Next Page
