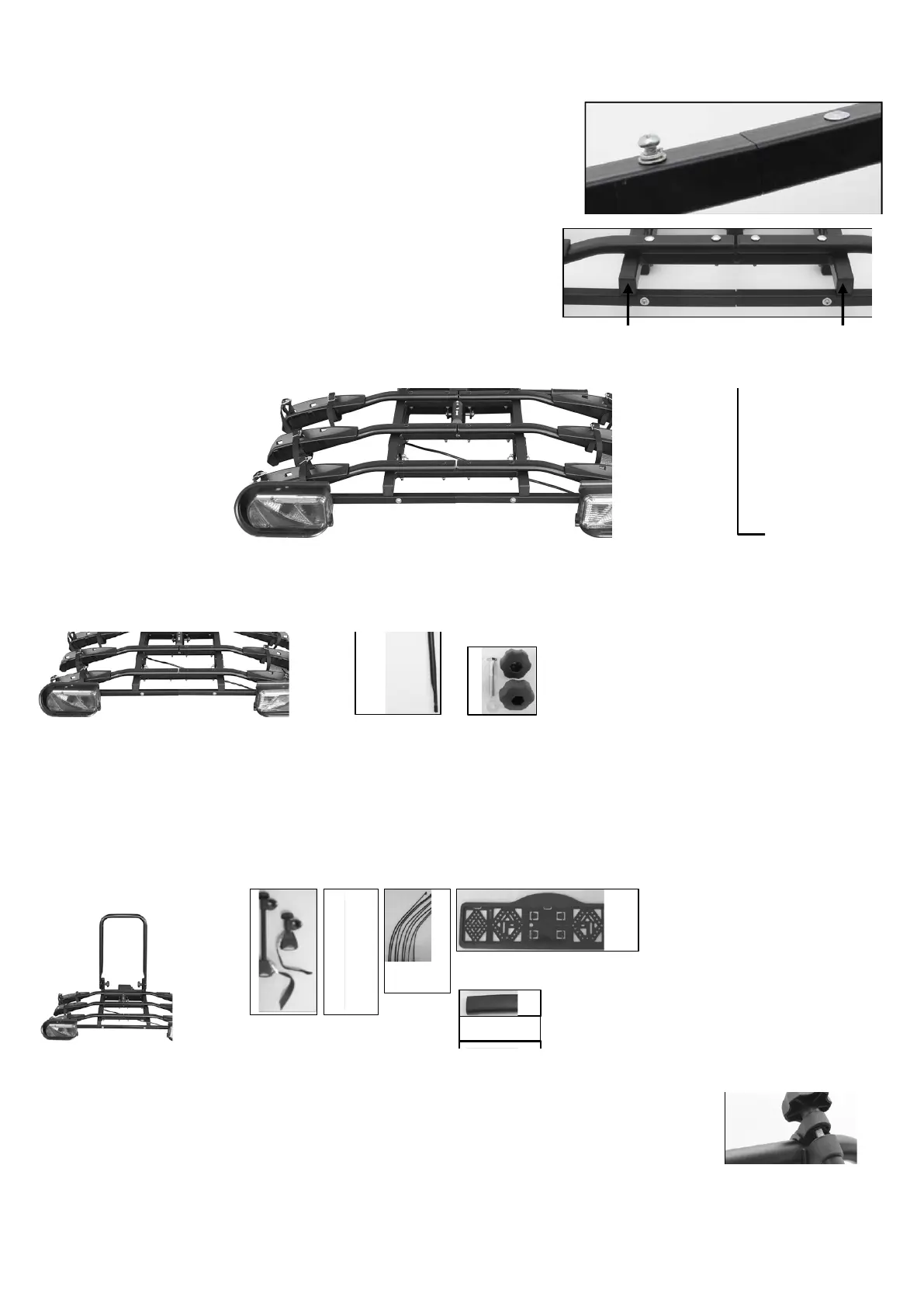

Assembly

Two wheel rails form a pair. Place three pairs of wheel rails, with the plastic shells on the outside, so that they are parallel on the base frame and the drilled holes in

the rail match the holes in the base frame. Secure each wheel rail to the base frame with the lock screws M6 x 50, washers and self-tapping nuts M6.

Join the two halves of the lamp mount set together. This is made easier by the small

guide element which is already mounted on one side. Push the rails together and

secure the connection with the cross-headed screw (M5x12), spring washer and

washer.

Insert the cross-headed screws M5 x 35 with spring washers and washers, from

below, through the vertical drilled holes of the lamp mount. Insert the screws th-

rough the threaded holes on the underside at the end of the lamp mount. Tighten

the screws.

Make sure that the fog light is installed on the left side of the mount!

Assembly

Place the U-bracket on the U-bracket mount of the base frame. Secure the U-bracket with the supplied lock screws (M8 x 60), washers and knob nuts M8. The knob

nuts must be mounted on the inside (see photograph).

Caution: You must tighten both knob nuts very rmly to ensure that the U-bracket is ush against the U-bracket mount.

Step 2

Components

Step 3

Components

Mounting the frame holder

Undo the handle screw of the frame holder and rotate out fully. Open the cu of the frame holder and place the inserts around

the U-bracket at a position suitable for your bicycle. Place the cu around the inserts and push rmly together. Close the frame

holder using the handle screw (but do not tighten).

Mounting the license plate holder

Remove the screws from the lamp mount before installing the license plate holder and then mount the license plate holder.
