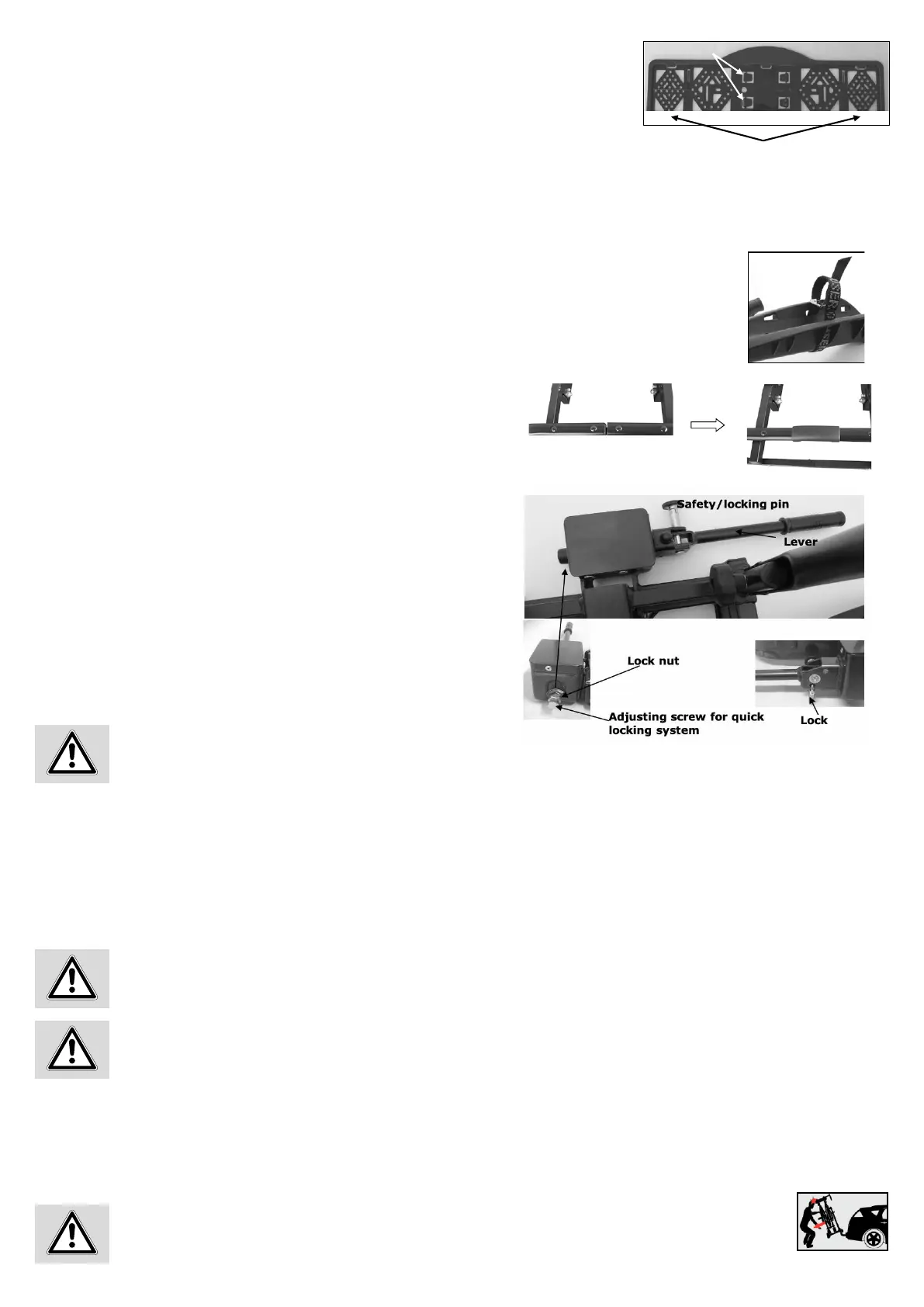

Inserting the license plate

Laying electrical cables

The mounting clips for securing the license plate are push-out parts in the holder. Break out two of the clips.

Slide the license plate into the holder, then push the clips into the cut-outs to secure the license plate.

Clips

Aussparungen

Cut-outs

Secure the cables of the lights to the underside of the rack using the supplied cable ties. Make sure that the cables cannot be damaged when lowering and raising

the rack.

Mounting the short tensioning straps

Insert the short tensioning strap from the inside to the outside below the bike holder and then from the outside to the inside through

the slots of the bike holder (see photograph).

Attaching the plastic covers

Mounting the bicycle rack on the trailer tow bar

The padlock must always be used as additional security when using the bicycle rack.

Fit the plastic covers onto the middle of the wheel rails.

Before you put the bicycle rack on the trailer tow bar, familiarise yourself with the

quick locking system.

Ensure that the trailer tow bar is undamaged, clean and free of grease.

The quick locking mechanism is a component with a lever. Activating the lever

opens or closes the quick locking mechanism. With the help of the securing bolt

and the padlock, the quick locking system may be locked and secured.

Folding mechanism

Caution: Always make sure that the lock nut of the adjusting screw is correctly tightened!

Slight signs of pressure on the two bar ball are normal and do not inuence the functionality.

If you wish to operate the folding mechanism, always hold the U-bracket with one hand to ensure that the

rack is not able to fold out suddenly. (Risk of injury)

Park your vehicle on a level surface. Switch the motor o and pull on the brake. Remove the securing bolt from the quick locking mechanism and rotate by 90° to

prevent it from engaging again. Open the quick locking mechanism by lifting the lever. Place the rack, from above, horizontally onto the trailer tow bar. Push the lever

of the quick locking mechanism down (force required is approximately 35 - 40kg) as far as it will go (the lever will remain in the horizontal position).

Check whether the bike rack is securely and rmly positioned on the trailer tow bar and can no longer be rotated. If this is not the case, the quick locking mechanism

must be readjusted. Lift the lever and remove the rack from the trailer tow bar. Undo the lock nut of the adjusting screw and rotate the adjusting screw on the quick

locking mechanism tighter by a quarter turn. Then tighten the lock nut again. Replace the rack back on the trailer tow bar and check whether the rack is securely and

rmly positioned on the tow bar. Repeat the adjustment process until the rack is secure and rm.

When the rack is rmly seated on the trailer tow bar, rotate the securing bolt of the quick locking mechanism until it engages. Now close the quick locking mechanism

with the supplied padlock and remove the key from the lock. Store the key carefully and in a safe place. The bicycle rack is now secured to prevent theft.

Regularly check the rm seating of the rack on the trailer tow bar as well as the attachment of the bicycles to the rack. Also regularly check the functions of the lighting

system of your bicycle rack.
