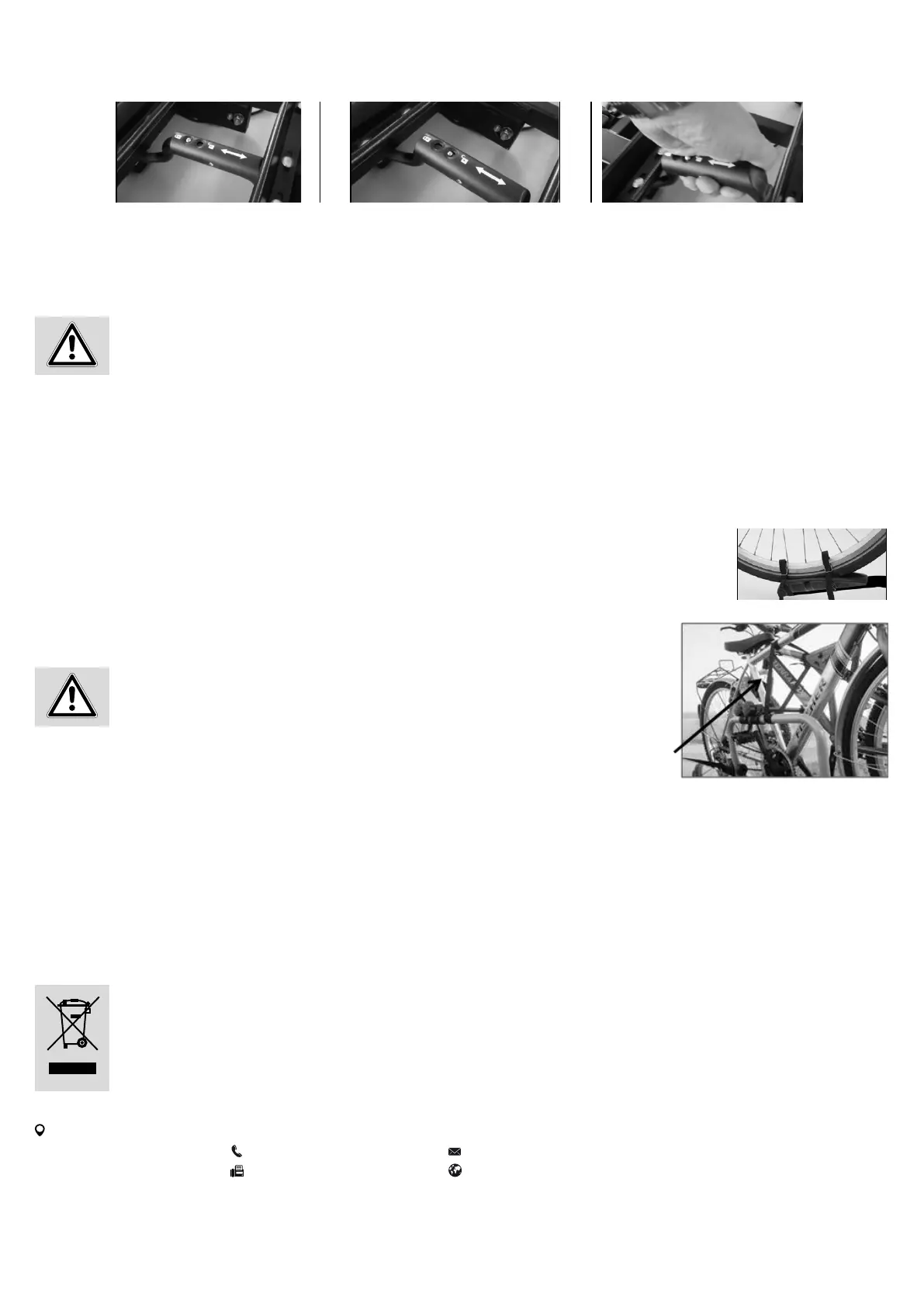

Folding the bicycle rack up
To open the car boot, you may fold the rack down, even if bicycles are mounted. To do this, rst loosen the block of the folding mechanism by pushing the locking
bolt down (1) and pushing the handle away from you (1). Hold the U-bracket or bicycles with one hand, with the other hand pull the lever of the folding mechanism
upwards (1). Now you can fold the rack down.
Raising the rack platform engages it back into the transport position (you will hear a click). Secure the folding mechanism again by pushing the locking bolt down
and pulling the handle towards you.
The rack may not be used without the additional lock securing mechanism.
The bicycle rack may not be used without this safety strap.
Mounting the bicycles to the rack
Since the frame holders are not tied to any specic position, you may try out a number of positions. It is important to ensure that the frame holder is tted as high as
possible. Position the rst bicycle in the rst wheel rail (the wheel rail closest to the vehicle). Connect the frame of the bicycle to the U-bracket using the short frame
holder. Place the second bicycle in the middle wheel rail, facing the opposite direction to the rst. Connect the frame of the second bicycle to the U-bracket using the
long frame holder. Place the third bicycle in the third wheel rail, facing the opposite direction to the second. Connect the frame of the third bicycle using the loose
frame holder (the one with two tensioning straps) to the frame of the second bicycle.
Secure the wheels with the supplied short tensioning straps. Use one tensioning strap to secure the rear wheel and two for the
front wheel (see picture) to prevent them from turning.
Now secure the bicycles with the long safety strap. Wrap the safety strap through the bicycle frames and the U-shaped
bar and tighten.
The bicycles are removed in reverse order.
safety strap
8. NOTES FOR ENVIRONMENTAL PROTECTION
9. CONTACT INFORMATION
Due to its lighting system, the bicycle carrier is an electrical device. Do not dispose of electrical appliances in household waste! Discarded electrical
and electronic equipment must be collected separately and recycled in an environmentally sound manner. Contact your municipal or city government
on how to dispose of old electronic equipment. The materials are recyclable. You are making an important contribution to protecting our environment
through recycling, material recycling or other forms of re-utilising old appliances!
EAL GmbH
Otto-Hausmann-Ring 107
42115 Wuppertal, Germany
+49 (0)202 42 92 83 0
+49 (0) 202 42 92 83 – 160
info@eal-vertrieb.com
www.eal-vertrieb.com
7. MAINTENANCE
• After use, store the bicycle rack in a clean and dry place. Wash any mud or other dirt o using water.
• Keep the trailer coupling clean and free of grease
• Keep the rack tow bar clean and free of grease.
• Check the bicycle rack regularly for damages. Damaged or worn parts must be replaced immediately. Only original replacement parts may be used.
• Check the bolts and nuts of the bicycle rack regularly and tighten when necessary.
• Immediately treat any damage to paintwork with paint.
• Regularly lubricate rotating and moving parts.
