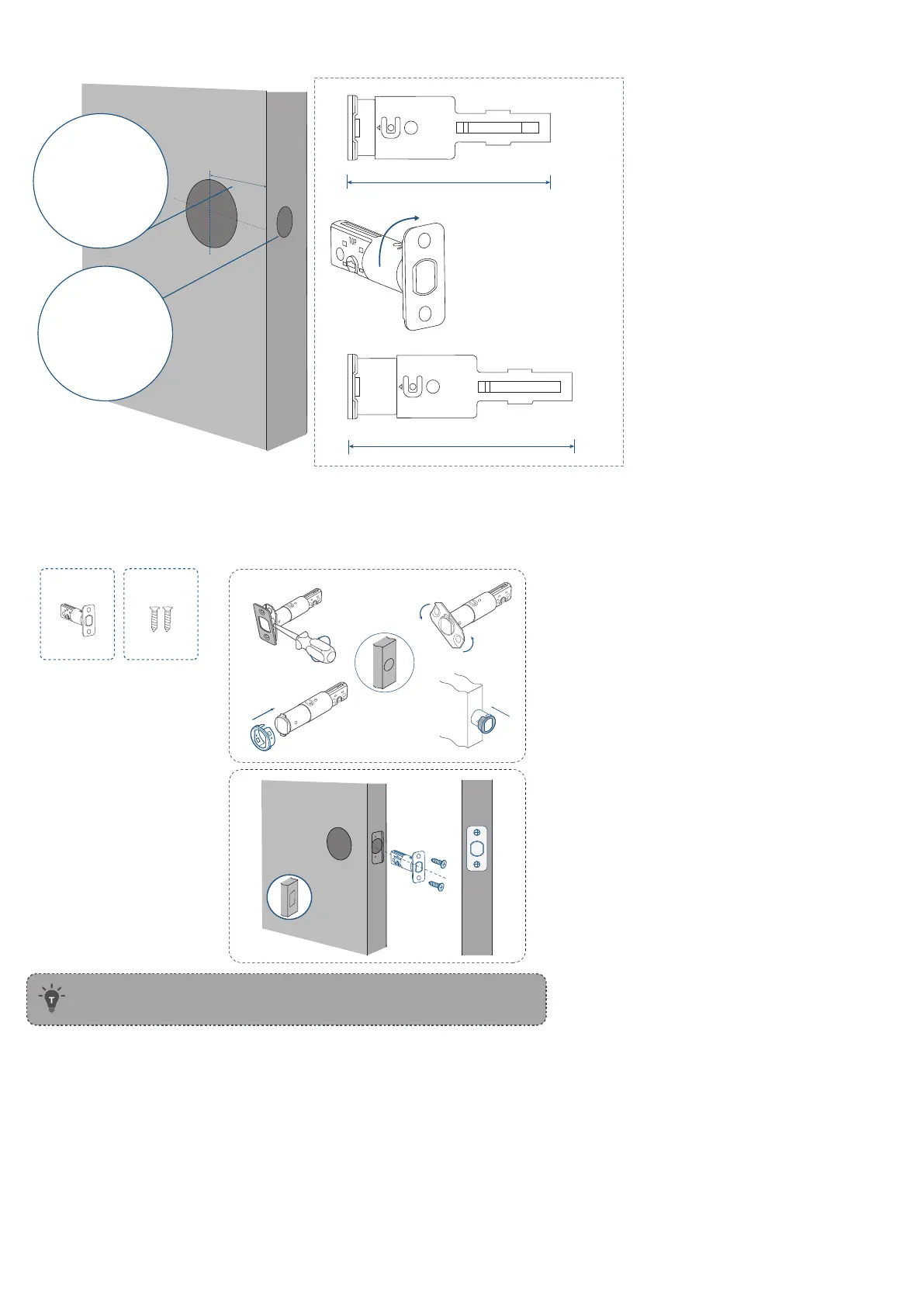

Step 2 Install Deadbolt
1. Check your door to see if the deadbolt requires adjustment.
2-3/8
2-3/4
180°
2ˆ in / 60 mm
2¾ in / 70 mm
If the backset is 70 mm,
turn the faceplate 180° to
extend the length.
Backset
Latch Hole
2. Insert and screw the deadbolt into the doorframe.
*Check the latch recess before inserting the deadbolt.
If the latch recess is round, refer to diagram A.
If the latch recess is rectangular, refer to diagram B.
❷❶
❸ ❹
Diagram A
Diagram B
A B
If the latch hole is round, contact
customer service to receive a
round drive-in faceplate, then
replace the existing one.
Make sure the
word "TOP" on
the deadbolt
faces up.
• If your faceplate recess is round-shaped, contact eufy Customer Service for
a rounded faceplate.
To Next Page
