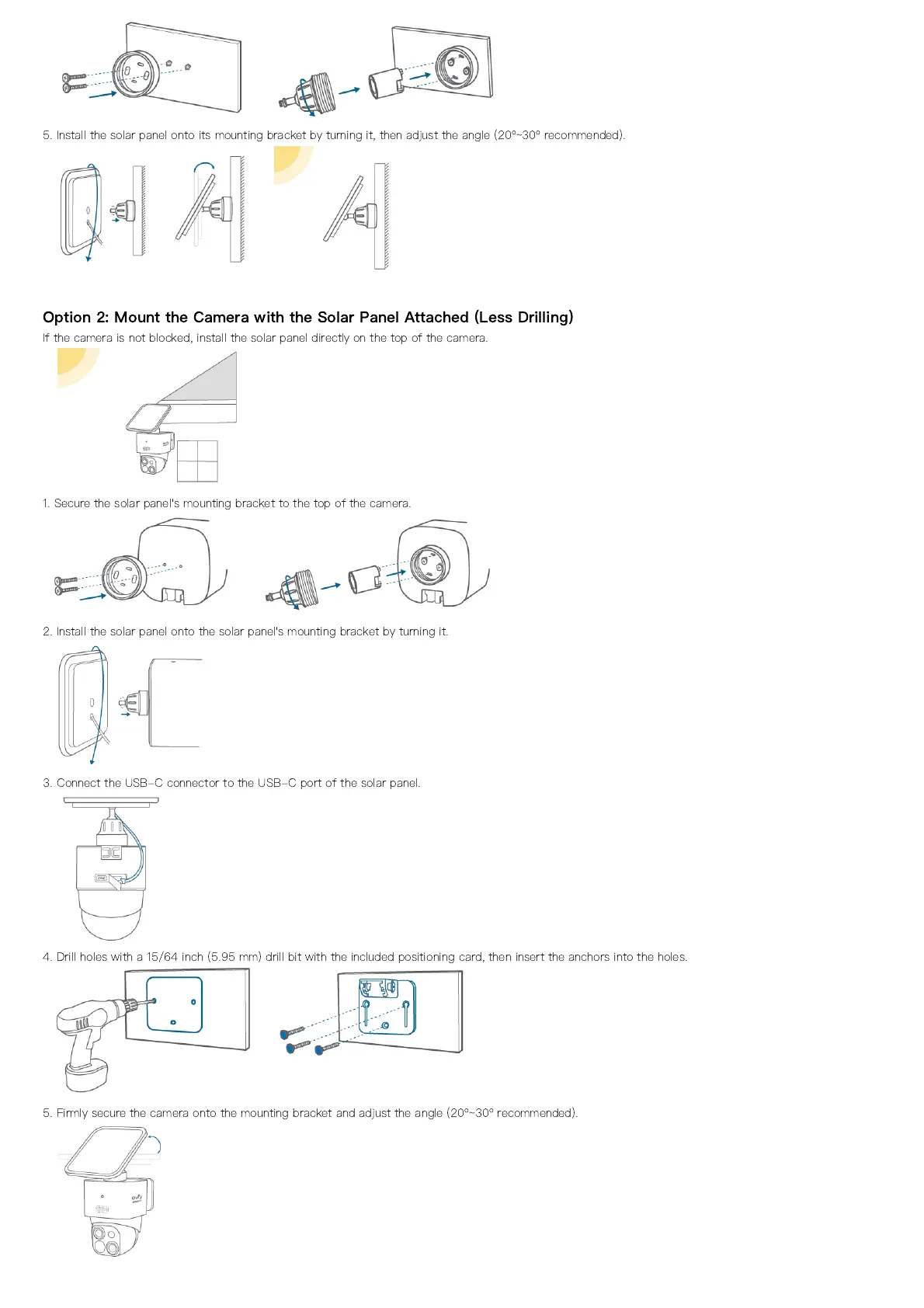

5. Install the solar panel onto its mounting bracket by turning it, then adjust the angle (20º~30º recommended).
Option 2: Mount the Camera with the Solar Panel Attached (Less Drilling)
If the camera is not blocked, install the solar panel directly on the top of the camera.
1. Secure the solar panel's mounting bracket to the top of the camera.
2. Install the solar panel onto the solar panel's mounting bracket by turning it.
3. Connect the USB-C connector to the USB-C port of the solar panel.
4. Drill holes with a 15/64 inch (5.95 mm) drill bit with the included positioning card, then insert the anchors into the holes.
5. Firmly secure the camera onto the mounting bracket and adjust the angle (20º~30º recommended).
