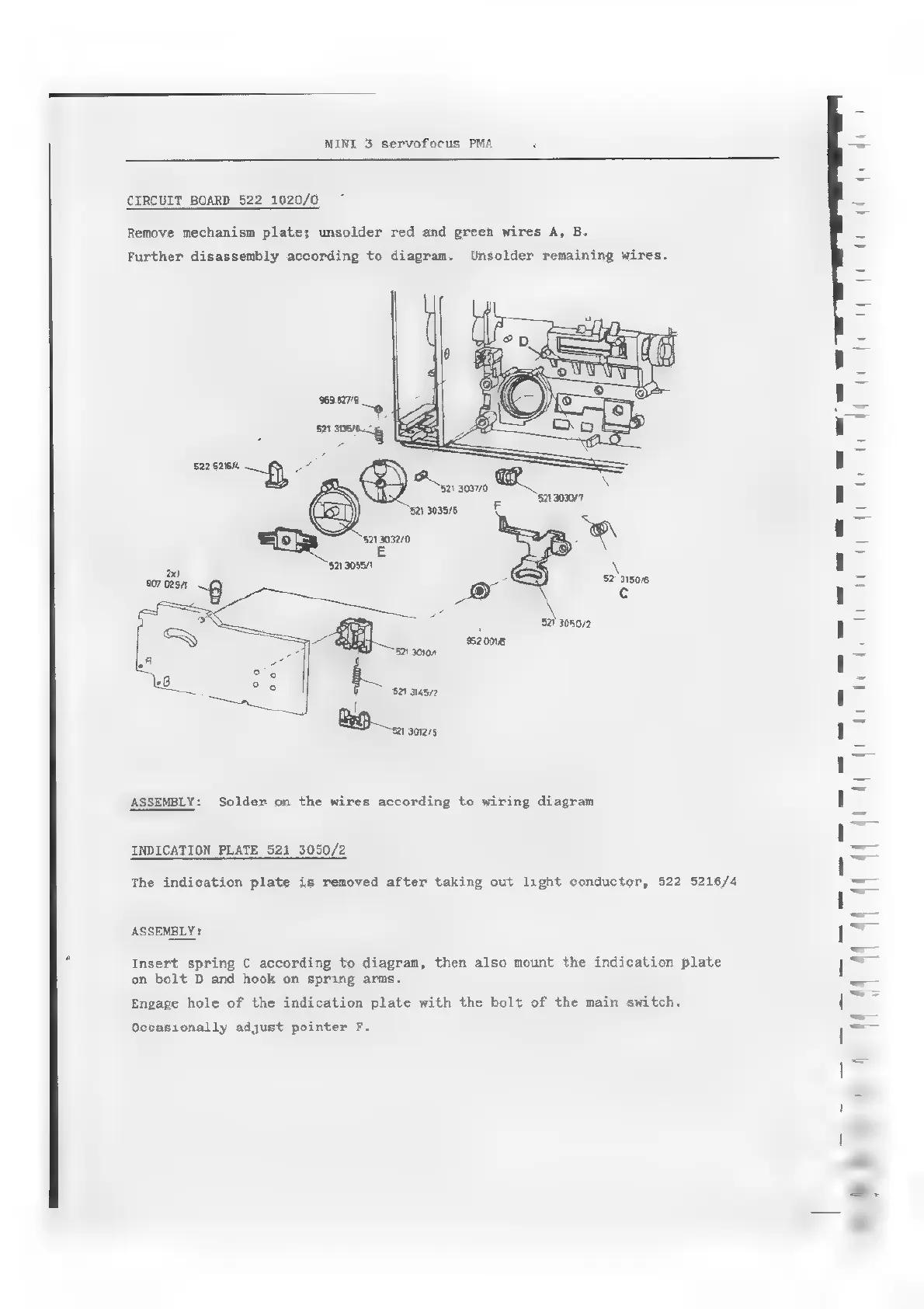

Eumig MINI 3 SERVOFOCUS - CIRCUIT BOARD 522 1020;0; Assembly; INDICATION PLATE 521 3050;2

MINI
3
servofocus
PMA
.
Sa
CIRCUIT
BOARD
522
1020/0
Remove mechanism plate; unsolder red and green wires A, B.
Further disassembly according to diagram. Unsolder remaining wires.
6982719
2
=
80 319/0.7¢
2?
i
—_——
=
Q*. 3037/0 co Xs! of
z 521 3030/7
"521 3035/6
‘821 3032/0
E
ASSEMBLY: Solder on the wires according to wiring diagram
INDICATION PLATE 521 3050/2
The indication plate is removed after taking out light conductor, 522 5216/4
ASSEMBLY:
Insert spring C according to diagram, then also mount the indication plate
on bolt D and hook on spring arms.
fi if Add ge dt Af
Engage hole of the indication plate with the bolt of the main switch.
Occasionally adjust pointer F. |
