Eumig MINI 3 SERVOFOCUS - CLAW MECHANISM 535 1400;2; Adjustments

NANA a lal
A ty
ny
MINI 3 servofocus PMA

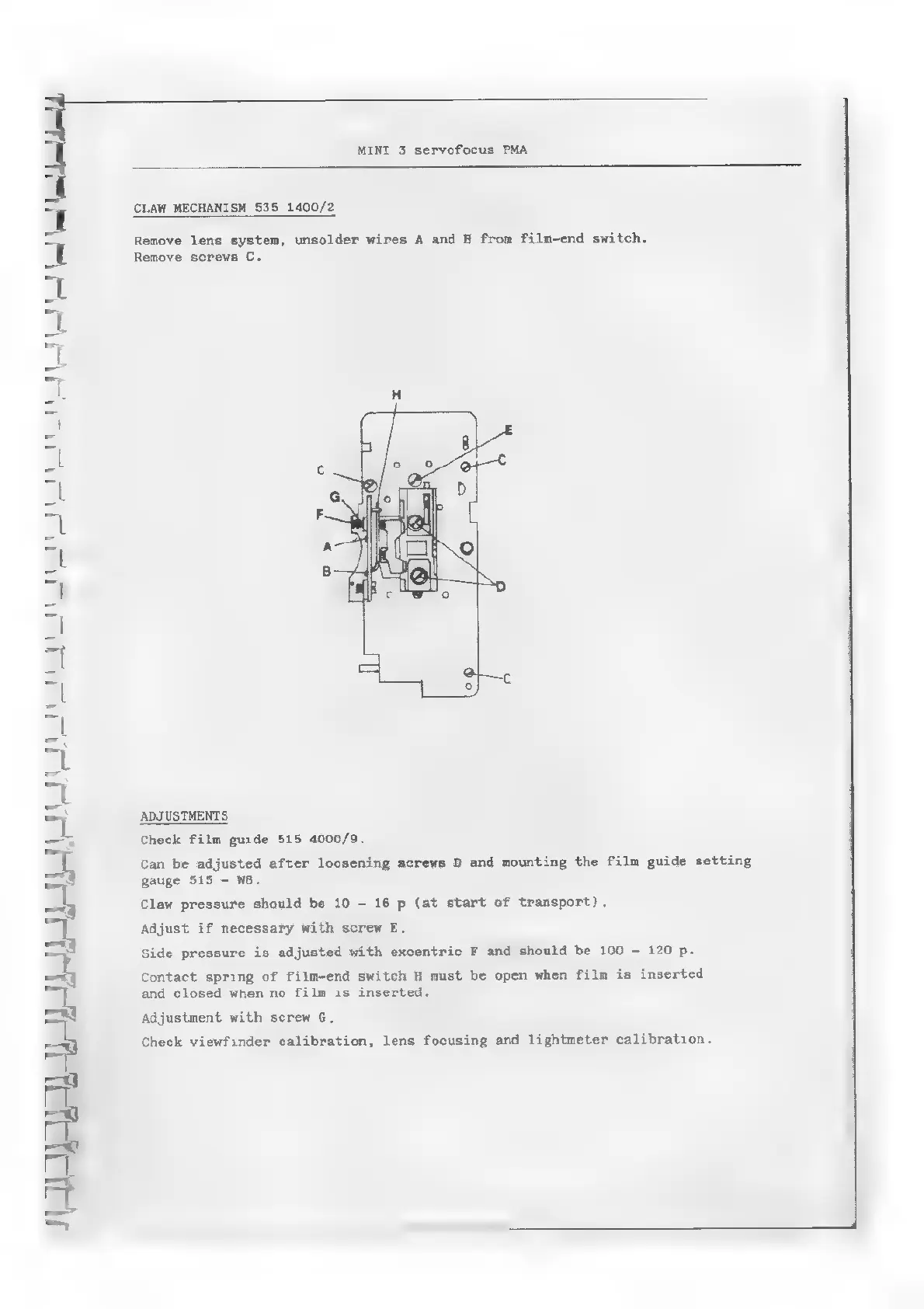

CLAW MECHANISM 535 1400/2
Remove lens system, unsolder wires A and B from film-end switch.
Remove screws C.
ADJUSTMENTS
Check film guide 515 4000/9.
can
be
adjusted
after
loosening
screws
D
and
mounting
the
film
guide
setting
gauge
515
-
WB.
Claw pressure should be 10 - 16 p (at start of transport) .
Adjust if necessary with screw E.
Side
pressure
is
adjusted
with
excentric
F
and
should
be
100
-
120
p.
Contact
spring
of
film-end
switch
H
must
be
open
when film
is
inserted
and
closed
when
no
film
is
inserted.
Adjustment with screw G.
Check viewfinder calibration, lens focusing and lightmeter calibration.
