Eumig MINI 3 SERVOFOCUS - MIRROR HOLDERS; Mirror Holder 2 Operations; Mirror Holder 515 2704;2 Operations

| Vins swwwuvw 1}
1\
Soe
Je hs
Nay
MINI 3 servofocus PMA
MIRROR
HOLDER
2
515
4605/0,
MIRROR
HOLDER
515
2704/2

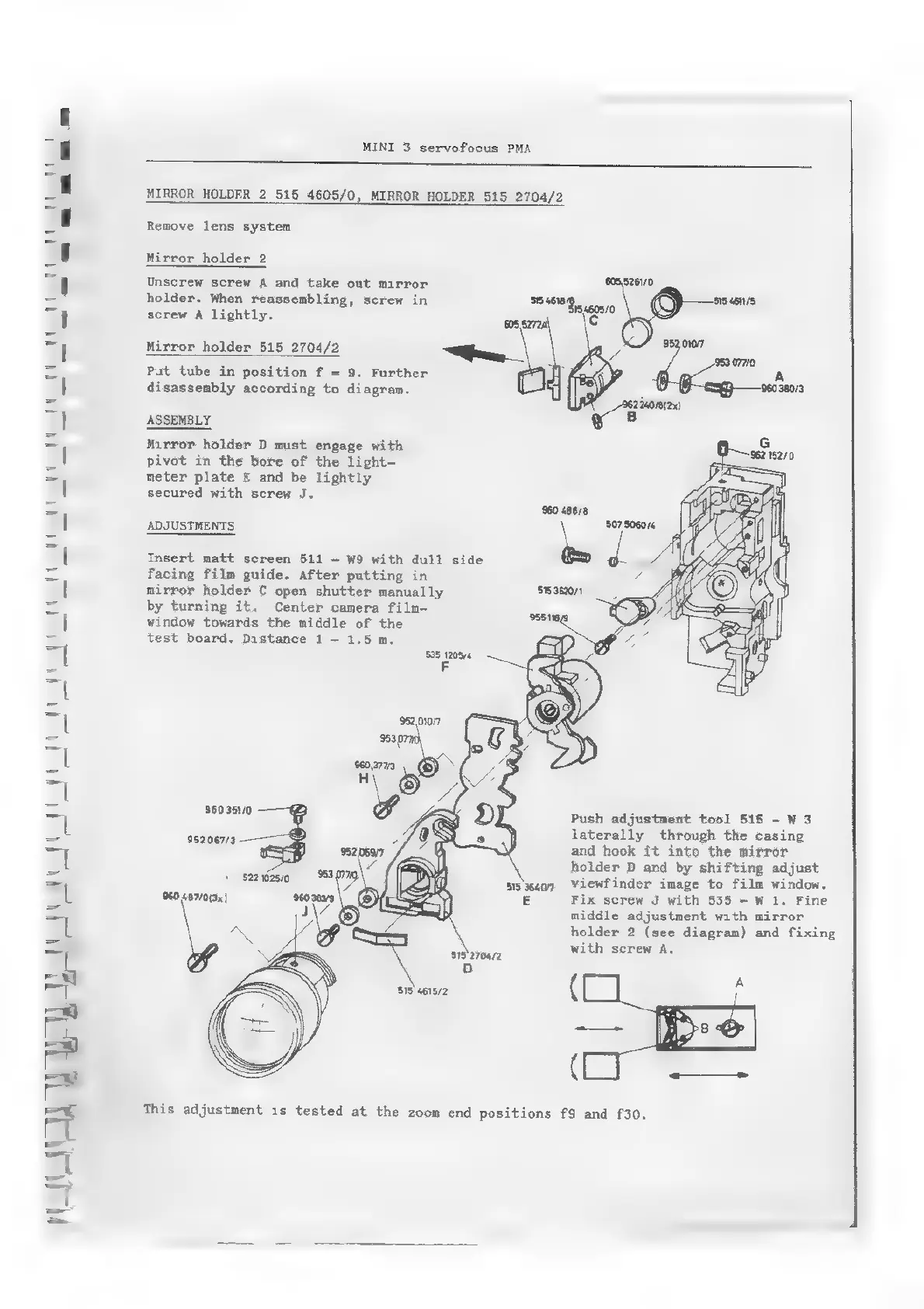

Remove lens system
Mirror holder 2
Unscrew screw A and take out mirror
holder. When reassembling, screw in
screw A lightly.
Mirror holder 515 2704/2
Put tube in position f = 9. Further
disassembly according to diagram.
ASSEMBLY
Mirror holder D must engage with
pivot in the bore of the light-
meter plate E and be lightly
secured with screw J.
ADJUSTMENTS
Insert matt screen 511 - W9 with dull side
facing film guide. after putting in
mirror holder C open shutter manually
by turning it. Center camera film-
window towards the middle of the
test board, Distance 1 - 1.5 m.
se!
Push
adjustment
tool
515
-
W
3
laterally through the casing
952 059/7 and hook it into the mirror
# holder D and by shifting adjust
sssscon Viewfinder image to film window.
3 Fix screw J with 535 - W 1. Fine
middle adjustment with mirror
holder 2 (sec diagram) and fixing
ai oe HG, Gey
’
515! 4615/2
952067/3
© szaviasro|
960.467/0(3%)
s6ozeve
|
(6)
=o)
i ae
This
adjustment
is
tested
at
the
zoom
end
positions
f9
and
f30.
