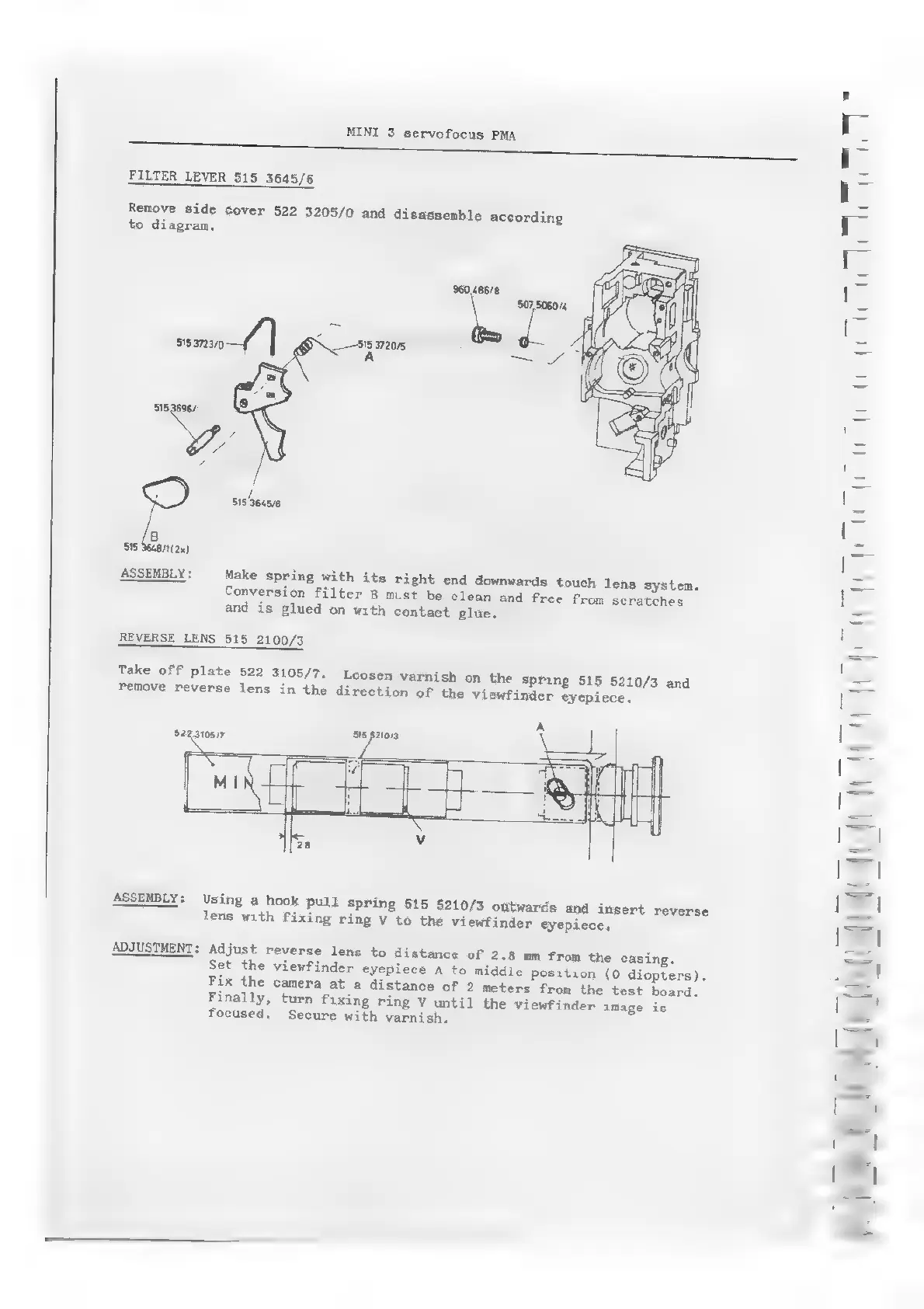

Eumig MINI 3 SERVOFOCUS - FILTER LEVER 515 3645;6; Assembly; REVERSE LENS 515 2100;3; Adjustment

MINI
3
servofocus
PMA
FILTER
LEVER
515
3645/6
5545/6
Remove
side
cover
522
3205/0
and
disassemble
according
to
diagram.
960,486/8
B
515 3648/1(2x)
ASSEMBLY:
Make
spring
with
its
right
end
downwards
touch
lens
system.
=
Conversion
filter
B
must
be
clean
and
free
from
scratches
and
is
glued
on
with
contact
glue.
REVERSE
LENS
515
2100/3
mR
LENS
515
2100/3
Take
off
plate
522
3105/7.
Loosen
varnish
on
the
spring
515
5210/3
and
remove
reverse
lens
in
the
direction
of
the
viewfinder
eyepiece.
8223108/7
iz
MI
ASSEMBLY:
Using
a
hook
pull
spring
615
5210/3
outwards
and
insert
reverse
lens
with
fixing
ring
V
to
the
viewfinder
eyepiece.
ADJUSTMENT:
Adjust
reverse
lens
to
distance
of
2.8
mm
from
the
casing.
~~
~*~
"Set
the
viewfinder
eyapieae
A
to
agile
position
(0
diopters).
Fix
the
camera
at
a
distance
of
2
meters
from
the
test
board.
Finally,
turn
fixing
ring
V
until
the
viewfinder
is
focused.
Secure
with
varnish.
