Film Panel Installation

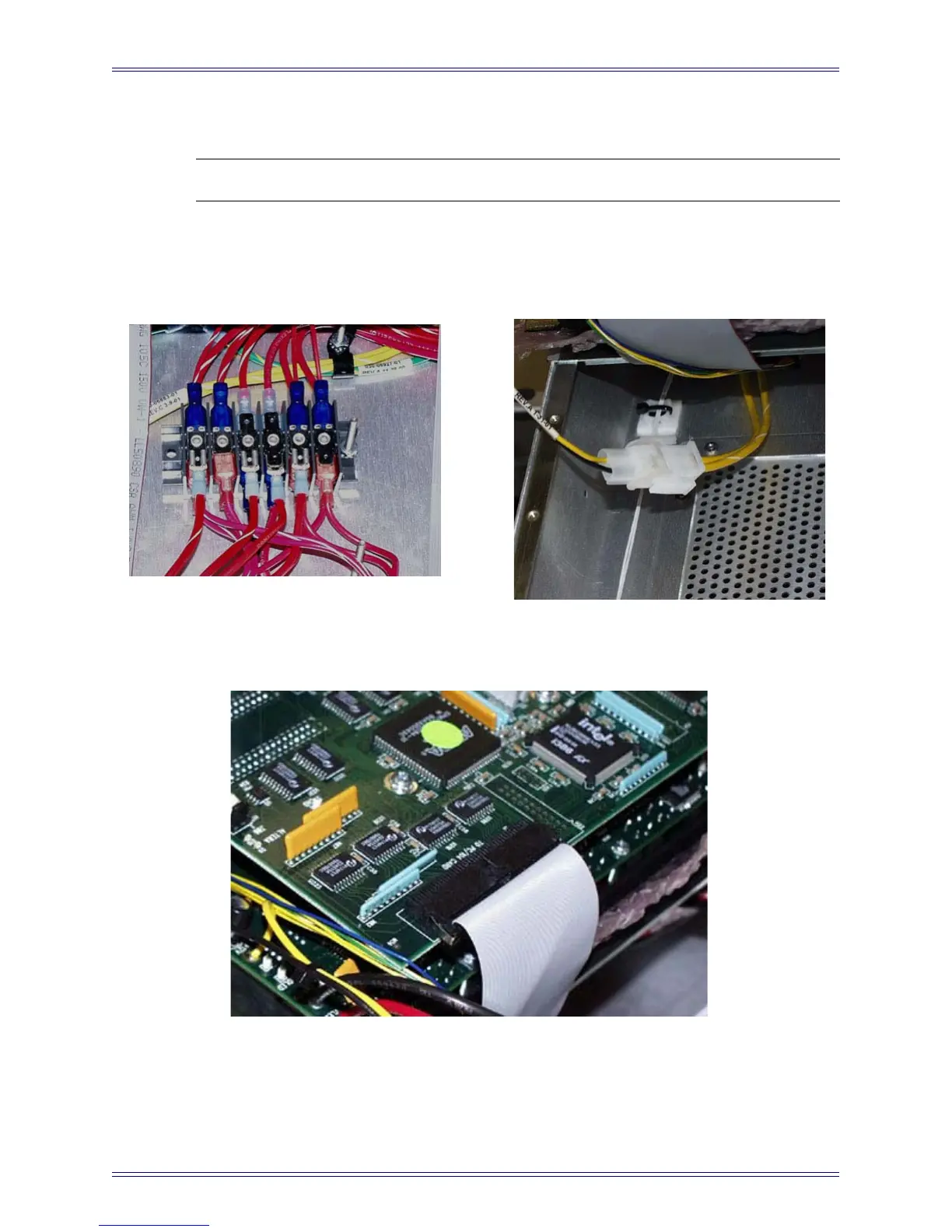

NOTE: Each instruction pertains to the picture beneath its text.
Connect the 5-V power cables (red) from the Film Panel to the header block on the bot-
tom of the module. Be sure to maintain correct polarity (red/white stripe is negative).
Connect the 12-V power connection to the mating connector coming from the PSU.
Connect the PC104 cable to H26 on the Film Panels 386 board.
