Eureka 4464AT - Use

7
Clean
Under
Use
Handle
Release
3

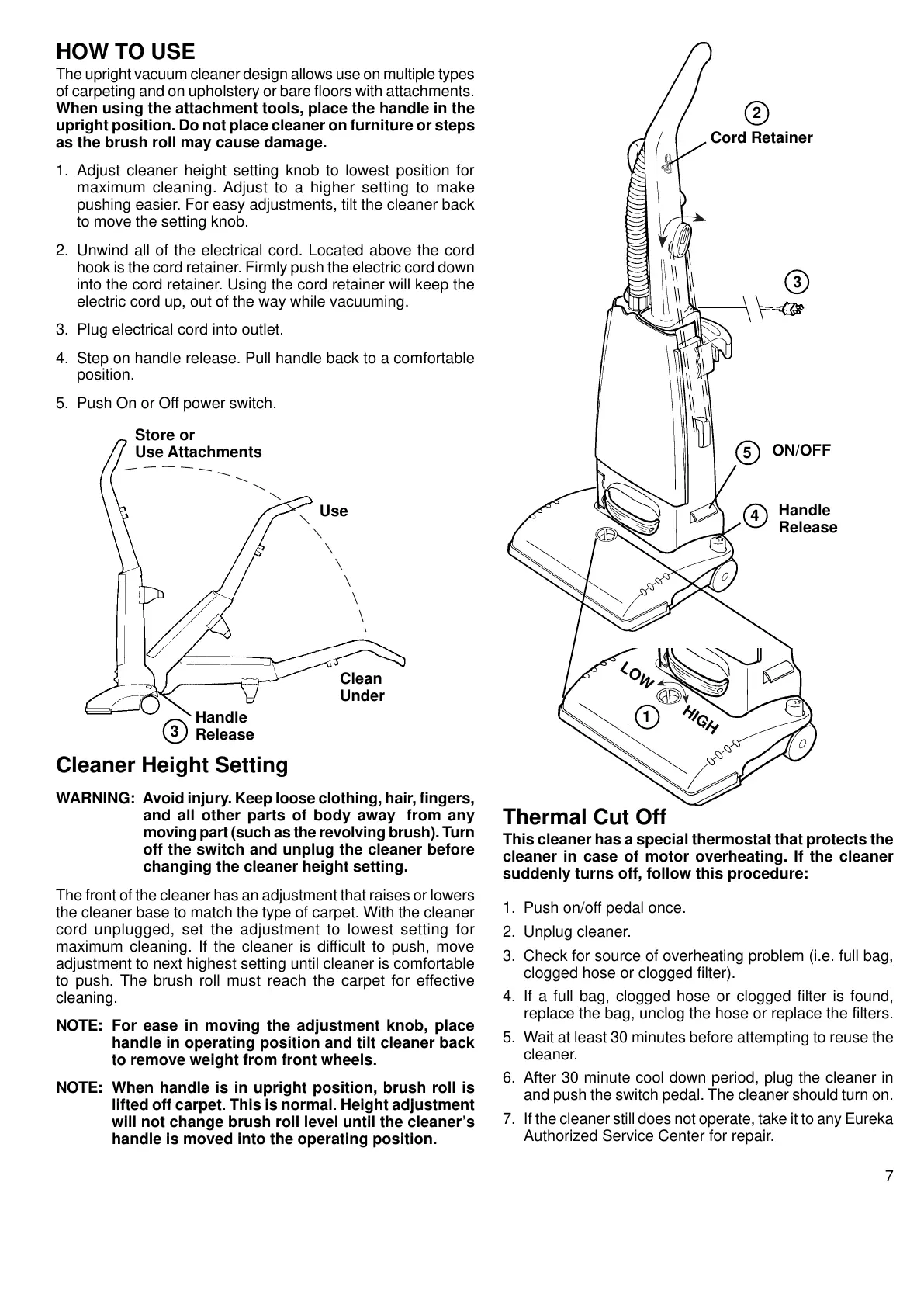

HOW TO USE
The upright vacuum cleaner design allows use on multiple types
of carpeting and on upholstery or bare floors with attachments.
When using the attachment tools, place the handle in the
upright position. Do not place cleaner on furniture or steps
as the brush roll may cause damage.
1. Adjust cleaner height setting knob to lowest position for
maximum cleaning. Adjust to a higher setting to make
pushing easier. For easy adjustments, tilt the cleaner back
to move the setting knob.
2. Unwind all of the electrical cord. Located above the cord
hook is the cord retainer. Firmly push the electric cord down
into the cord retainer. Using the cord retainer will keep the
electric cord up, out of the way while vacuuming.
3. Plug electrical cord into outlet.
4. Step on handle release. Pull handle back to a comfortable
position.
5. Push On or Off power switch.
Store or
Use Attachments
LOW HIGH
4
Handle
Release
5
ON/OFF
1
Thermal Cut Off
This cleaner has a special thermostat that protects the
cleaner in case of motor overheating. If the cleaner
suddenly turns off, follow this procedure:
1. Push on/off pedal once.
2. Unplug cleaner.
3. Check for source of overheating problem (i.e. full bag,
clogged hose or clogged filter).
4. If a full bag, clogged hose or clogged filter is found,
replace the bag, unclog the hose or replace the filters.
5. Wait at least 30 minutes before attempting to reuse the
cleaner.
6. After 30 minute cool down period, plug the cleaner in
and push the switch pedal. The cleaner should turn on.
7. If the cleaner still does not operate, take it to any Eureka
Authorized Service Center for repair.
3
2
Cord Retainer
Cleaner Height Setting
WARNING: Avoid injury. Keep loose clothing, hair, fingers,
and all other parts of body away from any
moving part (such as the revolving brush). Turn
off the switch and unplug the cleaner before
changing the cleaner height setting.
The front of the cleaner has an adjustment that raises or lowers
the cleaner base to match the type of carpet. With the cleaner
cord unplugged, set the adjustment to lowest setting for
maximum cleaning. If the cleaner is difficult to push, move
adjustment to next highest setting until cleaner is comfortable
to push. The brush roll must reach the carpet for effective
cleaning.
NOTE: For ease in moving the adjustment knob, place
handle in operating position and tilt cleaner back
to remove weight from front wheels.
NOTE: When handle is in upright position, brush roll is
lifted off carpet. This is normal. Height adjustment
will not change brush roll level until the cleaner’s
handle is moved into the operating position.
