- After 48 hours, Turn the On/Off switch (I/O) on the right of the control panel to the On position (I).
The green cold circuit On indicator light will light up if the temperature is set at below ambient temperature
(unless your cabinet is a
single-temperature Veillith•que and located in an area where the temperature is below 12¡C).
In the event of an anomaly, refer to Section 8.
- 7 -
5 - Putting into service - Temperature settings
INSTALLING A UNIT WITH A TECHNICAL DOOR
1) Level the unit inside the cabinet.
2) Open the door of the unit at a 90¡ angle.
3) Fix the facing of the kitchen cabinet on the door of the unit
(8 screws included).
4) Be sure the gasket seals properly.

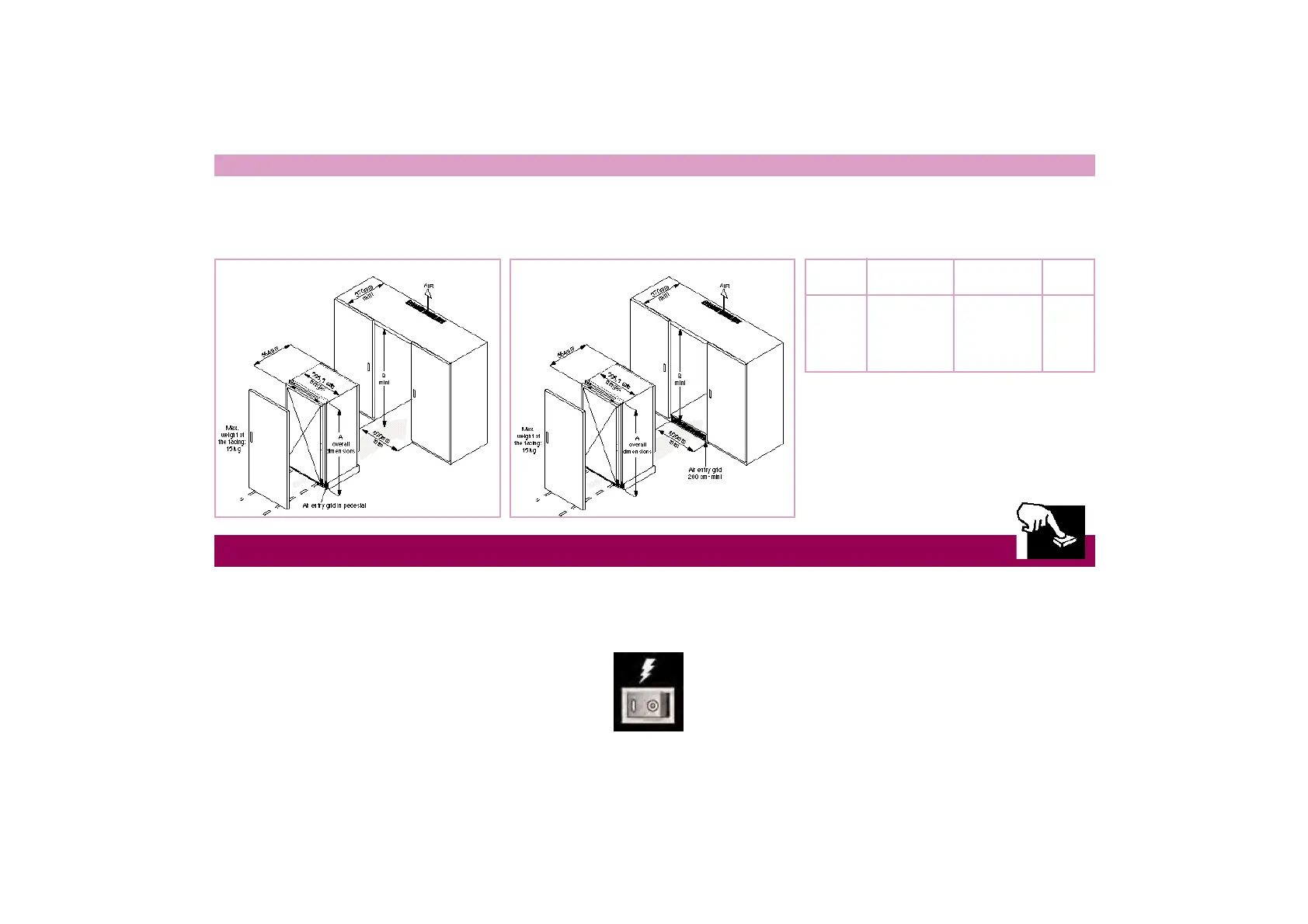

1- Drawing for unit placed on the floor
Models
056
156
256
B mini
(mm)
841
1241
1801
A mini (mm)
legs screwed in
836
1236
1796
A mini (mm)
legs unscrewed
852
1252
1812
2- Drawing for unit placed in a cabinet
Nota :
A = Body + Hinge (25mm) + Pedestal (92.5mm) + Legs (19 ˆ 35mm).
