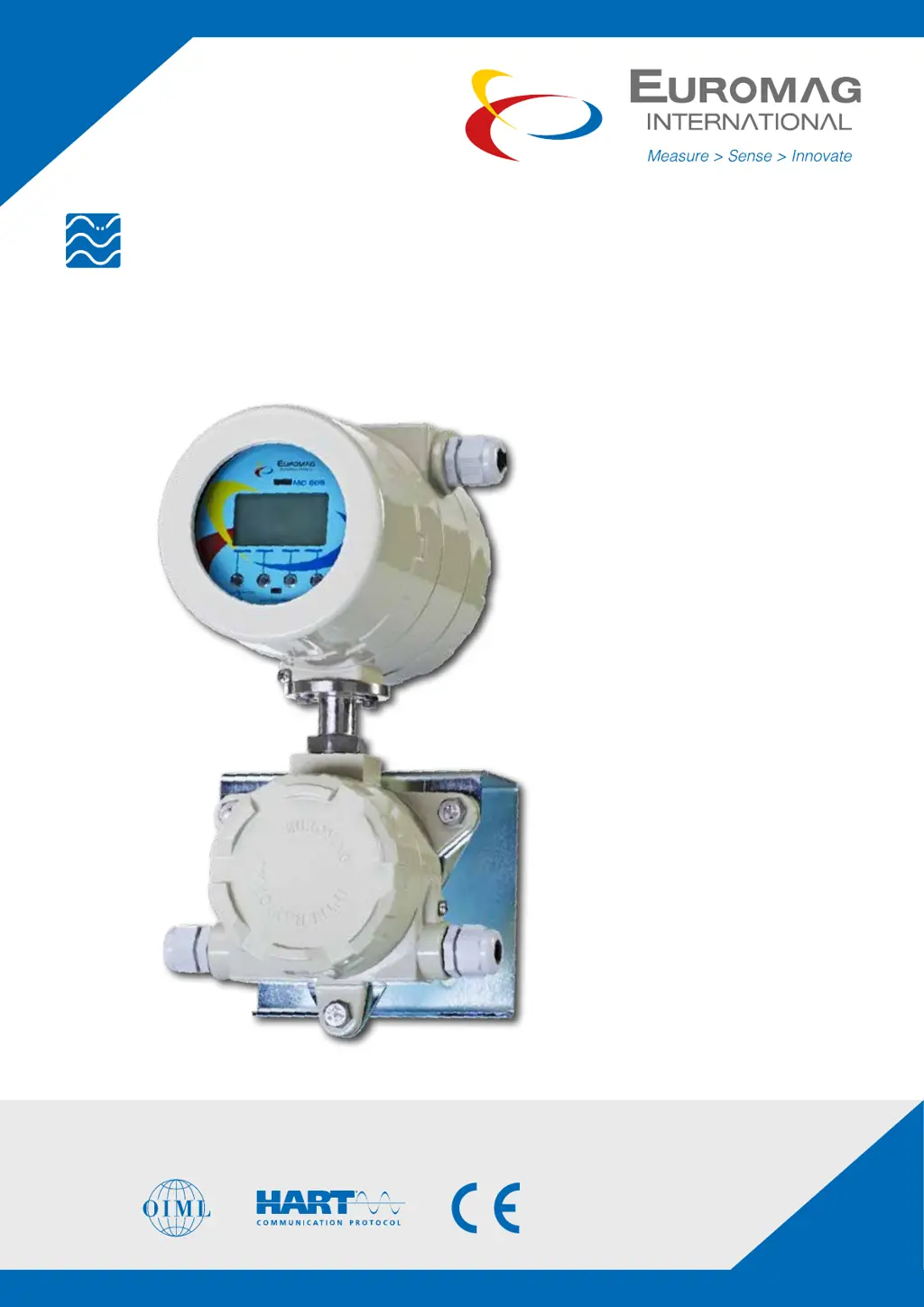

Euromag MC608A - User Manual

Other manuals for Euromag MC608A

Installation Manual68 pages

Questions and Answers

C
Curtis DiazAug 16, 2025
Why does Euromag MC608A Media Converter show a flow rate when there is no flow?
- S
  Stephanie GonzalezAug 16, 2025
  The Euromag Media Converter might display a flow rate even without actual flow due to several reasons: incorrect or missing grounding, which requires checking the sensor and liquid grounding; lack of liquid in the sensor downstream, necessitating a check to ensure the sensor is full; incompatible or low electric conductivity of the liquid, suggesting electrode or sensor replacement; or incorrect calibration, which can be resolved by performing a manual zero calibration via the menu.
J
Jennifer BallAug 19, 2025
What to do if the screen is turned off on Euromag Media Converter?
- R
  robertmoralesAug 19, 2025
  If the screen of your Euromag Media Converter is off, first check the current supply voltage on the converter plate to ensure it is correct. If you have the MC608B version, you should also check the battery life and replace the battery pack if necessary.
R
randy70Aug 21, 2025
Why is the flow reading unstable on my Euromag MC608A?
- B
  Barbara LyonsAug 21, 2025
  Unstable flow readings on your Euromag Media Converter can be caused by hydraulic or electric failures. Hydraulic issues include air bubbles or unstable flow (vortex motion) due to non-compliance with minimum required linear distances upstream and downstream of the device. Electric issues can stem from missing or improperly performed grounding, oxidized nodes, or a noisy ground point. Try changing the grounding point, preferably creating a new one exclusively for the meter. Also, check for the presence and correct installation of vents on the pipe to avoid the presence of air in the pipe. If the liquid is stable and the pipe is full, the issue is most likely electrical noise.
K
kylehillAug 25, 2025
What to do if Euromag Media Converter shows [Measure error]?
- D
  danielleboyerAug 26, 2025
  If your Euromag Media Converter displays a [Measure error], it may be due to several reasons: an empty pipe, air bubbles in the liquid, incorrect grounding, or an incorrect or damaged electrical connection. Check if the sensor has been installed correctly and if there is air inside the pipe. Also, ensure that the sensor and converter are properly grounded.
L
Lisa WarrenAug 27, 2025
Why does Euromag MC608A Media Converter show [Empty pipe] message?
- S
  Sophia BlakeAug 28, 2025
  If your Euromag Media Converter shows an [Empty pipe] message, it indicates an empty pipe detection. If the message persists even with a full pipe for more than a few minutes, check the electrical connections of the separation cables (for remote versions). You may also need to adjust the empty pipe threshold.
S
Sandra RyanAug 30, 2025
What causes [Interrupted excitation] error on Euromag MC608A Media Converter?
- M
  Michael FowlerAug 30, 2025
  An [Interrupted excitation] error on the Euromag Media Converter can be caused by an incorrect or damaged electrical connection to the sensor/converter, a damaged sensor (possible seepage inside), or a damaged converter. To check the electrical continuity of the sensor coil circuit, refer to the procedure “DI10D_SENSORTEST” available in the download area of the website www.euromag.com.
M
marilynmoodySep 3, 2025
What to do if Euromag MC608A shows [Pulses accumulation]?
- N
  Nichole GordonSep 3, 2025
  If your Euromag Media Converter displays a [Pulses accumulation] message, it is recommended to change the settings of the pulse volume and duration.
L
Larry MillerSep 6, 2025
Why does external pulse totalizer show different results than expected on Euromag Media Converter?
- A
  Amy DennisSep 6, 2025
  If the external pulse totalizer shows unexpected results with the Euromag Media Converter, it may be due to a pulse output configuration error. Check the conditions in paragraph 5.3.4 - menu – Pulse output. Test the output with the external flow simulator and the converter-pulse counter system, simulating a flow rate through System > Simulation.
S
Seth RamseySep 8, 2025
What to do if Euromag Media Converter shows [Power supply voltage]?
- A
  Ashley WilliamsSep 9, 2025
  If your Euromag Media Converter displays a [Power supply voltage] message, it indicates that the supply voltage is out of the operating range. Check the power supply network.
J
Jessica MartinezSep 12, 2025
What to do if Euromag Media Converter shows [Low GSM signal]?
- A
  Alexander ClaySep 12, 2025
  If your Euromag Media Converter displays a [Low GSM signal] message, it indicates a low or missing GSM signal. Check the antenna connection.

Summary

Manual Symbols and Product Introduction

Symbol Legend

Defines graphic signs and colors used for highlighting important information in the manual.

Introduction, Product Description, and Applications

Covers product overview, operating principle, versions, installation types, and typical applications.

Technical Specifications of MC608

3.1 Overall Dimensions

Dimensional drawings for different MC608 converter models.

3.2 Certificates and Approvals

Compliance with EU directives, standards, and certifications.

3.3 General Technical Features

Table of features for all MC608 versions: casing, power, consumption, I/O.

3.4 Accuracy and Reference Conditions

Specifies accuracy classes and calibration reference conditions.

MC608 Installation and Configuration

4.1 Moving the MC608 Converter

Guidelines for safely moving the MC608 converter, with specific cautions.

4.2 Converter Positioning and Installation

Instructions for positioning and installing the converter in COMPACT and REMOTE versions.

4.3 Electrical Connection Procedures

Detailed guide for wiring the MC608 converter: power, sensor, and I/O.

5 Converter Programming

Describes configuration methods and details the MC608 menu structure and settings.

MC608 Operation, Maintenance, and Troubleshooting

6 Maintenance

Routine checks for device integrity: cable glands, gaskets, and seals.

7 Troubleshooting

Lists common converter issues, their causes, and steps to restore correct operation.

7.2 Alarm Messages and Solutions

Interprets alarm icons, potential causes, and recommended actions for alarms.

MC608 Service and Product Disposal

8 Sending the Converter to Manufacturer

Procedure for returning the converter for service, including the required request form.

9 Product Disposal

Guidelines for WEEE compliance and proper disposal of the MC608 converter.

Euromag MC608A Specifications

General

Category	Media Converter
Model	MC608A
Connector Type	SC
Wavelength	1310nm
Transmission Distance	20km
Fiber Mode	Single Mode
RJ45 Port	1
Power Supply	5V DC
Humidity	5%
Data Rate	10/100/1000Mbps
