9. Installation
9.1 Selection of installation equipment

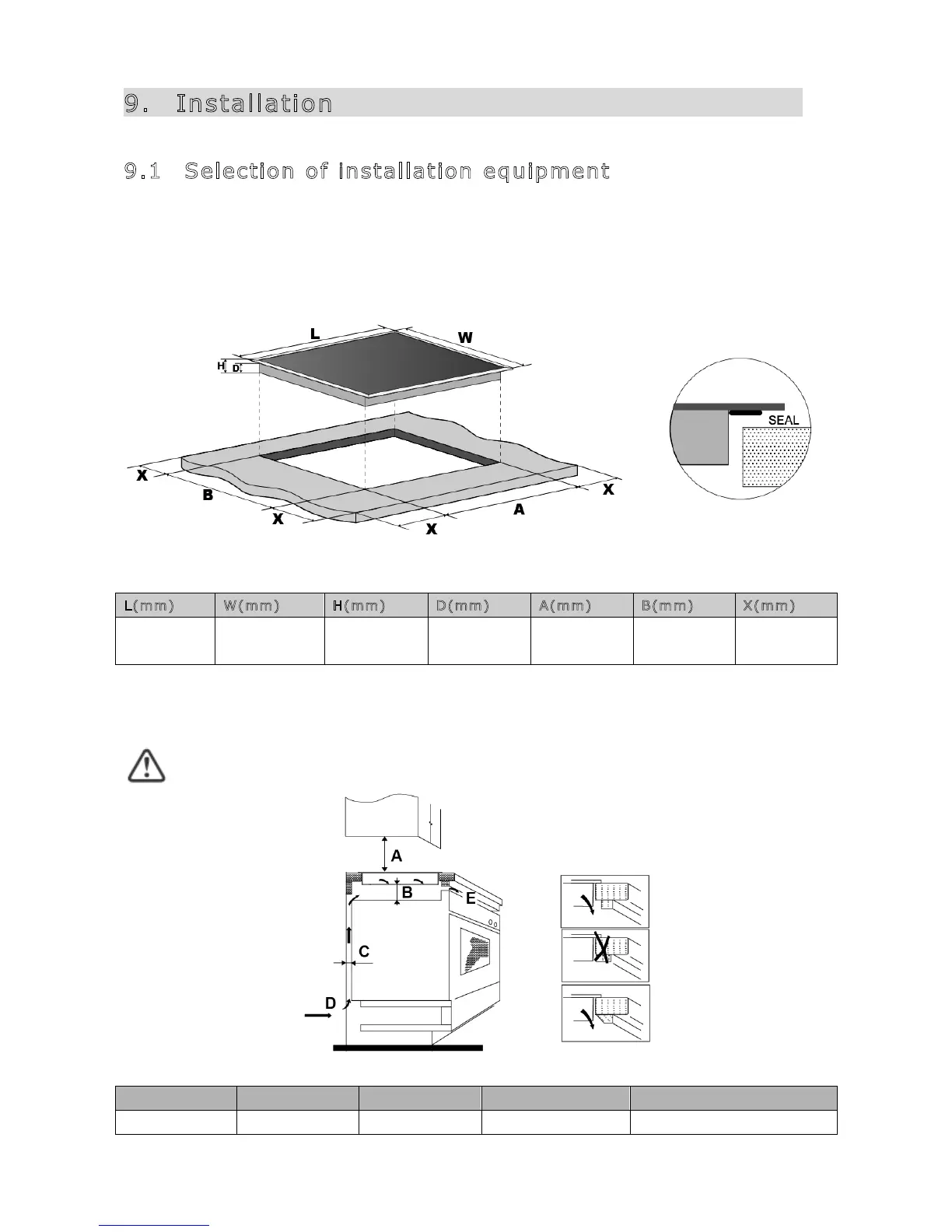

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
590 520 60 56 560+4
+1
490+4
+1
50 mini
Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the induction cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760 mm.
