Screw Hole
of Rail Support
NOTE:
Refer to Wiring Loading
Table for electrical loading
and correct size of wire
conductor.

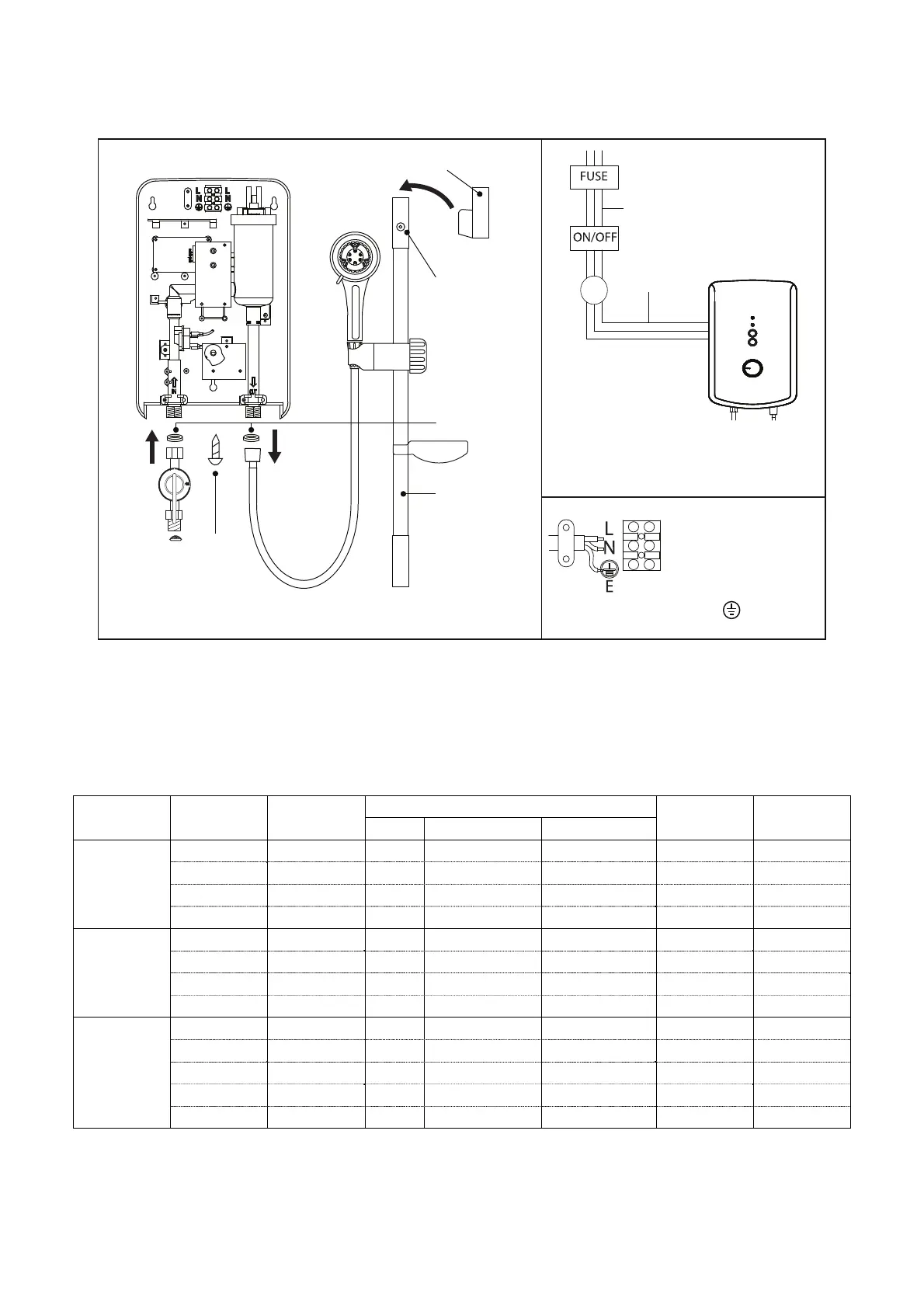

Fig. 1
Fig. 2
Fig. 3
Rubber Washers
Slider Rail Set
Brown or Red = Live (L)
Fuse Distributor Board
Miniature Circuit Breaker (MCB)
Double PVC cable over 2.5mm
2
ON/OFF Double Pole Switch
Cable
Green or Green/Yellow
= Earth ( )
Blue or Black = Neutral (N)
Screw
INLET OUTLET
Rail Support Cover
WiringLoadingTable
Voltage(AC) Power(kW) Current(A)
ConductorSize(csa)
On/Off
Switch(A)
Fuse/MCB
(A)
mm
2
ConduitCable FlexibleCable
240V~
50/60Hz
3.3 13.8 2.5 7/0.67mm 50/0.25mm 20 16
3.6 15.0 2.5 7/0.67mm 50/0.25mm 20 20
4.0 16.7 2.5 7/0.67mm 50/0.25mm 20 20
5.0 20.8 4.0 7/0.85mm 56/0.30mm 32 32
230V~
50/60Hz
3.0 13.0 2.5 7/0.67mm 50/0.25mm 20 16
3.3 14.3 2.5 7/0.67mm 50/0.25mm 20 16
4.0 17.4 2.5 7/0.67mm 50/0.25mm 32 20
5.0 21.8 4.0 7/0.85mm 56/0.30mm 32 32
220V~
50/60Hz
2.4 10.9 2.5 7/0.67mm 50/0.25mm 20 16
3.5 15.9 2.5 7/0.67mm 50/0.25mm 20 20
4.5 20.5 2.5 7/0.67mm 50/0.25mm 32 32
5.5 25.0 4.0 7/0.85mm 56/0.30mm 32 32
6.0 27.3 4.0 7/0.85mm 56/0.30mm 32 32
To Next Page
