The resulting solder joint should be shiny and strong. If it is dull or there are
fractures, apply a drop of solder to the soldering iron tip and repeat previous step.
NEVER apply heat directly to the battery terminal.
9

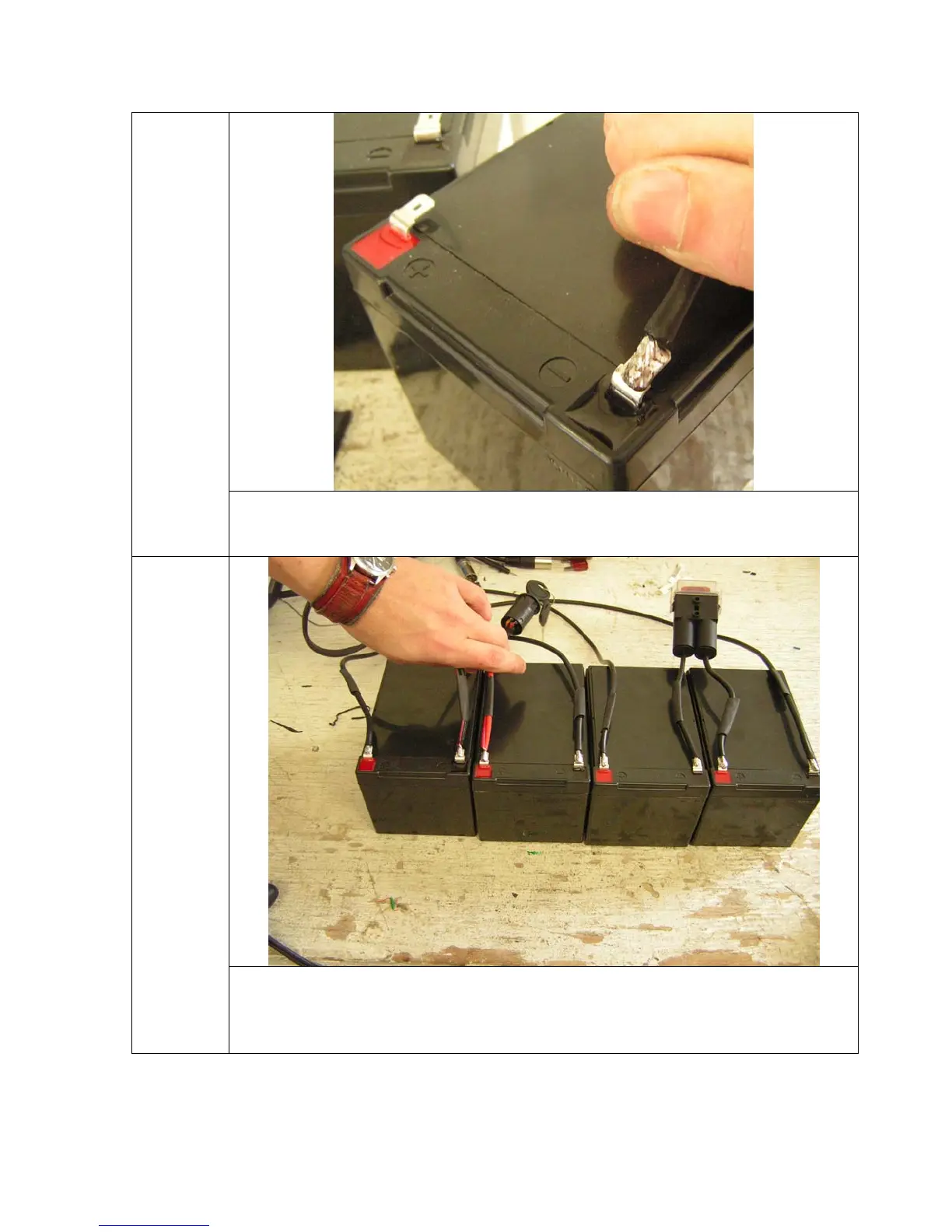

Continue to solder (or use push-on tabs) until your battery pack looks like the
picture above. If you number the battery terminals 1 to 8, here is where they
connect: 1 to 8, 2 to negative (black) side of key switch harness, 3 to positive
(red) side of key switch harness, 4 to 5, 6 to 7
