EvaKool DOWN UNDER Series Service Manual

12
DOWN UNDER SERIES
LED LIGHT: (Part No. LED-DU)
There are 2 x LED lights in the fridge, one on the le hand side and one on the right hand
side, these lights are constantly on as long as there is power supplied to the unit, (even in
the o position).

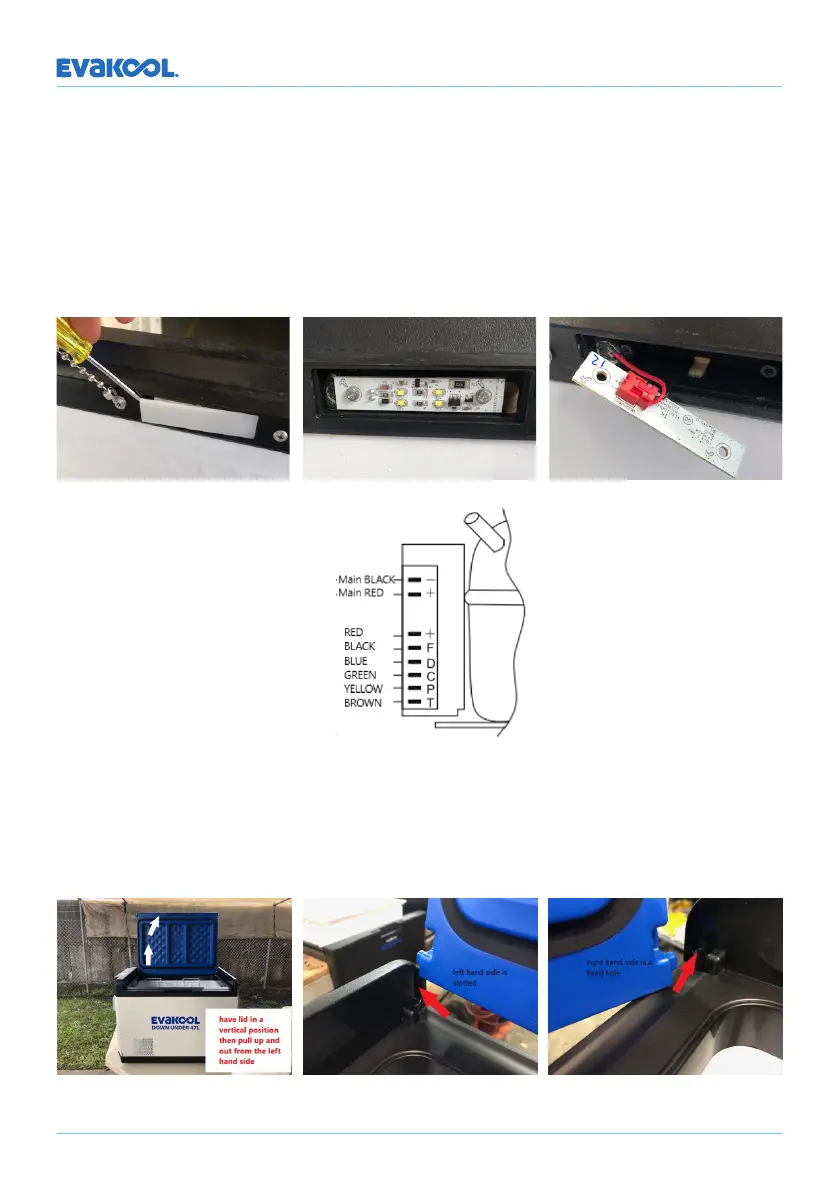

Removal: Lever o the LED cover (Part No: LED-CVR-DU) with a small flat blade screwdriver
as per the photo, un-screw the 2 x small Phillip head screws, remove the PCB, un-plug from
connector and replace with new PCB, reverse the procedure to install.
Le hand side is slotted Right hand side is a fixed holeHave lid in a vertical position, then pull
up and out from the le hand side
CONVERTING THE LID:
The cabinet can be converted to open from the opposite side. To swap the lid over, simply
have the lid in a vertical position and li the lid upright from the le hand side. In the
vertical position, the tab on the lid will come out of the slot in the cabinet, use images
below for demonstration. Reverse the process on the opposite side to refit the lid.
WIRING:
See the illustration here for wire
colors and connections to the
compressor module.
