DOWN UNDER SERIES
7
Main Harness
Emergency Switch
(not used)
Thermistor
LED Light
2. Spare Parts Classification & Service Instructions

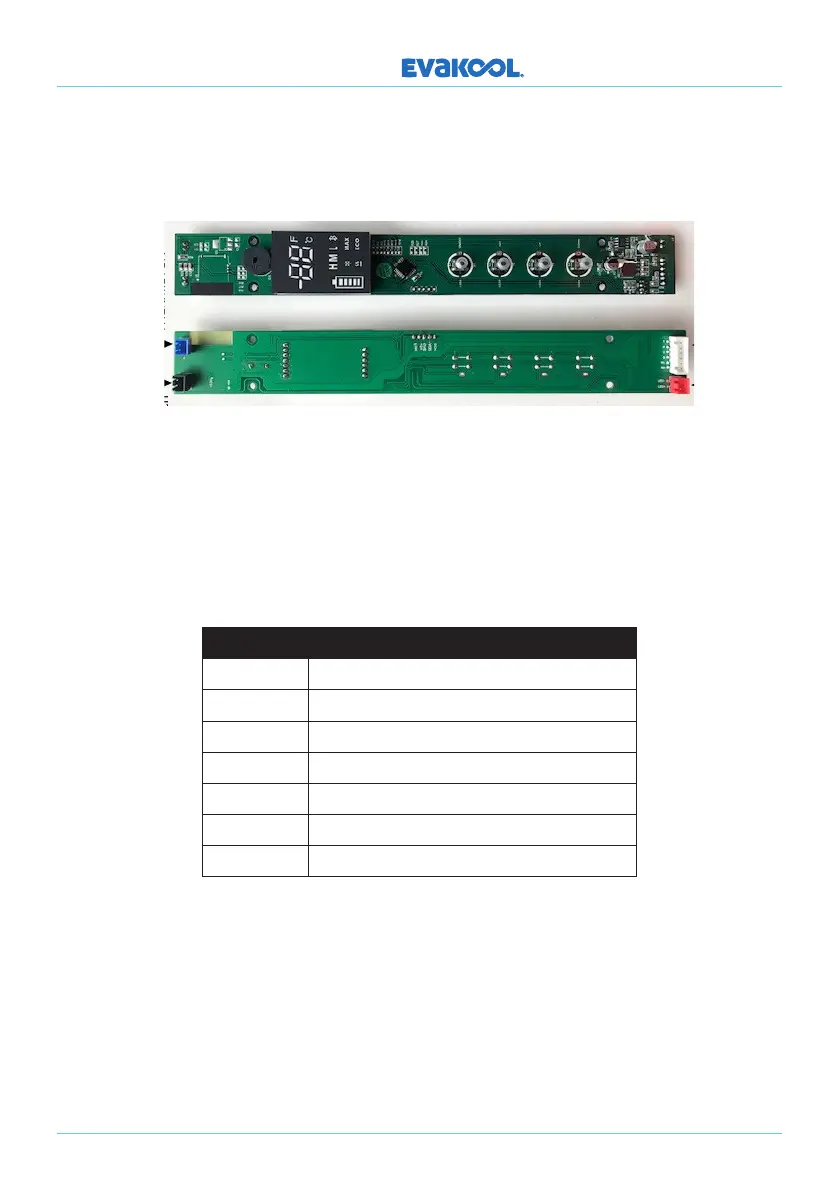

MAIN PCB: (COMP-PBC2.0)
FAULT CODES:
The electronics and compressor are designed and built with its own fault finding system,
which will be displayed on the Main PCB, below is a table of codes relating to faults
displayed.
CODE FA U LT
E1 Battery Protection Failure
E2 Fan Failure
E3 Compressor Start Fault
E4 Min/Max Speed Fault
E5 Overheating Protection
E6 NTC Fault
LL NTC Unplugged
NTC Negative Temperature Coeicient = Thermistor
