EVAPCO PM Series - Field Assembly of External Service Platform and Ladder

9
PM SERIES FORCED DRAFT EVAPORATIVE CONDENSERS
Field Assembly of External Service Platform and Ladder
The external service platform and ladder assemblies are shipped separate from the unit. The platform is partially assembled prior to
instructions below in Figure 15.
SECURE DECK SUPPORT TO
CONNECTION PLATES WITH
5/8” (15.9mm) GRADE 5
HARDWARE
CONNECTION
PLATE
CONNECTION
PLATE
RAILING FITTING
SECURE RAILING FITTING TO
FRONT TOEPLATE USING
5/8” (15.9mm) GRADE 5
HARDWARE
DECK SUPPORT
DETAIL A
DETAIL C
DETAIL D
(IF NEEDED)
A
C
C
D
B
FRONT TOEPLATE
SECURE DIAGONAL SUPPORT
TO DECK SUPPORT USING
5/8” (15.9mm) GRADE 5
HARDWARE
SECURE DIAGONAL SUPPORT TO
CONNECTION PLATE WITH
5/8” (15.9mm) GRADE 5
HARDWARE
NOTE: PLATFORM GRADING NOT SHOWN FOR CLARITY
DECK SUPPORT
DIAGONAL SUPPORT
DIAGONAL
SUPPORT
DETAIL B

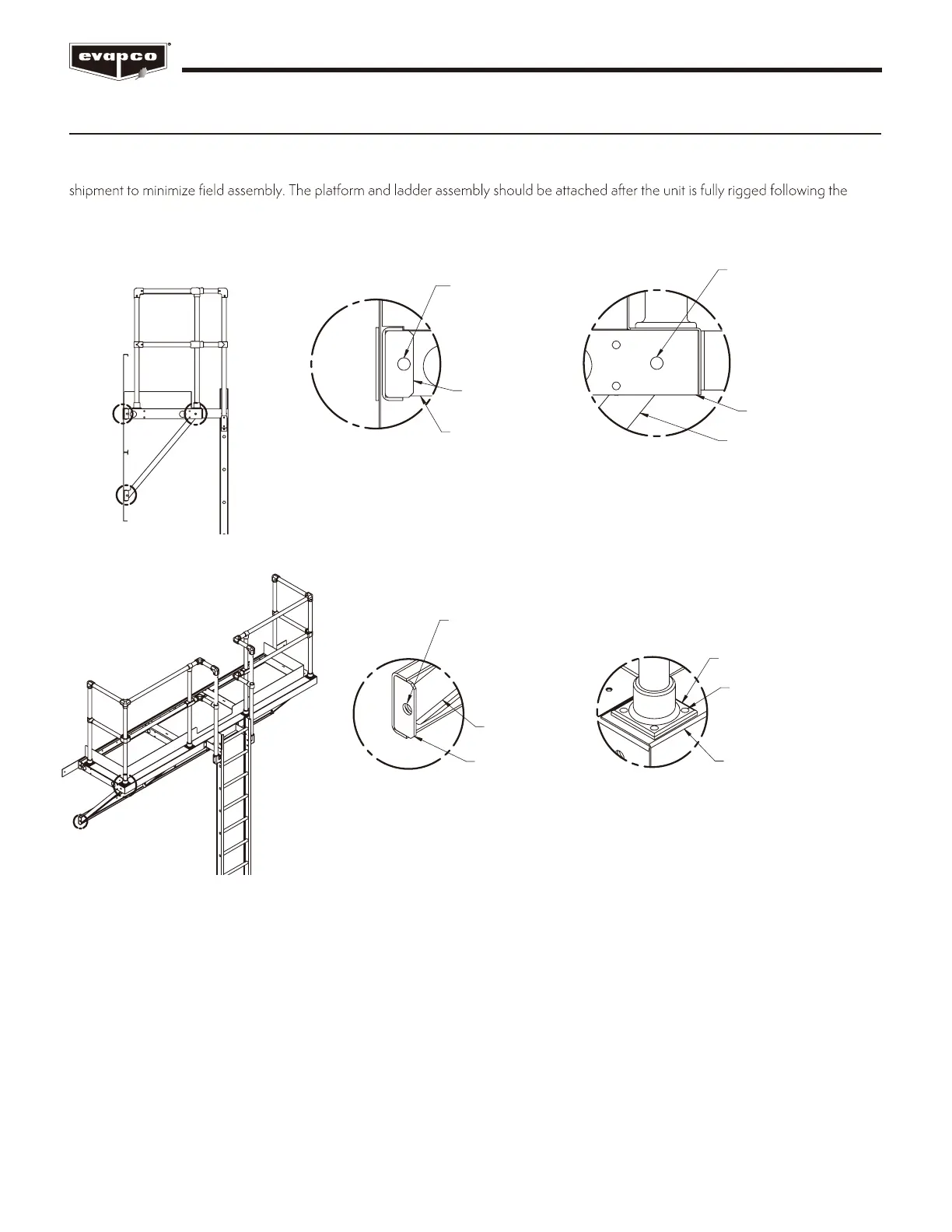

Figure 15 – Field Assembly of External Service Platform and Ladder
